Customized Stainless Steel Wedge Wire Screen Energy Saving 10-4000mm Length
Wedge Wire Mesh ,Vee- Wire Slotted Screen, Vee Wedge Wire Screen Filter Strainer

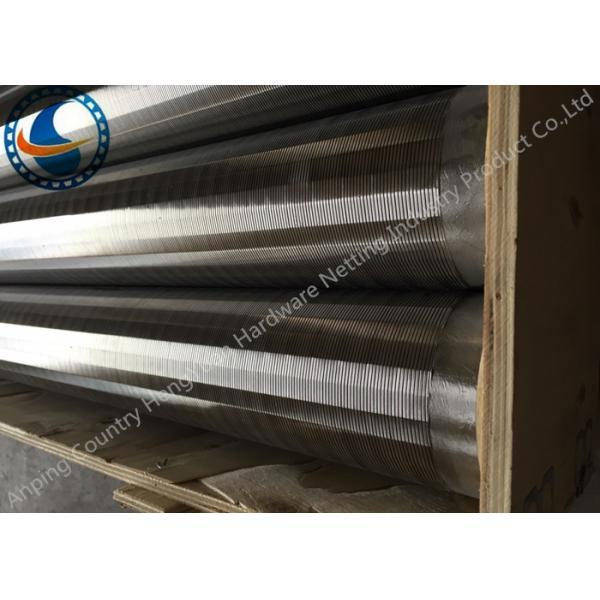

Wedge wire screen is known as profile wire screen, V- wire screen, and wedge wire screen.
It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods.
Each intersection of the profiles wire and support rod is well welded.
It has a smooth surface, resistant to clogging and a greater structural strength.
Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.
They are widely used in liquid filtration processes in the food, chemical, petrochemical, paper, liquid, gas and solid separation, sizing, dewatering and sifting in oil wells, water wells, waste/process water treatment, quarry screening, mine sifting and other industrial screening.
| Wedge Wire Johnson Screen Filter | ||
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 etc. Height(mm): 2.0 3.0 4.6 5.0 6.0 7.0 etc. | |
| Specification (support rods) | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From ø2.5mm to 6.0mm round wire | |
| Note: other wires and rods available upon request | ||
| Slot size (mm) | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material | Stainless steel 205, 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1300mm | |
| Screen ends | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
| Advantage
| Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. | |
Advantages:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
