316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
SS 316L 38mm Diameter Wound Screen With DN25 Male Threaded
Wound Screen Characteristics:
1. The application of wedge wire wound screen, so that the schroeder sieve tube gap between the formation of v-shaped opening. The design works more efficiently than other products and ensures smooth water filtration.
2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire in a circular arrangement, ensuring the opening area of schroeder sieve tube and no obstruction, and avoiding the high-density accumulation of sediment, providing a guarantee to improve the production efficiency and prolong the service life of the filter.
3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.
4. Longitudinal arrangement of supporting wire and continuous gap form of screen tube designed according to actual demand make the product have higher compression performance.
Wound Screen Specification:
| Name | Wound Screen |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire | 1.0 *2.0 mm 1.5*2.0mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm 3*4mm 3*4.6mm etc |
| Support Rods | 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm |
| Round | From 2.5mm to 6.0mm |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |

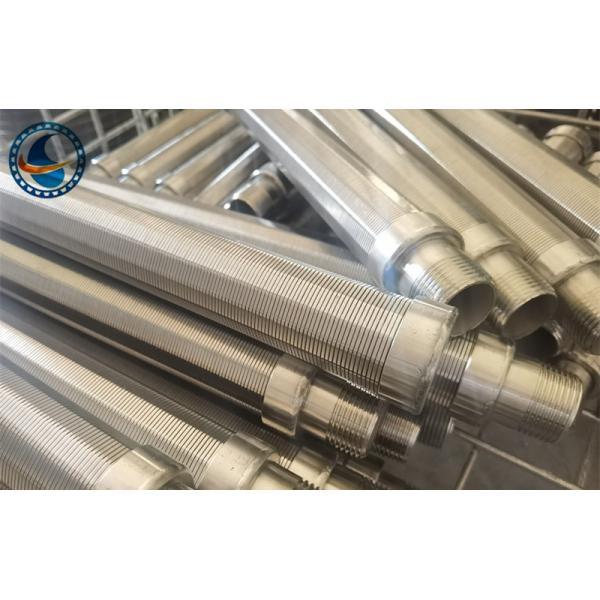

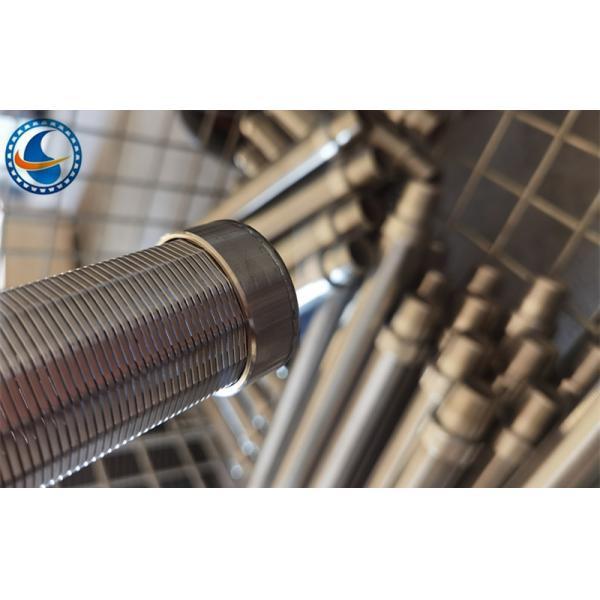

Wound Screen Pictures:
