68mm Dia Trapezoid Wedge Wire Screen Basket Strainer For Filter Resin
Trapezoid Wire Wedge Wire Screen Basket Strainer For Filter Resin
Trapezoid wire wedge wire screen basket strainers are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 52” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.
Wedge Wire Screen Basket Strainer Applications:
Except for resin filtration, It can also be used to:
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal.
2. Water injection, bi-modal sand, carbonates, thin pay.
3. Horizontal, vertical , deviated oil and gas and water wells.
Wedge Wire Screen Basket Strainer Specification:
| Name | Wedge Wire Screen Basket Strainer |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire | 1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc |
| Support Rods | 2*3mm, 3*4.6mm, 3*5mm, 3*6mm, 4*7mm Vee- shaped etc. |
| Support Rods | Except Vee-shaped Wire, support rods also can be ø 2.5mm to ø6.0mm round wire. |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |

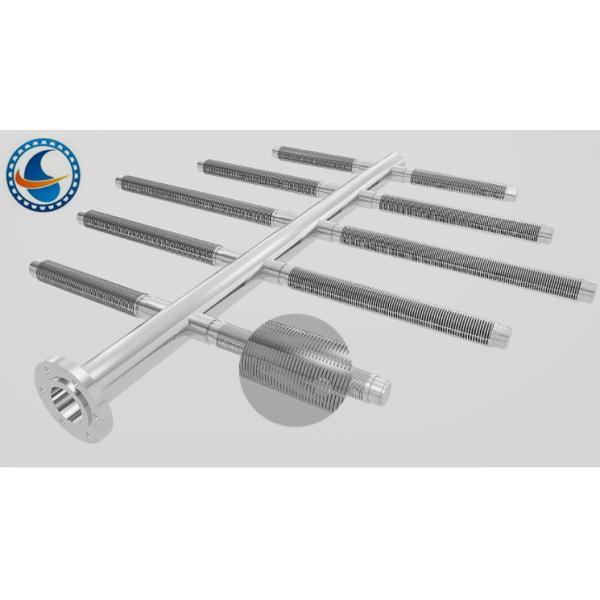

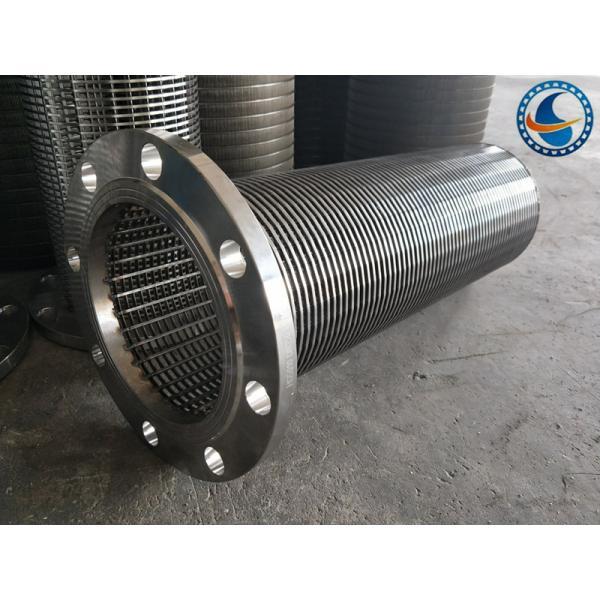

Wedge Wire Screen Basket Strainer Pictures:
