Wastewater Treatment Wedge Wire Screen Tube 25um Slot

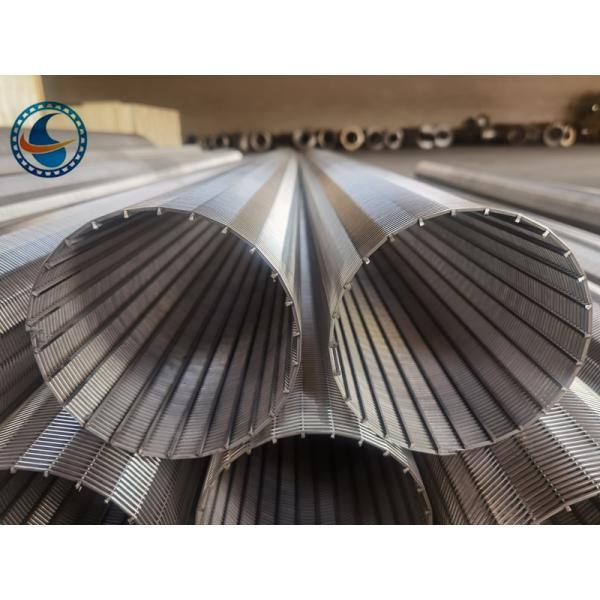

Stainless Steel Wedge Wire Screen Tubes For Wastewater Treatment
Wedge Wire Screen Tube is a multi-functional screen.
Slit (slot/ Gap) can be set with higher precision compared with wire mesh / stamped steel plates or other screens, with a tolerance independently defined. We can support slits of minimum 25 μm (0.025 mm).
Because many processing variations are possible, Wedge Wire Screen Tubes can be manufactured in various shapes such as flat, cylindrical or conical.
Wedge Wire Screen Tubes Advantage:
② Because the screen surface is smooth, the degree of wear is constant.
③ The standard material is stainless steel (SUS304, 316L).Also can be other material according to your request.
Therefore, Wedge Wire Screen Tubes feature higher strength and durability than filters such as wire mesh, perforated plates or filter cloths, and depending on the usage environment and material, they can be used almost indefinitely without replacement, reducing running costs. In addition, we are also able to produce Wedge Wire Screen using special materials such as titanium or duplex stainless steel.
Wire Wedge Screen Tubes Specification:
| Name | Wedge Wire Screen Tubes |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire | 1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.2*3.5mm 2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc |
| Support Rods | 2*3mm 3*4.6mm 3*5mm 3*6mm |
| Round | From 2.5mm to 6.0mm |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |
