304 Stainless Steel Rod Based Continuous Slot Wedge Wire Mesh Filter Type From Outside To Inside Wire Shape 3*4.6mm V Shaped
Stainless Steel Rod Based Continuous Slot Wedge Wire Mesh
Rod Based Continuous Slot Wedge Wire Mesh also be named: Johnson screen, Johnson well screen, Wedge wire screen,Wound screen, Wire wrapped wire, Water well screen, Countinuous slot well screen, Wedge wire mesh, Wedge wire screen panel, Sand control screen,Wedge wire screen pipe, Wedge wire screen tube, Rotary filter drum,Downhole slotted tube, Taper steel tube, Stainless steel screen tube,Galvanized screen, Wedge wire slot tubes, Wire screen cylinder
| Product Name | Rod Based Continuous Slot Wedge Wire Mesh |
| Material | Stainless steel 304,316L, 321, 904L, Duplex steel 2205,2507 etc. |
| Length | Upto 6 meters |
| Standard | SY/T5182-2008 |
| Diameter | From 29-1300mm |
| Ends | Welded rings, Male/female threaded, Flange, Closed up etc. |
| Slot size | 0.025-100 mm |
| Surface | Polish |
| Wrapped wire | 1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 2.2*3.5mm, 3*4.6mm |
| Support rod | 2*3mm,3*4.6mm VEE wire or ø2.5-6.0mm round wire |
Rod Based Continuous Slot Wedge Wire Mesh Normal Size:
| Sizes (inch) | OD (mm) | Slot (mm)
| Length (m) | Tenslie Strength | Collapse Strength | Wrap wire (Width*height)(mm) | Support rod (mm) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 VEE WIRE | ø3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 VEE WIRE | ø3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 VEE WIRE | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 VEE WIRE | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 VEE WIRE | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 VEE WIRE | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 VEE WIRE | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 VEE WIRE | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 VEE WIRE | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 VEE WIRE | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 VEE WIRE | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 VEE WIRE | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 VEE WIRE | 4.0MM/59 |
JRod Based Continuous Slot Wedge Wire Mesh Usage:
Rod Based continuous slot wedge wire mesh can be used in petroleum, gas and water well, filling with gravels, can prevent the sand and protect the equipment in the well and underground, prolong the life span. It has the characteristics of easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost and etc.

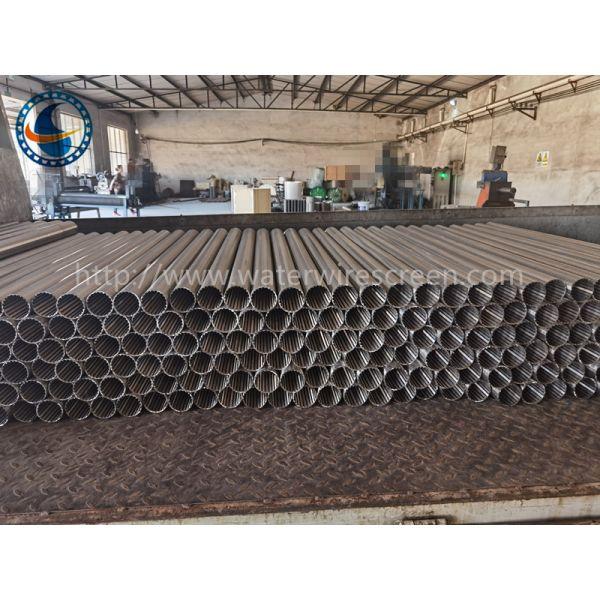

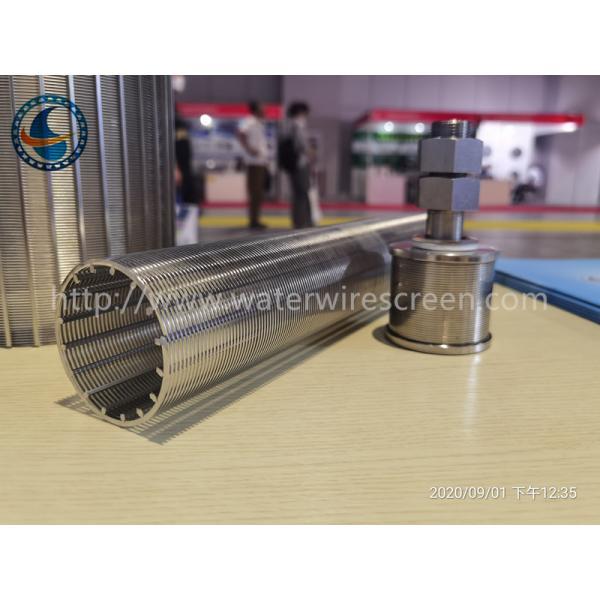

Rod Based Continuous Slot Wedge Wire Mesh Pictures:
