AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 O.D 114mm Downhole Slotted Tube With 1.0mm Slot For Sand Control
Downhole Slotted Tube Description:

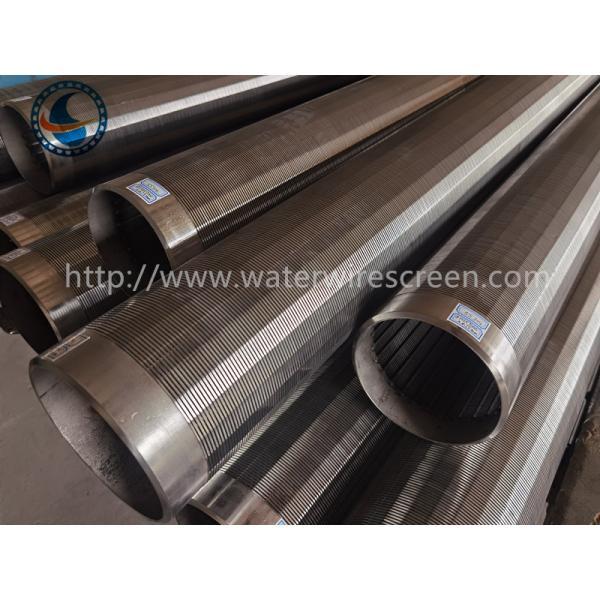

Downhole Slotted Tube is made by wrapped wire and support rods.
It is also be named: Johnson wire screen Johnson screen,Johnson well screen, Wedge wire screen,Wound screen Wire wrapped wire,Water well screen,Countinuous slot well screen,Wedge wire mesh,Sand control screen,Rotary filter drum Downhole slotted tube,Wire screen cylinder,Profile Wire Downhole Slotted Tube,Wire wrap screen,Wire wrapped screen pipe, Johnson Screen, Spiral screen tube, Welded wedge wire screen,Continuous slot wire wrap well screens,Slot wire screen tube,Strainer screen wide slit screens, Well point screens,Oil screen tube.
Downhole Slotted Tube Specification:
| Name | Downhole Slotted Tube |
| Material | Stainless steel |
| Grade | 304 |
| O.D | 114 mm |
| Size | 4-1/2" |
| Slot size | 1.0mm |
| Length | 3 m |
| End connection | Welded rings |
| Wire size | 1.5*2mm Vee wire, 1.5mm is the width and 2mm is the height |
| Support rod | 2*3mm Vee wire, 2mm is the width and 3mm is the height |
| Wire shape | Vee-shaped |
Downhole Slotted Tube Regular Specifications:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH*HEIGHT(MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 5.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Downhole Slotted Tube Characteristic:
- Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
- Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
- Reduce the abrasion of the pump
- Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
- Extend the life span of wells
- Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Downhole Slotted Tube Application:
· Water Well
·Waste Water Treatment
.Water supply systems
·Coal & Mine
·Food Processors & Beverage Screens
·Environmental protection
·Refining & Petrochemical
·Architecture & Construction
