Non Magnetic SS Downhole Slotted Tube , Johnson Wedge Wire Screens
High Effective Johnson Wedge Wire Screens Non Downhole Slotted Tube Magnetic Stainless Steel Material

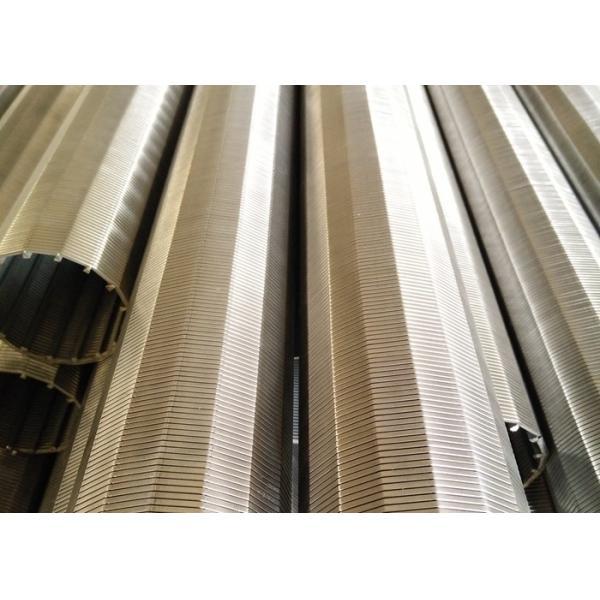

Non-magnetic Stainless steel wedge wire screens by HengYuan has a high open area compared with other screen media, then this kind of water well screens allows lower entrance velocity and higher flow rates through the screen.
Non-magnetic Stainless steel wedge wire screens give continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening.
Specifications of non-magnetic stainless steel wedge wire screens:
Slot size (mm): 0.25, 0.5, 1.0, 1.5, 2.0mm, or other slot as your request.
Open area: up to 60%
Material: Non-magnetic stainless steel
Lengths up to 6 meters for container
Diameter: ranging from 25 to 800mm
End connection: threaded coupling or welded ends
Slot (mm): 0.50, 0.75, 1.00, 1.50, 2.00, 3.00 and so on.
| Specification (wedge wire): | Width(mm): 2.0, 2.2, 3.0, 3.2 Height(mm): 3.5, 4.6, 5.0, 6.0, 7.0 |
| Specification (support rod): | Round: From 3.0mm to 5.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.5, 0.75, 1.0, 1.5mm.. 100mm also achieved upon request. |
| Material: | Non-magnetic Stainless steel |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
