Wear Resistant Stainless Steel Well Screen With High Mechanical Strength
Easy To Leakc, Wear-Resistant Downhole Slotted Tube 316L OD 403 630 Mm

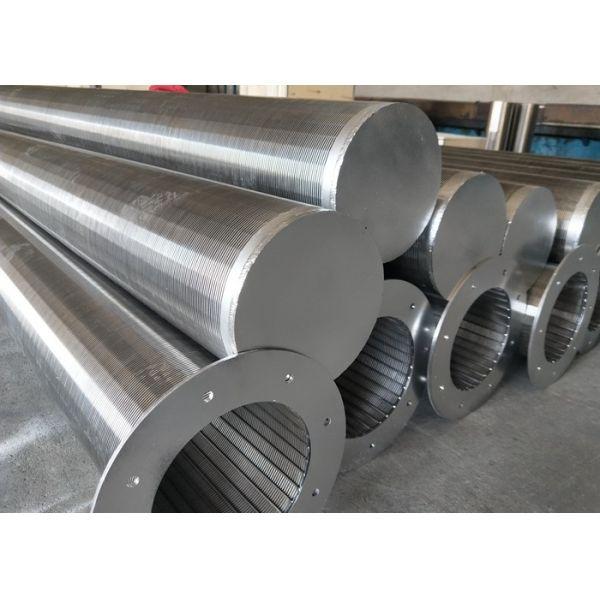

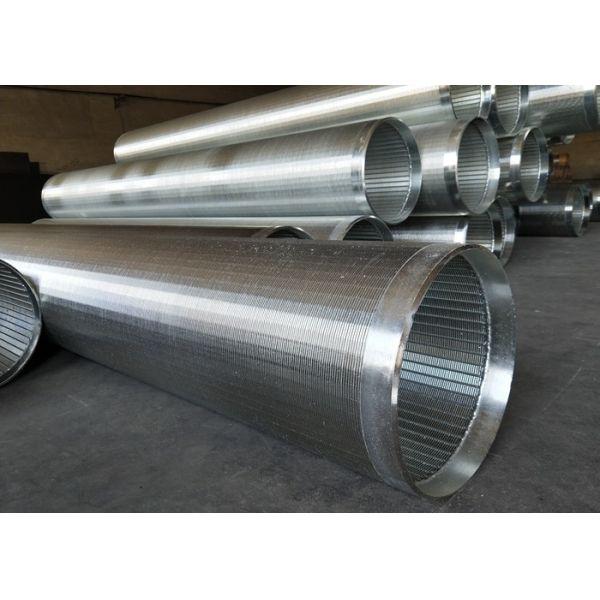

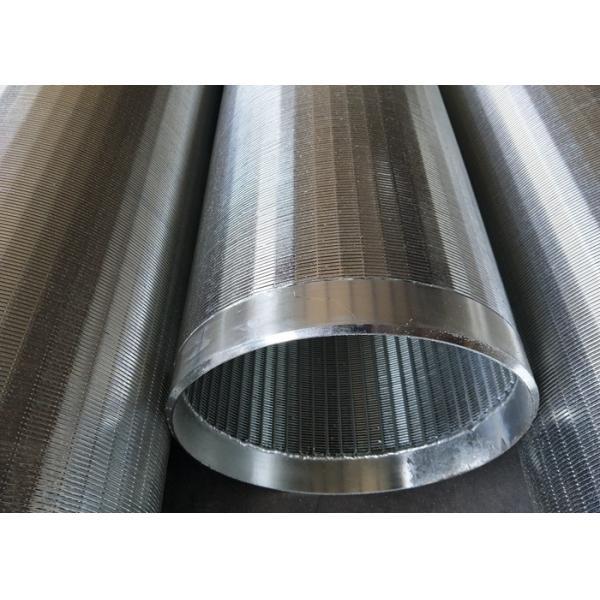

Downhole Slotted Tube Introduction:
Wedge wire screen also be named Vee-wire screen pipe .
Continuous slot vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .
It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together .
Accurate slot and high filtration precision .
Downhole Slotted Tube Basic Parameters:
1. Material: Stainless steel 202/304/304L/316/316L etc
2. Opening / Slot: 0.02mm - 100mm
3. Max Length: 6 meters
4. End connection: Welded rings; Male/female threaded; Closed up; Flange and so on.
5. Diameter:29-1300mm
6. Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm, 3*5mm etc.
Downhole Slotted Tube Parameter selection table:
| Wedge Wire Johnson Screen Filter | ||
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 | |
| Specification (support rods): | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm | |
| Note: other wires and rods available upon request | ||
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1200mm | |
| Screen ends | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
| Advantage | Reduce energy consumption and increase water flow. | |
Downhole Slotted Tube Features:
easy to leak, wear-resistant, corrosion-resistant. The mesh section is triangular. The gap is narrow at the top and wide at the bottom, the screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and it has high strength, rigidity and bearing capacity.
Downhole Slotted Tube Application:
food, water treatment, oil exploitation, building decoration, etc.
Packing details:
1. With a plastic film winding and then packed in wooden cases
2. According to your requirment.
Delivery time:
Common size we have stock, can delivery within 1 week .
Special size depend on the quantity
Min. Order:
If have stock, any quantity is ok .
If no Stock, 1 Square meter
Payment terms: T/T, L/C ,Paypal ,West Union etc.
Trade term : EXW or FOB Tianjin
