Low Carbon Galvanized 6-5/8" Continuous Downhole Slotted Tube
Low Carbon Galvanized 6-5/8" Continuous Downhole Slotted Tube
It is also be named Johnson screen cylinder, Wedge wire screen, Wound screen,Wire wrapped screen, Wire screen,Well screenm,Groundwater well screen,Drum filter.
Continuous Downhole Slotted Tube Specificarion:
| Product name | Continuous Downhole Slotted Tube |
| Material | Low carbon galvanized |
| Product Grade | Q235 |
| O.D | 6-5/8" (168mm) |
| Slot | 0.04" (1.0mm) |
| Wire size | 2*3.5mm Vee shaped Wire, Also can be 2.2*3.5mm, 3*4.6mm, 3*5mm ,3*6mm etc |
| Support rod | ø3.8mm round wire, Also can be ø2.8-6.0mm, Or Vee shaped wire. |

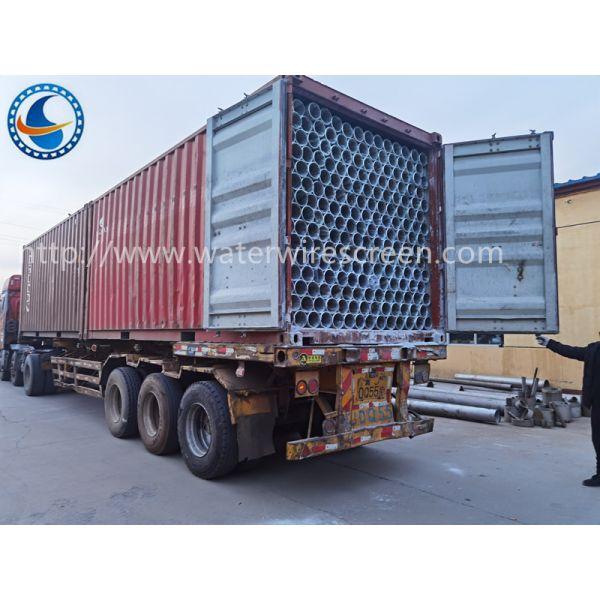

| Length | 2.9m in usual , to fit container |
| End connection | Welded rings, Also can be male/female threaded, flange etc. |
| Weight | 31KG/piece |
Low carbon galvanized 6-5/8" Continuous Downhole Slotted Tube Normal Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Continuous Downhole Slotted Tube Use:
High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
1. Water well
2. Water supply systems
3. Refining & petrochemical
4. Filter equipment
5. Drum Filter
6. Sand control
