Thread Couplings Slot 60 Wedge Wire Water Sand Contol Water Well Screen 8 Inch
Thread Couplings 8 intch Slot 60 Wedge Wire Water Sand Contol Water Well Screen

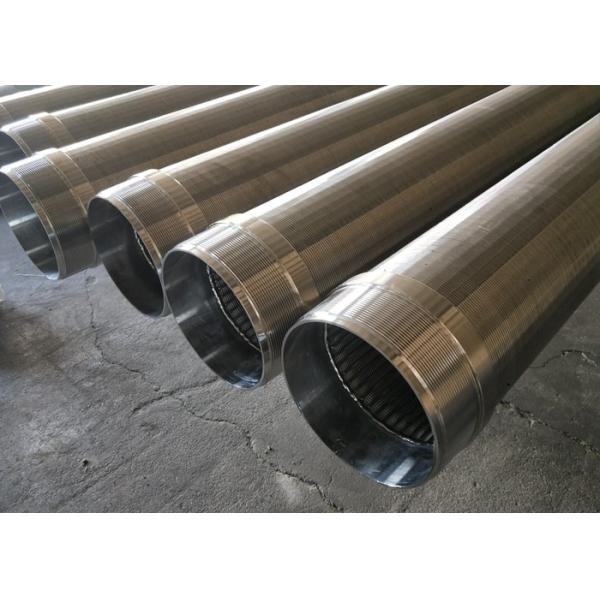

Thread Couplings 8 intch Slot 60 Wedge Wire Water Sand Contol Water Well Screen are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.
Our wedge wire filter are manufactured directly on a machine.They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one.
Advantages of Downhole Slotted Tube For Water Filtration
1. Continuous slot: opening significantly increases the available open area, providing greater access to the
water-bearing zone.
2. Non-clogging: "V" shaped or wedge shaped profile wire, avoids clogging, is self-cleaning and ensures an
uninterrupted flow. Sand grains make only two point contact and don't wedge in the screen's inwardly enlarging slot.
3. Large open area: this allows more water to enter at much lesser frictional head loss and the efficiency of well
is improved appreciably.
How to choose:
In order to achieve the best filtration and use effect, and at the same time meet the requirements of all users in the industrial industry to save water, electricity and labor, please consult the dealer. Authorized agents and distributors have received professional technical training from experts. They will make the best choice for you with their professional knowledge, rich market experience, and rigorous scientific attitude. Generally there are the following points:
1. Treated water volume
2. Pipeline pressure of the system, selection of wire gauge in Schroeder screen
3. The filtering accuracy required by the user, that is, the filtering gap
4. Filter the concentration of suspended solids in impurities
5. The relevant physical and chemical properties of the filter medium to select the product material
6. The length and diameter of the Schroeder screen equipped in the filter equipment
Application Of Downhole Slotted Tube For Water Filtration
This Downhole Slotted Tube is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum production.
| Material | Low carbon galvanized, Also can be make stainless steel or other material | ||||||||
| Outer Diameter | 6-5/8", Also can make other size | ||||||||
| Inner Diameter | 152mm, Also can make other size | ||||||||
| Length | 2.9m or 5.8m in usual, Also can make other size according to your request | ||||||||
| Slot | 0.5mm,0.63mm,0.75mm,1.0mm in usual, also achieved upon request. | ||||||||
| Wedge Wire size | Width(mm): 2.0, 2.2, 3 .0, 3.2 etc. Height(mm): 3.5, 4.6, 5.0, 6.0 etc. | ||||||||
| Support Rod size | ø3.0-5.0mm round wire, Also can be Vee shaped Wire | ||||||||
| End connection | Welded rings, Also can be Flange, closed, male/female threaded etc | ||||||||
This is the normal sizes we make, We can make other size according to your drawing !
Please feel free to contact me if you have any enquiry.
