OD 215mm Sus304 Non Clogging Continuous Slot Screen
Continuous Slotted SS 304 OD 215mm Cyclone Washing Machine Filter Element
Continuous Slotted Cyclone Washing Machine Filter Element also be named Johnson screen, Wedge wire screen, Wound screen, Wire wrapped screen, Screen filter, profile wire screen, V- wire screen tube.
Continuous Slotted Cyclone Washing Machine Filter Element is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods.
Each intersection of the profiles wire and support rod is well welded.
It has a smooth surface, resistant to clogging and a greater structural strength.
Continuous Slotted Cyclone Washing Machine Filter Element is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.
Continuous Slotted Cyclone Washing Machine Filter Element use:
It is used in liquid filtration processes in the food, chemical, petrochemical, paper, liquid, gas and solid separation, sizing, dewatering and sifting in oil wells, water wells, waste/process water treatment, quarry screening, mine sifting and other industrial screening.
| Continuous Slotted Cyclone Washing Machine Filter Element | ||
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 etc. Height(mm): 2.0 3.0 4.6 5.0 6.0 7.0 etc. | |
| Specification (support rods) | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From ø2.5mm to 6.0mm round wire | |
| Note: other wires and rods available upon request | ||
| Slot size (mm) | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material | Stainless steel 205, 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1300mm | |
| Screen ends | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
| Advantage | Reduce energy consumption and increase water flow. | |
Continuous Slotted Cyclone Washing Machine Filter Element Advantages:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity

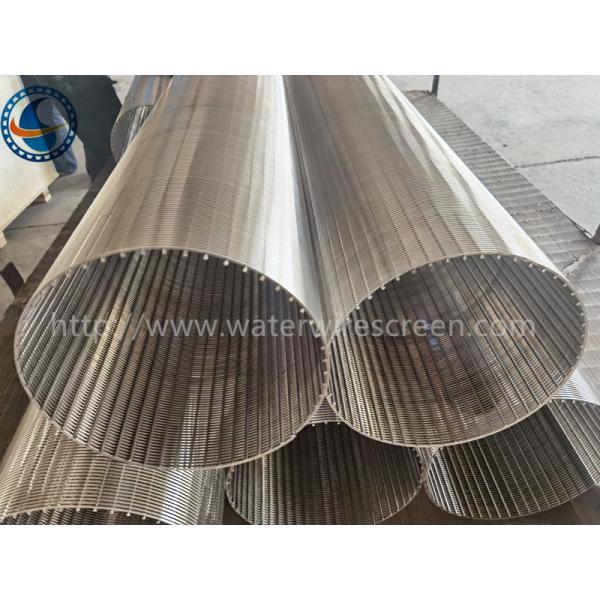

Continuous Slotted Cyclone Washing Machine Filter Element Pictures:
