3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 Continuous Slot Johnson VEE-Wire Screen Panel
Stainless Steel Continuous Slot Johnson VEE-Wire Screen Panel, is welded by V wire and support rod.
There is a fixed value slot between each v wire.
The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire.
There is a certain distance between each support bar too .
The filter surface is smooth, the gap is uniform, and it is not easy to block.
We can weld the frame around the bottom or bottom of the net.
The frame can be flat steel, angle steel, channel steel, or other shapes, all of which can be produced according to customer requirements.
Continuous Slot Johnson VEE-Wire Screen Panel Specification:
| Name | Continuous Slot Johnson VEE-Wire Screen Panel |
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 3000mm*3000mm |
| Slot Size | 0.5 mm |
| Width | 3000mm |
| Length | 3000mm |
| Type | Screen plate |
| Wire size | 1.5*2 mm VEE wire, 1.5mm is the width and 2mm is the height |
| Support rod | 2*3 mm VEE wire, 2mm is the width and 3mm is the height |
| Wire shape | VEE shaped |
Continuous Slot Johnson VEE-Wire Screen Panel Regular Specifications:
Material: stainless steel 302, 304, 304L, 316, 316L, 904L,Duplex steel 2205, 2507 etc.
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Dimension: Width up to 4000 mm
Length up to 4000mm
Continuous Slot Johnson VEE-Wire Screen Panel Parameter selection table:
| SIZES OF THE WIRE AND ROD | ||||||
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 3.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O (round wire) |
| Width(mm) | 2.0 | 3.0 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.6 | 5.0 | 6.0 | 6.0 | 2.8~4.0mm |
Continuous Slot Johnson VEE-Wire Screen Panel Use :

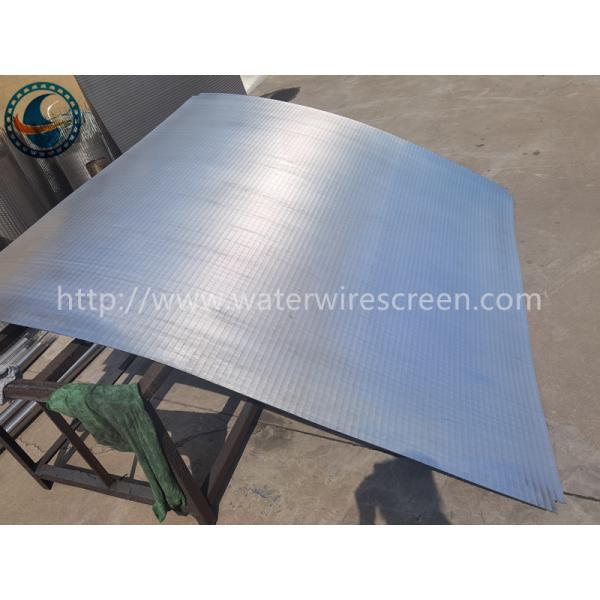

Continuous Slot Johnson VEE-Wire Screen Panel Pictures:
