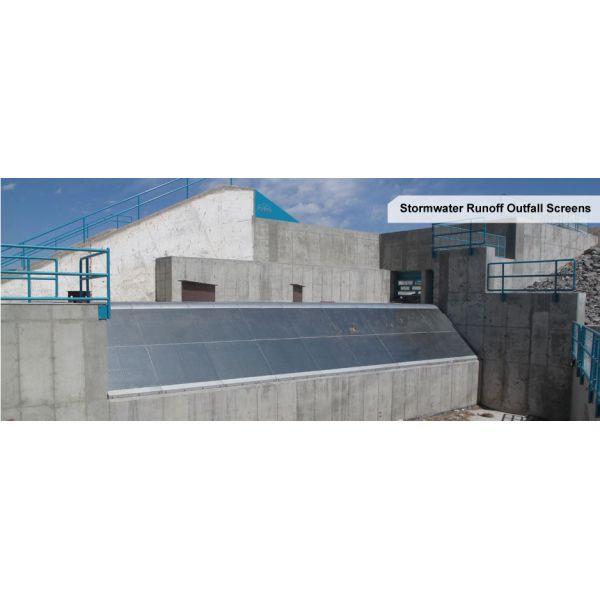

SS 316L Wedge Wire Screen Panel For Stormwater Runoff Outfall

Wedge Wire Screen Panels Introduction:

Wedge Wire Screen Panels, also known as Wedge wire plate, V-wire screen panel, are custom made for your application.

The features of this type of screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing. Profile Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen and reduce blinding.

The wedge wire screen panel is easy to leak, wear and corrosion resistance. The section is trapezoid, and the slot is narrow and wide. Uniform screen seam, stable welding quality, high opening rate, long service life, high strength, stiffness and bearing capacity, can be made into a variety of shapes of rigid screen filtration device.

Widely used in mining, coal, petroleum, chemical fertilizer, food, salt, environmental protection and other industries, screening liquid, powder and other materials, petroleum, chemical, metallurgy, mining, pharmaceutical purification, drilling liquid purification and so on. Can be processed according to user needs to produce a variety of shapes and needs of the sieve plate.

Wedge Wire Screen Panels Functions and characteristics:

1. Good wear resistance, long service life, is more than ten times the metal screen, 3-5 times the ordinary rubber plate, is 2-3 times the stainless steel.

2. Tons of ore consumption is lower than the metal screen.

3. Good moisture resistance and wear resistance.

4. Vibration absorption noise reduction, 10bB times lower than the metal screen plate (net).

5. Automatic cleaning, due to the characteristics of polyurethane secondary vibration, no hole blocking, high screening efficiency

6. Casting wear-resistant convex screen plate, wear-resistant and inexpensive

Wedge Wire Screen Panels Specification:

Material:stainless steel 201, 304, 316L, Duplex steel 2205, 2507 etc.
Slot size(Opening):0.025-100mm or customer's requirement
Support bars pitch:10-30mm or customer's requirement
Wedge wire size:1*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm or others
Support bars size:2*3mm,3*4.5mm or others

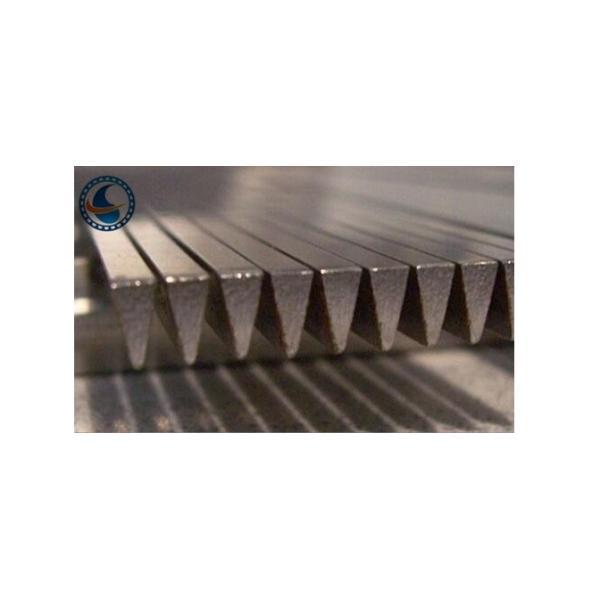

Flat Profile Wire Screen Panels Pictures:
