Ss 316l 1.0mm Slot Wedge Wire Screen Panels Support Grid For Carbon Filters

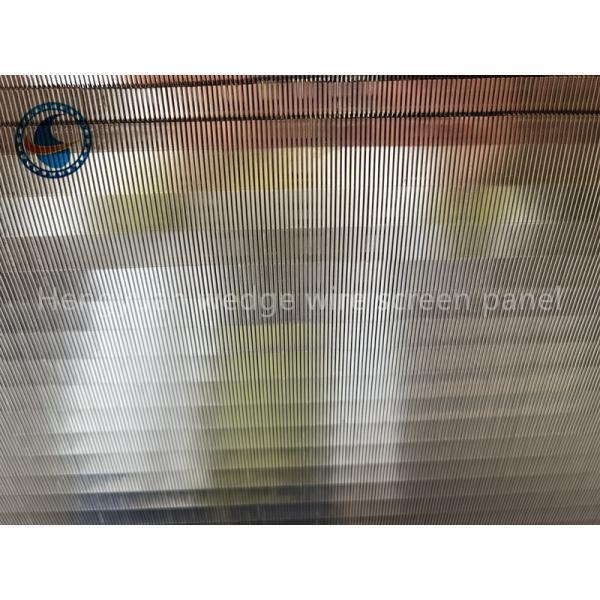

SS 316L Wedge Wire Screen Support Grid For Carbon Filters
Wedge wire screen support grid is made of all stainless steel materials, including the wedge wire screen, frames and other accessories. The high quality material make the wedge wire screen support grid corrosion and rust resistance and long service life. Compared with woven wire mesh or perforated metal, wedge wire has continuous slots, which have higher open area and precise openings. It can supply more precise filtering performance, higher strength and more durable life.
Wedge Wire Screen Support Grid Common size:
| Name: | Johnson flat screen, Wedge wire screen panel, Slotted plate,Wound screen plate. |
| Material: | Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc. |
| Max Size: | 4000×4000 mm |
| Slot: | From 0.025-100mm |
| Profile wire type: | Vee wire/ Triangle wire |
| Support rod type: | Vee wire/ Triangle wire; Round wire; Rectangular wire. |
| Profile wire: | 1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm, 2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc. |
|
Support rod:
| Vee wire:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm |
| Round wire: ø2.5-6.0mm | |
| Rectangular wire: 2×10mm; 2×12mm; 2×15mm; 2×20mm; 2×30mm; 3×20mm; 3×30mm. | |
| Frame: | With or without frame |
Features of wedge wire screen support grid:
-
Smooth surface.
-
High open area.
-
Excellent capacity.
-
Temperature resistance.
-
Corrosion and rust resistance.
-
High strength.
-
Long service life.
-
Non-clogging.
-
Joint type for easy installation and transportation.
Applications of wedge wire screen support grid:
The wedge wire screen support grids are very important to provide uniform flow collection The support grid can be used in the carbon filters, desulfurizers, molecular sieves, gas sweeteners and lauter tuns.
