Stainless Steel 304 Flat Profile Wire Screen Panels

Flat Profile Wire Screen Panels Introduction:

Flat Profile Wire Screen Panels, also known as Wedge wire plate, V-wire screen panel, are custom made for your application.

The features of this type of screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing. Profile Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen and reduce blinding.

Flat Profile Wire Screen Panels Specification:

Material:stainless steel 201, 304, 316L, Duplex steel 2205, 2507 etc.
Slot size(Opening):0.025-100mm or customer's requirement
Support bars pitch:10-30mm or customer's requirement
Wedge wire size:1*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm or others
Support bars size:2*3mm,3*4.5mm or others

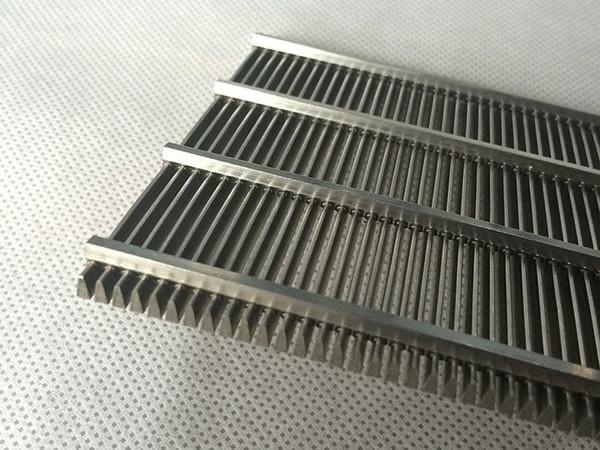

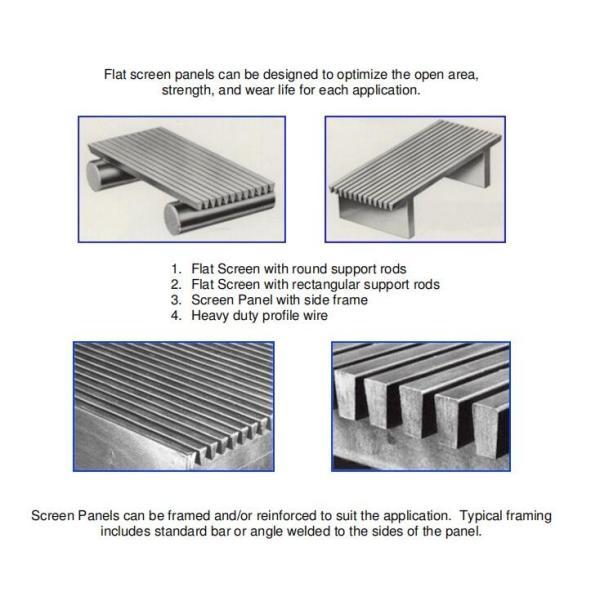

Flat Profile Wire Screen Panels Pictures:
