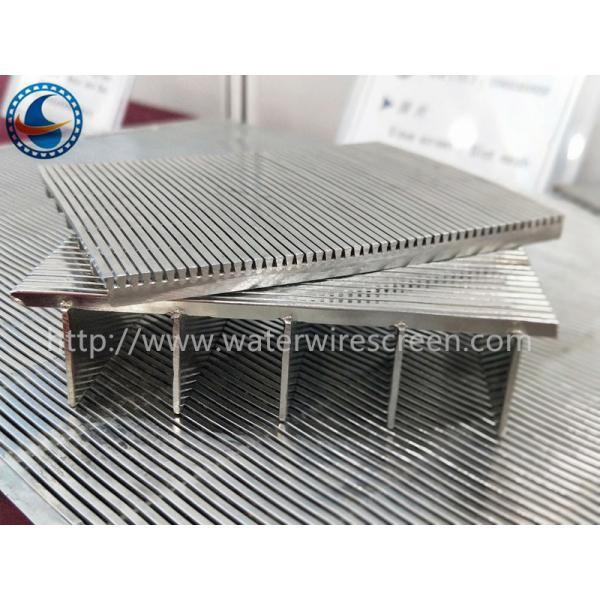

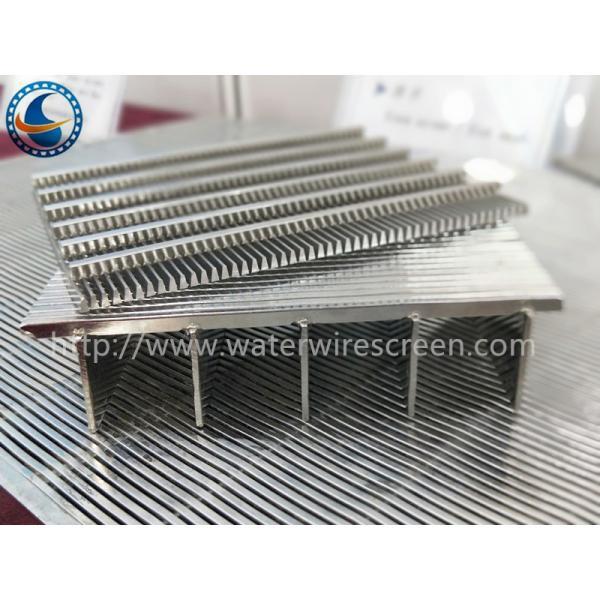

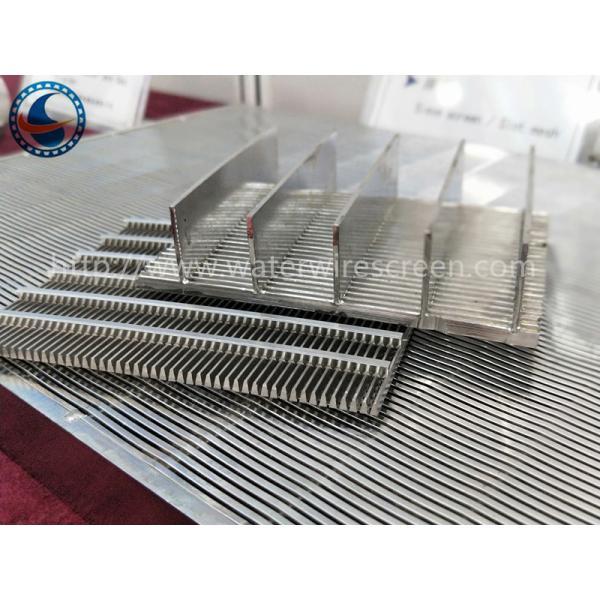

Stainless Steel 321 Wedge Wire Screen Panels For Petrochemical Engineering

Wedge Wire Screen Panels Description:

Wedge Wire Screen Panel is welded by V wire and support rod.

There is a fixed value slot between each v wire.

The support bar can be a round wire or a triangular wire or a trapezoidal wire.

The sieve is a triangular wire (v-shaped silk). Wire and stainless steel ladder washing coal mine screen mesh with the series: wedge wire slot sieve plate, stainless steel 304 coal seam sieve plate, triangle silk screen plate, trapezoidal wire arc sieve plate, flat screen, high frequency sieve plate, coal washing sieve plate, wear-resisting screen mesh, Johnson screen screen surface.

Wedge Wire Screen Panels Specification:

Wedge Wire Screen Panels Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Wedge Wire Screen Panels Feature:

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Wedge Wire Screen Panels Advantages:

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.
