Johnson Wedge Lauter Tun V Wire Screen Filter Panel For Beer Equipment

Price Negotiable

Price: Negotiation

MOQ: 1pcs

Delivery Time: 7-10 work days,according to the quantity

Brand: Heng Yuan

Product Description

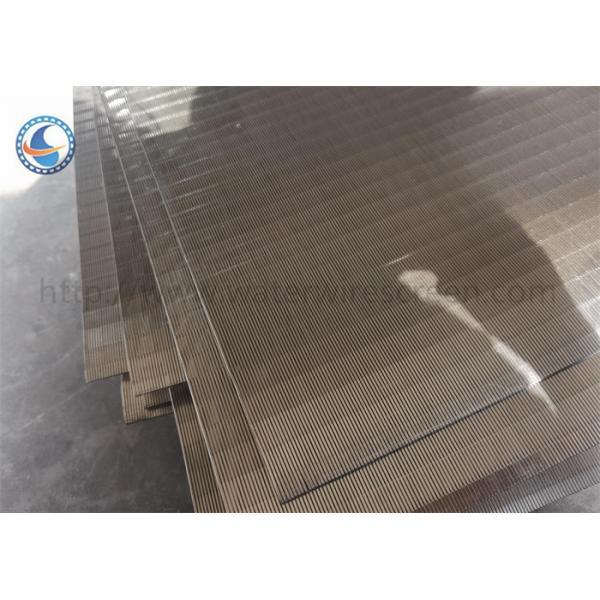

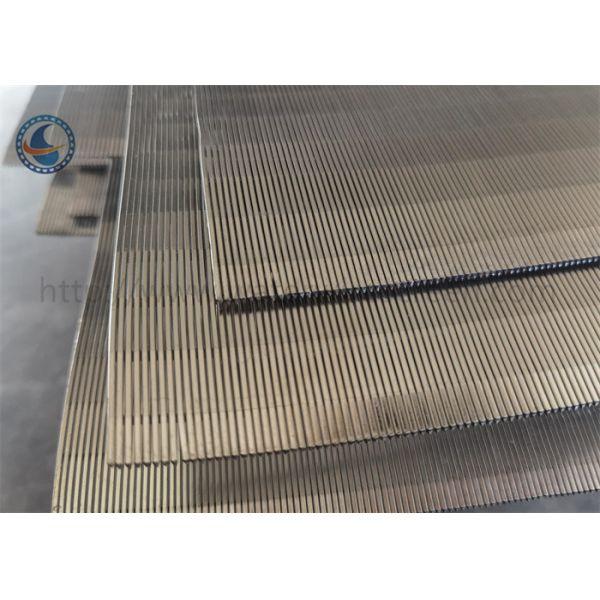

Factory johnson wedge v wire lauter tun screen panel filter used for beer equipment

Product Description:

Wire Wrap Wedge Wire Screen Filter Grate 1219 Length Use In Coal Washer is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire. There is a certain distance between each support bar too . The filter surface is smooth, the gap is uniform, and it is not easy to block.

We can weld the frame around the bottom or bottom of the net. The frame can be flat steel, angle steel, channel steel, or other shapes, all of which can be produced according to customer requirements.

characteristic

Simple and dependable eccentric type system.
High screening capacity.
High durability.
No transmission of screen panels.
Ready changing of screen plates.
Rigid and vibrating resistance screen body.
long service life
high opening rating
Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 4430mm

SIZES OF THE WIRE AND ROD
WIRE SHAPE	V	V	V	V	V	V
Width(mm)	1.0	1.2	1.5	2.0	2.2	3.0
Height(mm)	2.0	2.0	2.0	3.5	4.5	4.6
ROD SHAPE	V	V	V	V	V	O
Width(mm)	2.0	2.2	3.0	3.0	3.2	Diameter
Height(mm)	3.0	4.5	4.6	5.0	6.0	3.0~3.8

Parameters:

Gap (mm) : 0.02, 0.025, 0.03, 0.04, 0.05, 0.06, 0.08, 0.10, 0.15, 0.2, 0.25, 0.30-35, can also be made according to customer requirements

Material: low carbon steel, low carbon steel galvanized, stainless steel (304, 316L, Hastelloy, etc.)

Length: 100-4000 - mm

Width: 100-4000 - mm

Screen specifications: conventional 0.75*1.5mm, 1*2mm, 2*3mm, 2.3*3mm, 3*5mm

Applications:

1. Mining machinery: used for sand settling and dewatering coal preparation in coal preparation plant.

2. Malt machinery: suitable for malt mill grinding machine, floss machine, drying box, etc.

3. Beer machinery: applicable to beer brewery filter tank, high opening rate, long service life.

4. Chemical industry: used for sugar mill, paper mill wastewater treatment; Filtration, dehydration and supporting use of various coatings in fertilizer plants; Starch filtration in food factory;
