SS 316L Johnson Wedge Wire Sieve Filters For Chemical / Petroleum Industry
Cone Slot Screen Pipe Stainless Steel 316L Inside Filter Backwasher
Product Description:
Johnson Filter Backwasher Wedge Wire Screen Rotary Screen Drum is welded by a V-shaped wire and a support strip, and the V-shaped wire is an inverted triangle isosceles triangle, and the support bar may be a V-shaped wire or a square wire, or a round wire. The V-shaped wire is wound and welded on the outside of the pipe, and a gap is formed between each V-shaped wire. The size of the gap is determined by the customer, and the gap is continuous, which can increase the filtering area and play a good role in filtering.
Specification:
| Material | Stainless steel |
| Grade | 316L |
| I.D | 150-1000 mm, 520 MM |
| Slot Size | 0.1 - 30 mm, 2 mm |
| Components | None |
| Length | 300-3000mm, 700 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.

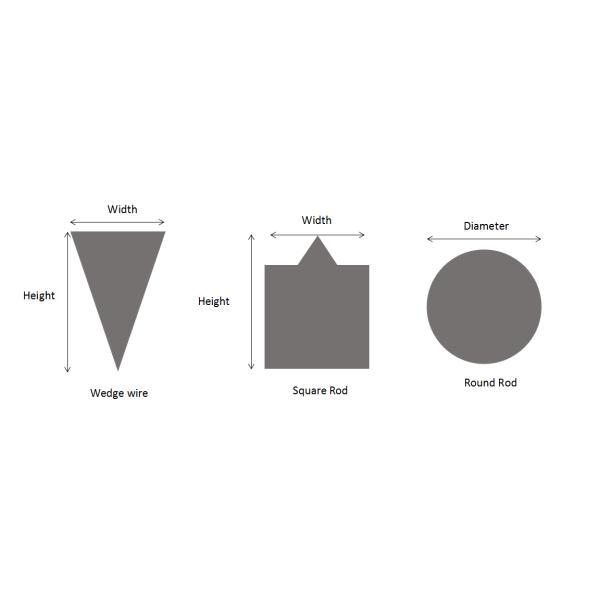

| SIZES OF THE WIRE AND ROD | ||||||
| Wire | ||||||
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | Round wire | |||||
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Special specification can be made according to your need.
use:
* water treatment including drinking and photographic use as well river water, sea water,
* Food and drink industry beverage and food products,
* Bright quenching and cutting fluids,
* Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind.
Pictures:
