Sus 316l Wedge Wire Screen Nozzle For Activated Carbon Absorption

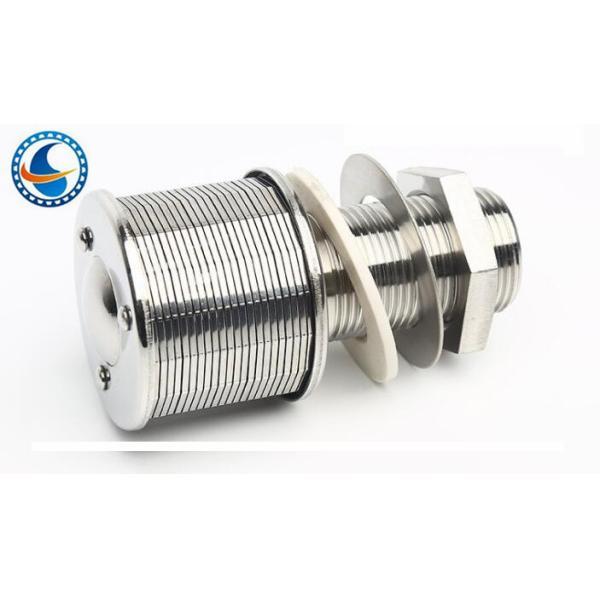

SUS 316L Wedge Wire Screen Nozzle For Activated Carbon Absorption
Stainless steel Wedge Wire Screen Nozzle Information:
Wedge Wire Screen Nozzle provide for optimal distribution of media in chemical reactors and filters.
They allow provision of a larger separation surface beyond the available container cross section.
Wedge wire screen nozzles are made of materials coordinated for ad-aptation to aggressive or abrasive media and for extreme process conditions.
Stainless steel Wedge Wire Screen Nozzle is suitable for water treatment, all kinds of matching ion exchange columns and activated carbon filters, it can also be used in the drainage system of fast filter, it can effectively wash out the sludge in the filter and ensure the normal operation of the water quality and quantity of the filter.
Its structure is reasonable, the connection is firm, the bearing strength is high, the gap does not change, it can make the filter plate have no dead water corner area, no mud, no clogging, the effect is good, (hourly drainage volume) 0.5T, 1T,2T,3T
Wedge Wire Screen Nozzle Strainer Types:
1. Single head filter nozzle
2. Double head filter nozzle Long handle filter nozzle
3. Double flow filter nozzle
4. Flatwater filter nozzle, etc.
Wedge Wire Screen Nozzle Strainer Normal Sizes:
| (NO.) | (Type) | (Ton) | (Slot)(mm) | (Size) | 0.2-0.25mm slot opening area of through-flow | |||
| D | H | L | M | |||||
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
