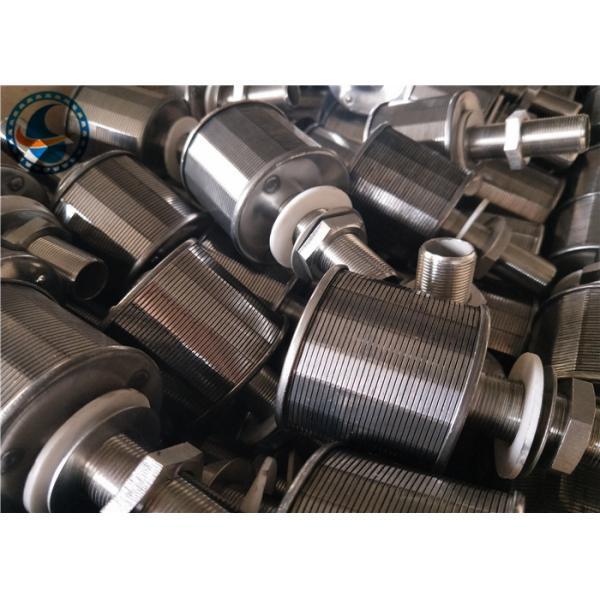

Wedge Wire Screen Filter Nozzles

Wedge Wire Screen Filter Nozzle also named screen nozzle is a kind of metal filter nozzle which is made of stainless steel and other materials. This filter nozzle adopts the wedge wire which is welded with support rods. It is a new generation of water treatment equipment that helps users solve the worries of original plastic filter nozzle. It solves the problems that plastic filter nozzle is poor in strength, pressure resistance, temperature, aging resistance. Besides, it is safe, reliable, integrated and costs low, used widely in filter industry. Our filter nozzle is ideal choice based on their combination of high strength, high open area and non-plugging slot design.

Stainless Steel Water Treatment Wedge Wire Filter Screen Nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Wedge Wire Screen Filter Nozzle Types:

a. Single head V wire tube flowing filter nozzle
b. Double head V wire tube flowing filter nozzle
c. Long hand flowing pipe type flowing filter nozzle
d. Large long hand flowing pipe type flowing filter nozzle
e. Plate type flowing filter nozzle

Wedge Wire Screen Filter Nozzle Specificaitons:
