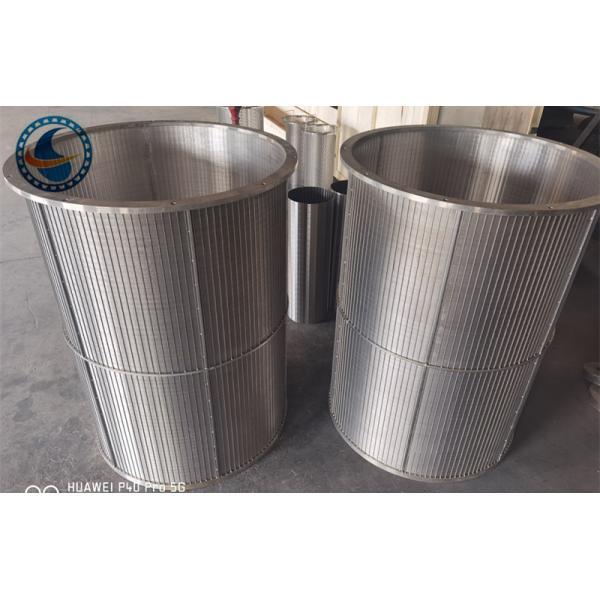

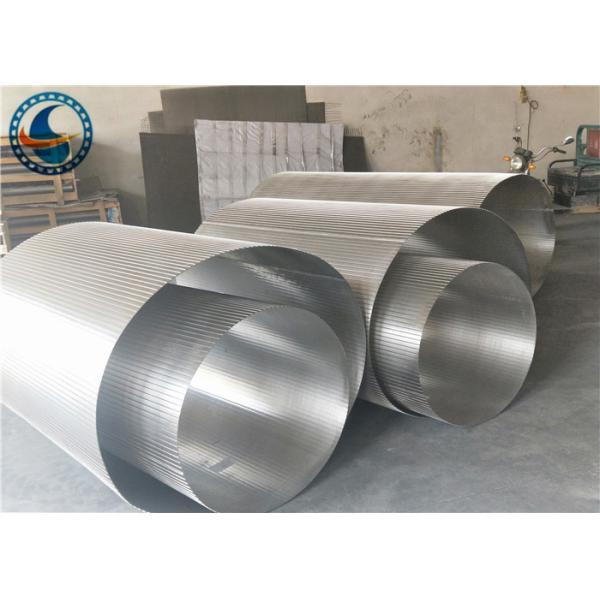

Stainless Steel 316L VEE-Wire Screw Extruder Filter Cylinder

VEE-Wire Screw Extruder Filter Cylinder by Hengyuan has a number of longitudinal and transverse reinforcement bars, which greatly strengthens the extrusion strength of the sieve cylinder, especially suitable for the extruder with rotating blades inside the sieve cylinder.

At the same time, because the VEE-Wire Screw Extruder Filter is welded by trapezoidal wire and wrapped around the bracket, the slot of the filter barrel is small inside and large outside, so the sieve barrel is not easy to plug, greatly improving the production efficiency.

The inner diameter error of the sieve cylinder is within 0.3mm, and there is no friction with the rotating device inside the filter cylinder.

The accuracy range of VEE-Wire Screw Extruder Filter Cylinder is 0.025mm-10mm, reasonable structure design, long service life, is one of the better filter elements so far.

VEE-Wire Screw Extruder Filter Cylinder Features:

1. Special stainless steel wire, not easy to plug.

2. The surface of the filter cylinder is smooth without edges and corners

3. Easy to backwash, clean without dead Angle

4. Built-in scraper, brush, suction head cleaning device

VEE-Wire Screw Extruder Filter Cylinder Application:

Chemical, petrochemical, sewage treatment, iron and steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid-liquid separation, animal husbandry and manure dehydration.

VEE-Wire Screw Extruder Filter Cylinder Normal Sizes:
