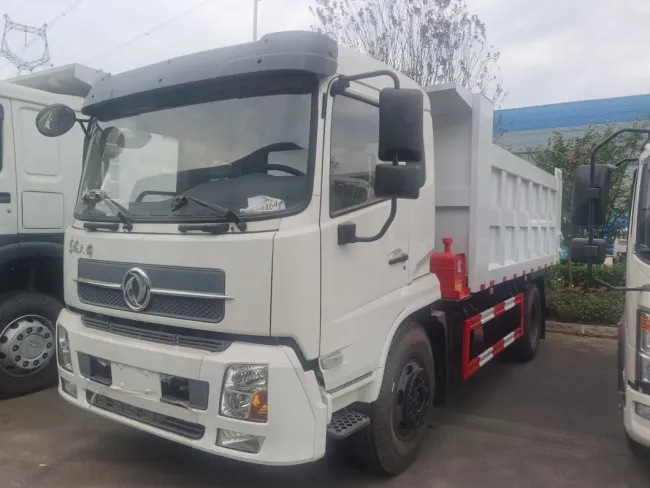

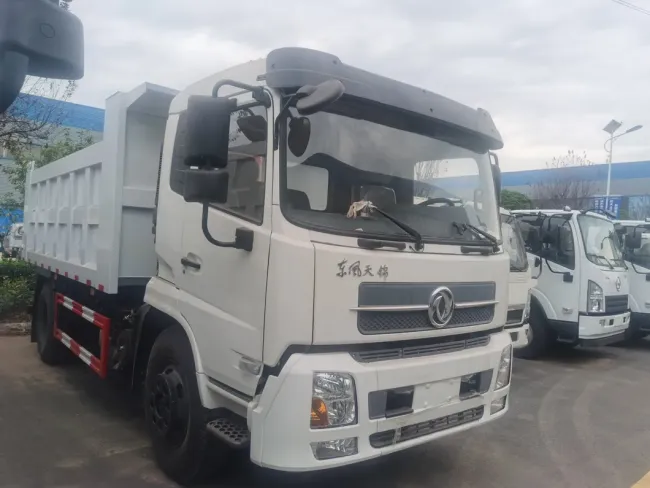

High-Quality Dongfeng 4X2 Sludge Transport Truck for Sludge Handling and Transport Tasks
Price:
US $18,888-48,888
MOQ:
1 Piece
Delivery Time:
Negotiable
Product Description
Dongfeng Cargo Truck/4X2
Main technical parameters
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Main technical parameters
| Model | /4×2 | |
| (**)(mm) Overall dimension(l*w*h) |
8000×2500×3250 | |
| Wheel base(mm) | 4500 | |
| G.V.W (kg) | 14490 | |
Complete vehicle kerb(kg) |
6920 | |
Max speed (km/h) |
80 | |
engine |
() Model(emission standard) |
B190 33,,,6, 6 cylinders in line,4 strokes, turbocharged cool, water cooling |
| Capacity(L) |
5.9/ 5.9/ Diesel oil |
|
Maximum power(Kw/rpm) |
140/2500 (190hp) | |
Maximum torque(Nm/rpm) |
640/1500 | |
Emission standard |
Euro III |
|
clutch |
model |
¢395mm , Hydraulic control with air booster, pushing |
gearbox |
model |
6, 1, 6 forward gears & 1 reverse ,synchronized |
Brake system |
service braker |
, Automatically regulate brake gap, double-circuit pneumatic power brake system |
auxiliary braker |
Engine exhaust brake |
|
Parking braker |
Energy storage spring effect on rear wheels |
|
Steering |
Circulating ball power steering, hydraulic assisted |
|
Vehicle frame |
Straight Beam |
|
Front axle |
Elliot type, I beam section |
|
Rear axle |
Single reduction |
|
Front over suspension rack |
Leaf spring with shock absorber |
|
Rear over suspension rack |
Leaf spring |
|
Tire |
10.00R20 | |
cab |
,,, , Kingrun one and a half row cab ,forward control type , all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver's seat, air conditioning system |
|
Color |
The photo only for reference and standard color is common paint and single color. | |
| 5800×2400×600mm | ||
