Mobile Dental Clinic Van Truck Barber Cart
Price:
US $15,000-69,100
MOQ:
1
Delivery Time:
15 working days
Product Description

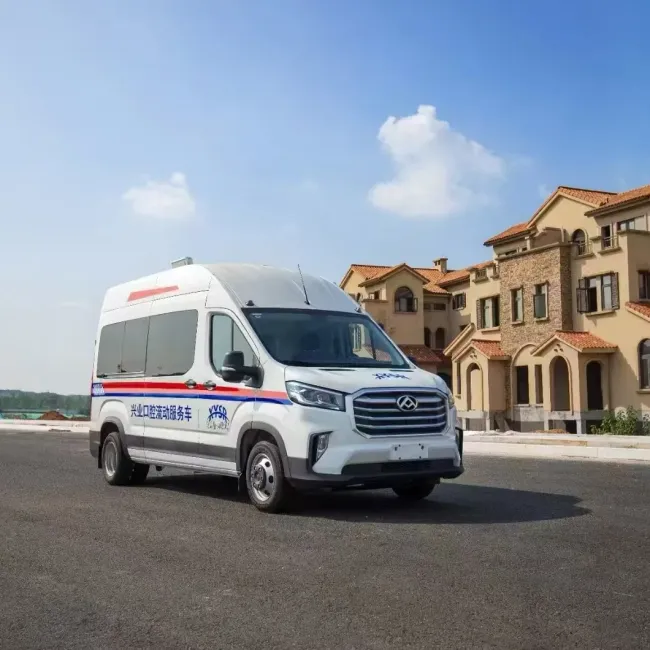

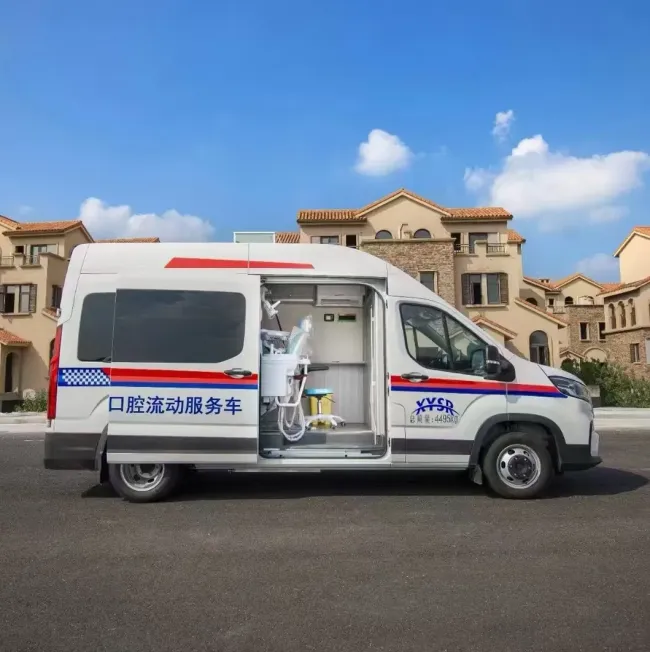

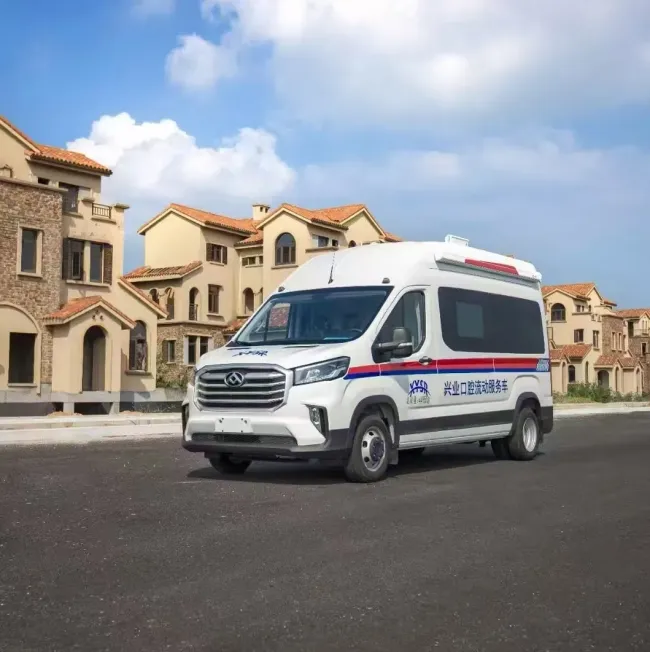

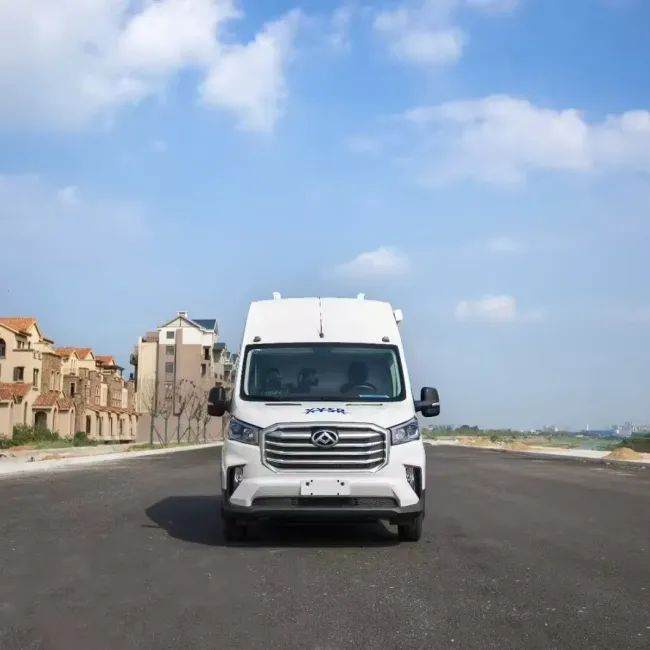

Mobile Dental Clinic Van Truck Barber Cart
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
| order number | Product model name | Type AAK5043XDWSH6 mobile service vehicle |
| Vehicle technical parameters | ||
|
|
Vehicle size: mm: | 5940×2110×2755,3020 |
|
|
wheel base mm: | 3760 |
|
|
gross mass kg: | 3560 |
|
|
Vehicle trim mass kg: | 3365,3430 |
|
|
suspended system | Front McPherson type independent suspension / rear leaf spring non-independent suspension |
|
|
Fuel type: | diesel oil |
|
|
fuel tank capacity (L): | 80 |
|
|
engine type | SC20M150Q6 |
|
|
operate mode: | turbocharging |
|
|
displacement: | 1996 |
|
|
Maximum power Ps / rpm: | 109/3500 |
|
|
Maximum torque of Nm / rpm: | 375/1500-2400 |
|
|
effluent standard: | country |
|
|
Drive way | Front-engine |
|
|
transmission: | 6 Speed manual transmission |
|
|
Top safety speed km / h: | 145 |
|
|
Tire specifications and models | 195/75R16LT |
|
|
brake assembly | Front disc rear disc |
|
|
Rated passenger carrying capacity (including the driver) | 2-3 People |
| Main configuration of vehicles | ||
|
|
World Expo ABS + EBD + + BAS | |
|
|
Central control lock | |
|
|
Front-row electric doors and Windows | |
|
|
The driver's seat airbag | |
|
|
remote key | |
|
|
Original cab factory heating and cooling system | |
|
|
Multi-function steering wheel + Bluetooth + cruise system | |
|
|
LED running lights + front / rear fog lamp | |

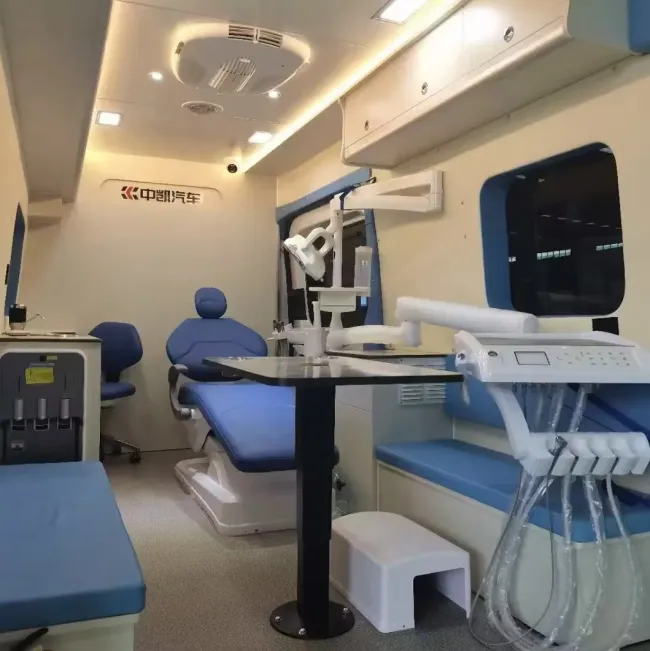

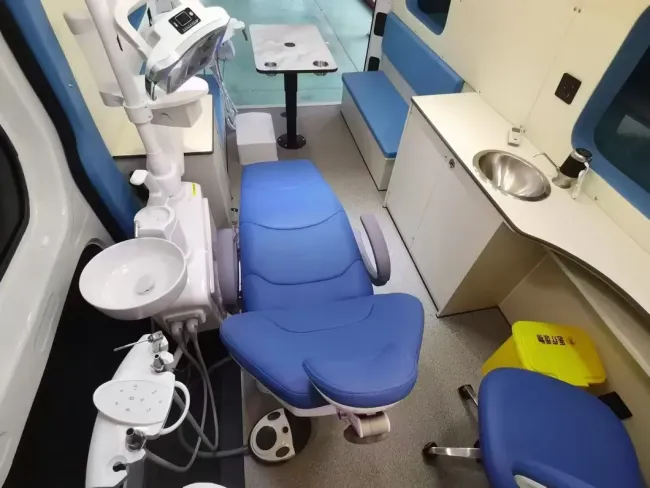

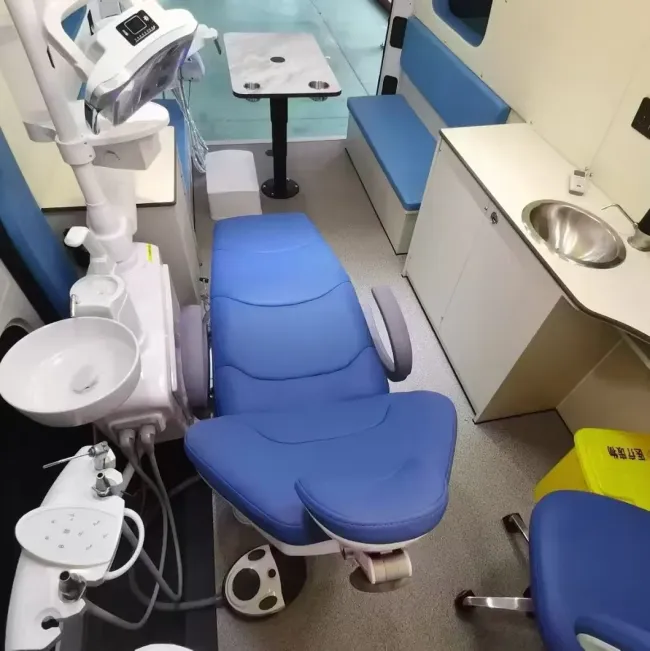

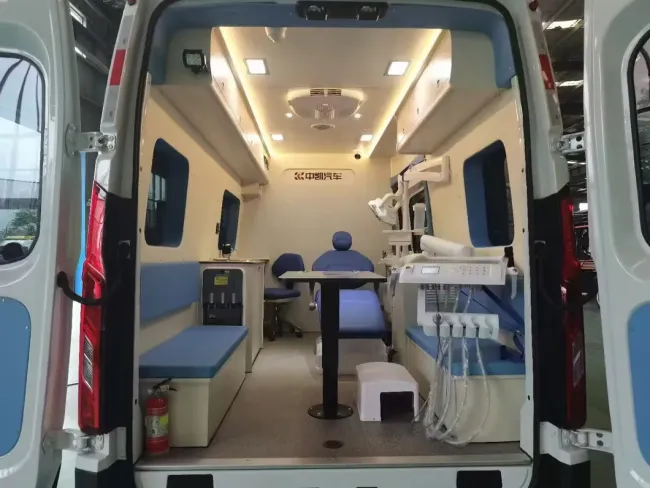

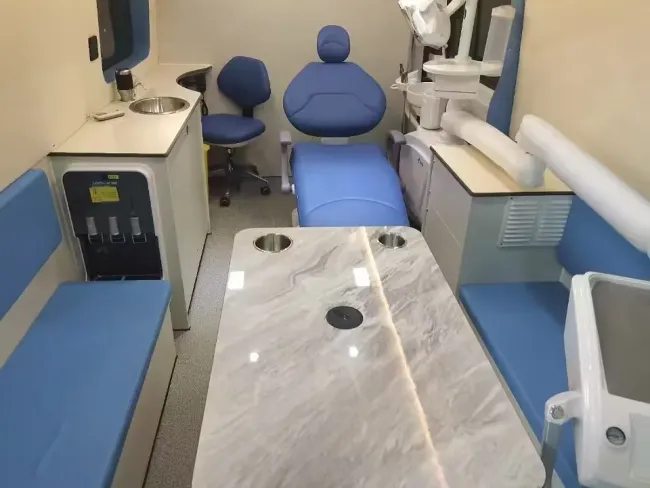

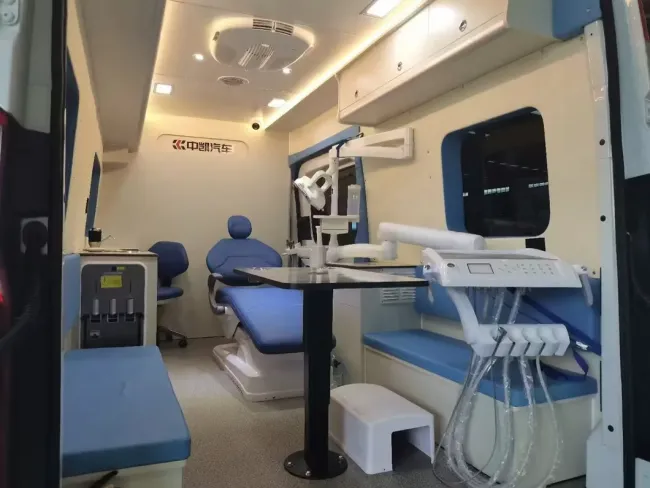

- Interior trim configuration of the medical cabin:
| order number | Configure the name | Configuration description | unit | quantity | |
| air conditioning system | |||||
| 1 | Top on-board air conditioning | Refrigeration capacity is 3000, heat capacity is 3000 | short for Taizhou | 1 | |
| Chamber circuit and electrical system | |||||
| 2 | The top lighting | The LED form, and at 12V | The cup | 4 | |
| 3 | Rear light | Rear door, LED form, 12V | The cup | 1 | |
| 4 | sterilamp | Timing, effective antivirus | The cup | 1 | |
| 5 | Inverter power system | With charging function, pure sine wave 2000W | cover | 1 | |
| 6 | Turn / straight socket | Combination socket, can be connected to three / two holes of the multi-functional socket, AC / DC dual use | group | 4 | |
| 7 | on-off system | piano-key switch | cover | 1 | |
| 8 | Integrated harness | Integrated circuit control and protection system | cover | 1 | |
| 9 | External power supply | wire spool | cover | 1 | |
| In-cabin production system | |||||
| 10 | Inside the top production | Polymer materials, antibacterial, anticorrosive, easy to clean | cover | 1 | |
| 11 | Medical floor | Overall plastic, waterproof, anticorrosion, wear-resistant, mildew proof, environmental protection, fire prevention | cover | 1 | |
| 12 | median septum | composite | cover | 1 | |
| 13 | In partition | Isolation and sealing from the cockpit | cover | 1 | |
| 14 | Registration office cabinet | composite | |||
| 15 | staging | composite | cover | 1 | |
| 16 | hanging wall case | Top left and right side crane cabinet | cover | 1 | |
| 17 | Soft bag seat | The rear rear left and right side of a long soft bag seat | cover | 2 | |
| 18 | Lift table | Two soft-pack seats in between | cover | 1 | |
