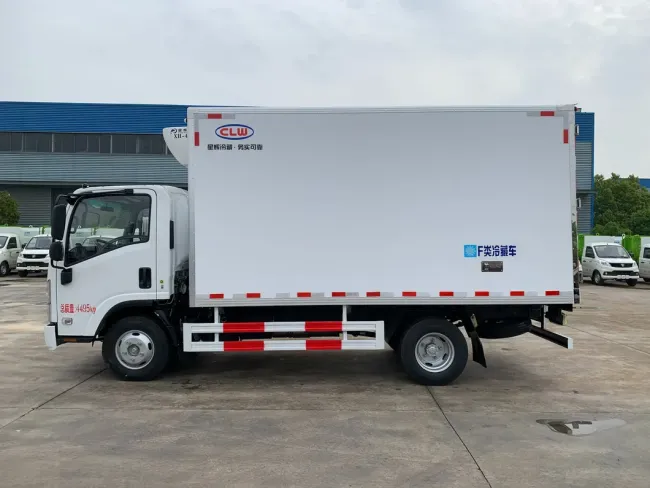

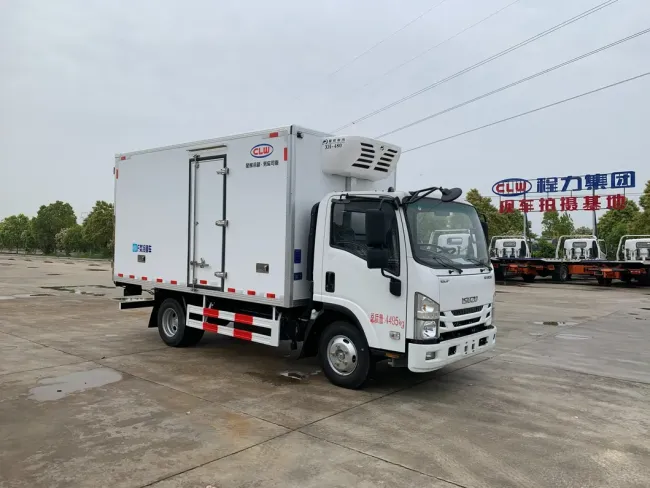

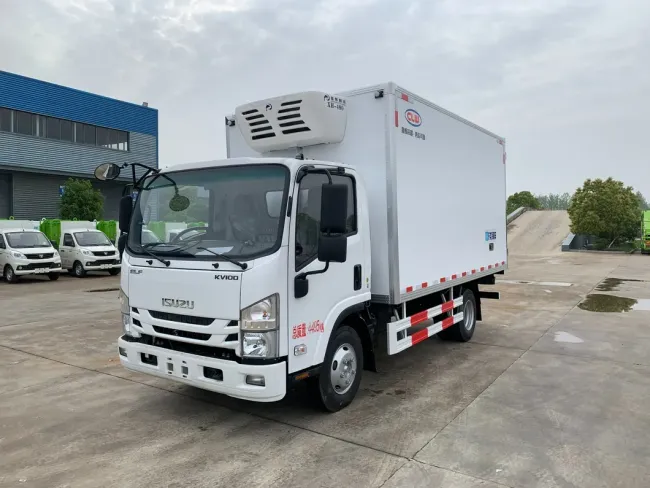

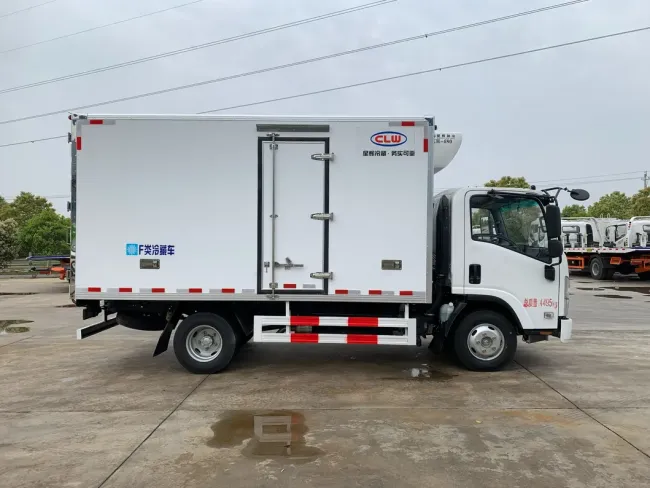

Isuzu Small Refrigerated Truck for Transporting Fruits , Vegetables , Beef
Price:
US $38,888 / Piece
MOQ:
1
Delivery Time:
15 working days
Product Description
Cheng Li Heavy Industry brand CLH5040XLCQ6 type refrigerated car
Vehicle dimensions: 5995 X 2260X 3180mm
Interior dimensions: 4200 X 2100 X 2100mm
Wheelbase: 3360mm
Total weight: 4495KG
Chassis configuration: Isuzu 3.0L/120HP diesel engine, 5-speed gearbox, 7.00R16 8PR steel wire tire, air brake, directional assist, air conditioning, electric doors and windows, ABS.
The high-end refrigerated compartment of Chengli adopts advanced wood technology and bridge insulation technology. The interior and exterior of the compartment are made of high-strength fiberglass, deeply embedded bolts, and seamlessly synthesized using large negative pressure equipment. It is formed in one go, with fast cooling speed, slow temperature dissipation, and good insulation effect. The middle is filled with 8CM advanced insulation board, and the bottom plate is made of 10CM thick seismic insulation durable thick plate. The sides of the compartment are wrapped with right angle aluminum profiles, and the rear door is locked with stainless steel fittings.
Choose different brands of refrigeration units
Optional activity meat hook frame
Optional ventilation duct
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Vehicle dimensions: 5995 X 2260X 3180mm
Interior dimensions: 4200 X 2100 X 2100mm
Wheelbase: 3360mm
Total weight: 4495KG
Chassis configuration: Isuzu 3.0L/120HP diesel engine, 5-speed gearbox, 7.00R16 8PR steel wire tire, air brake, directional assist, air conditioning, electric doors and windows, ABS.
The high-end refrigerated compartment of Chengli adopts advanced wood technology and bridge insulation technology. The interior and exterior of the compartment are made of high-strength fiberglass, deeply embedded bolts, and seamlessly synthesized using large negative pressure equipment. It is formed in one go, with fast cooling speed, slow temperature dissipation, and good insulation effect. The middle is filled with 8CM advanced insulation board, and the bottom plate is made of 10CM thick seismic insulation durable thick plate. The sides of the compartment are wrapped with right angle aluminum profiles, and the rear door is locked with stainless steel fittings.
Choose different brands of refrigeration units
Optional activity meat hook frame
Optional ventilation duct
| [Vehicle technical parameters] | |||
| Product trademark | Cheng Li Heavy Industry brand | Announcement batch | 385 |
| product name | chill car | product model | CLH5040XLCQ6 |
| gross mass (Kg) | 4495 | Tank volume (m3) | |
| Rated load mass (Kg) | 1100 | outline dimension (mm) | 59952180,22603030,3130,3230 (Optional) |
| curb weight (Kg) | 3200 | Goods Chamber Size (mm) | 40852000,21001900,2000,2100 (optional) |
| Number of passengers (person) | 3 | Maximum saddle load mass (Kg) | |
| Approach angle / departure angle of (°) | 22/16 | Front suspension / rear suspension (mm) | 1120/1510,1110/1525 |
| axle weight (Kg) | 1750/2745 | Top vehicle speed (Km/h) | 105 |
| [Chassis technical parameters] | |||
| Chassis model | QL1043BUHAY | Chassis name | truck chassis |
| brand name | Isuzu card | manufacturing enterprise | Automobile Co., LTD |
| number of axles | 2 | Number of tires | 6 |
| wheel base (mm) | 3365,3360 | ||
| tyre size | 7.00R16 8PR | ||
| Fuel types | diesel oil | rear track (mm) | 1655 |
| Emission basis standard | The GB17691-2018 countries | ||
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| 4KH1CN6LB 4KH1CN6HB |
Isuzu (Chongqing) Engine Co., Ltd Isuzu (Chongqing) Engine Co., Ltd |
2999 2999 |
88 97 |
