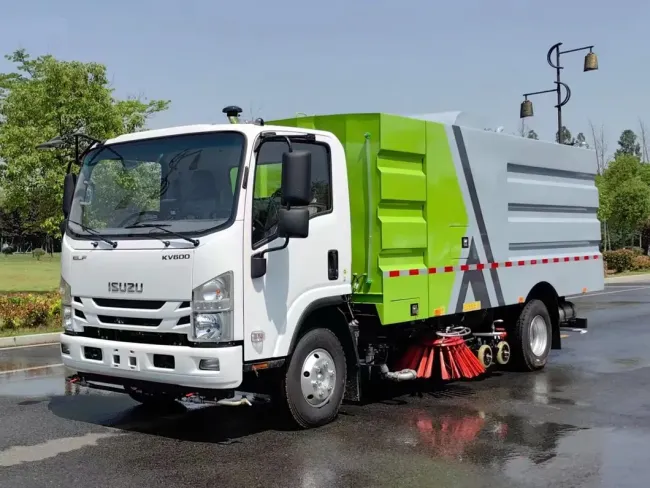

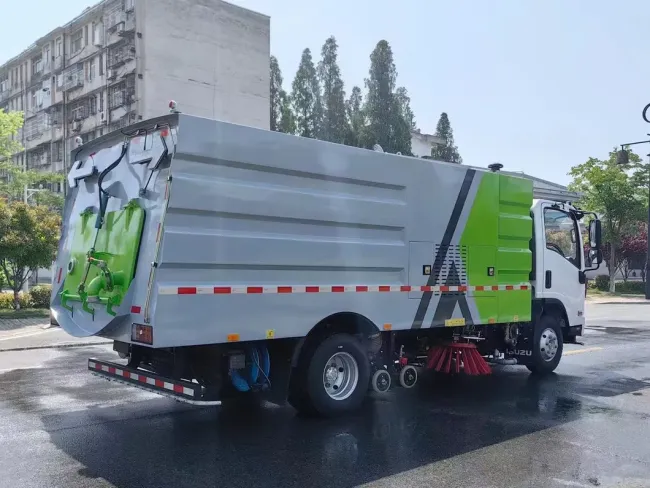

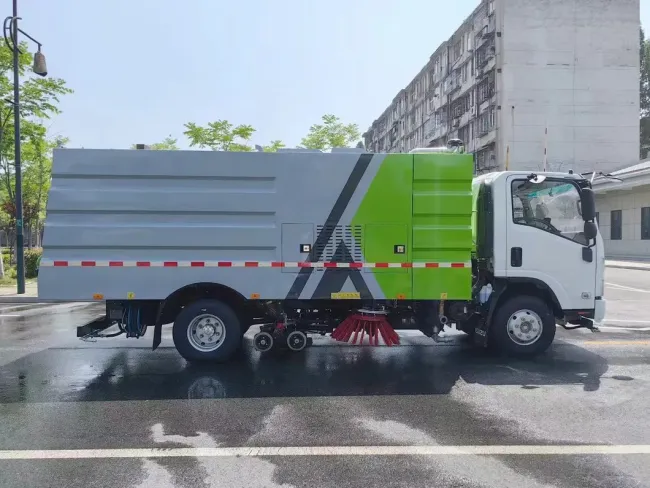

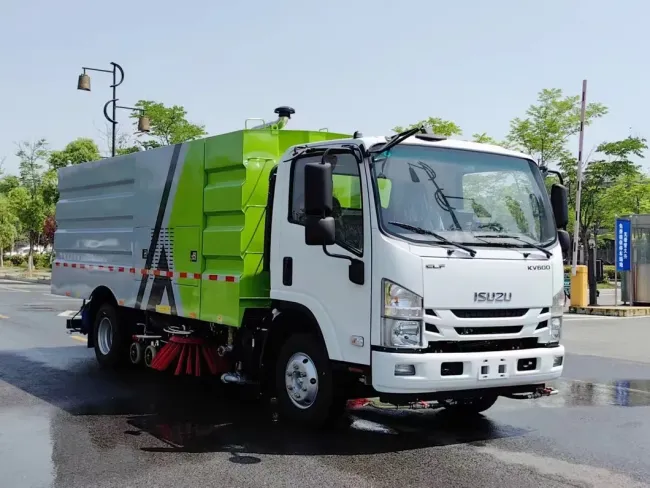

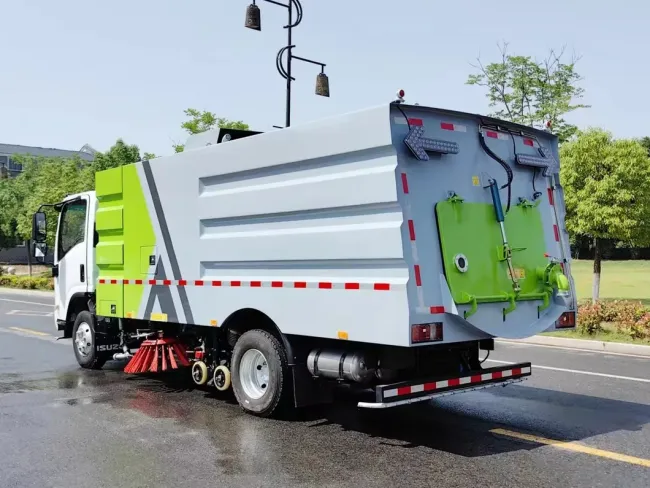

Isuzu 4X2 Heavy-Duty Road Sweeper Truck for Efficient Cleaning High Strength Isuzu 4X2 Street Sweeper Truck for Urban Maintenance
Price:
US $50,000-100,000
MOQ:
1
Delivery Time:
15 working days
Product Description
Cheng Liwei brand CLW5250TXSD6 type cleaning car
| [Vehicle technical parameters] | |||
| Product trademark | Cheng Liwei card | Announcement batch | 371 |
| product name | Wash the car | product model | CLW5250TXSD6 |
| gross mass (Kg) | 25000 | Tank volume (m3) | |
| Rated load mass (Kg) | 9070,9005,9870,9805 | outline dimension (mm) | 9600,9850,10600×2510×3350 |
| curb weight (Kg) | 15800,15000 | Goods Chamber Size (mm) | ×× |
| Rated passenger capacity (person) | Quasi-trailer total mass (Kg) | ||
| Number of passengers (person) | 2,3 | Maximum saddle load mass (Kg) | |
| Approach angle / departure angle of (°) | 20/12,20/10 | Front suspension / rear suspension (mm) | 1480/2420,1500/2400 |
| axle weight (Kg) | 7000 / 18000 (2-axial group) | Top vehicle speed (Km/h) | 89 |
| remarks | 1. The special device of the vehicle consists of a cleaning device, sucking-off plant, The combination of the dustbin and the flushing system, Mainly used for road cleaning operations; 2. Select the cab along with the chassis; 3. Vehicle length / front suspension / wheelbase / rear suspension correspondence is (mm): 9600 / 1480 (1500) / 4350 + 1350 / 2420 (2400), 9850/1480(1500)/4600+1350/2420(2400), 10600/1480(1500)/5350+1350/2420(2400); 4. Side protection is replaced by a special device sweep brush, The rear lower protection is welded with the frame, The material is Q235A carbon steel, Size of the rear protection section (mm): 28060, Height of the rear protection from the ground (mm): 400; 5.ABS model / manufacturer: 3631010-C2000 / East Noel Commercial Vehicle Brake System (Shiyan) Co., Ltd., ABS 8 / East Noel Commercial Vehicle Braking System (Shiyan) Co., Ltd., 4460046450 / Wiberco Automotive Control System (China) Co., LTD.; 6. Selected new appearance style on top. | ||
| [Chassis technical parameters] | |||
| Chassis model | DFH1250D4 | Chassis name | truck chassis |
| brand name | Dongfeng brand | manufacturing enterprise | Dongfeng Commercial Vehicle Co., Ltd |
| number of axles | 3 | Number of tires | 10 |
| wheel base (mm) | 4350+1350,5350+1350,5700+1350,4600+1350,4800+1350 | ||
| tyre size | 295/80R22.5 18PR,11.00R20 18PR | ||
| Number of steel plate spring sheets | 3/10,3/4,9/10,3/-,9/- | front gauge (mm) | 2010,2040,2070 |
| Fuel types | diesel oil | rear track (mm) | 1860/1860,1880/1880 |
| Emission basis standard | The GB17691-2018 countries | ||
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| D6.7NS6B290 DDi75E350-60 DDi75E300-60 DDi75E340-60 D6.7NS6B320 |
Dongfeng cumins Engines, Ltd Dongfeng Commercial Vehicle Co., Ltd Dongfeng Commercial Vehicle Co., Ltd Dongfeng Commercial Vehicle Co., Ltd Dongfeng cumins Engines, Ltd |
6700 7500 7500 7500 6700 |
213 257 220 250 231 |
1:What payment methods do you support? - We support T/T and LC and other ways you need. 2:What is your minimum order quantity? - One unit.
3. How about the delivery time? - Generally it will takes 10 to 30 days after receiving your deposit. The sactual date will be depended on your order and item. We will contact you if we confirm the delivery date. And we will track the goods all the time until the goods reach to the destination.
4.How can I confirm whether your products will meet my needs? -You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions.
5. How do you pack the products? - Standard shipping packaging.
6. How about the price? - To provide the top quality product with competitive price is our mission all the time. We want a long-term business relatonship with our customers rather than cooperate for once.
7. How can I trust you? - We have 15 years of experience in the trailer manufacturing field; and we have our own factory. - We have supplied for many famous company at home and abroad; - We want to provide great service for you rather than just provide a price and product for you; - To meet you is the first step, then we would like to make friends and maintain the business relationship with you all the time.
