The Most Favorable 20 Ton Truck Crane Factory Direct Supply 10 Ton 12 Ton Truck Crane Factory Direct Sales
Price:
US $16,800-46,800
MOQ:
1
Delivery Time:
15 working days
Product Description
Chinese manufacturers offer SHACMAN/SITRAK/ONGFENG/ISUZU 4X2 6X4 8X4 multi tonnage straight arm or folding arm gantry cranes at affordable prices
The most favorable Chengli 20t truck mounted crane comes with direct sales from the manufacturer
![]()
![]()
SHACMAN 4X2 6.3t Truck mounted crane
![]()
ISUZU GIGA 6.3t on-board crane
![]()
6X4 Isuzu 12T straight arm crane truck
![]()
The on-board crane can be equipped with a hydraulic rotary drilling rig and hydraulic grab bucket
![]()
![]()
ISUZU-G type 8-ton -5-section arm (wheelbase 5100mm)
(National VI 205HP horsepower)
4X2 single bridge
Model: XCL5166JSQL6
Engine: YCS04200-68
Wheelbase: 5100
Transmission: SC8JS85E-C original power take-off
Front and rear axles: 5T/10T
Frame: 280mm straight frame
Tire: 10.00R20 steel wire tire
Number of leaf springs: 9/11+8
Number of passengers allowed: 3 people
Container size: 6100 * 2400 * 550
Vehicle dimensions: 9000 * 2550 * 3750

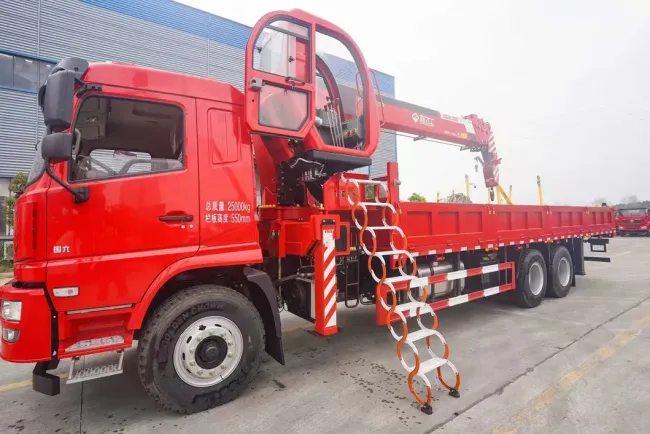

10t on-board crane with operating cab
![]()
![]()
![]()
![]()
![]()
![]()
![]()
The most favorable Chengli 20t truck mounted crane comes with direct sales from the manufacturer
SHACMAN 4X2 6.3t Truck mounted crane
| [Vehicle technical parameters] | |||
| Product trademark | The bell card | ||
| product name | truck with loading crane | product model | CLW 5180JS Q |
| gross mass (Kg) | 18000 | Tank volume (m3) | |
| Rated load mass (Kg) | 5705 | Overall dimensions (mm) | 9000×2530×3700 |
| Preparation mass (Kg) | 12100 | Goods Chamber Size (mm) | 5650×2430×600 |
| Rated passenger capacity (person) | Quasi-trailer total mass (Kg) | ||
| Number of passengers (person) | 3 | Maximum saddle load mass (Kg) | |
| Approach angle / departure angle of (°) | 15/12 | Front suspension / rear suspension (mm) | 1335/2115 |
| axle weight (Kg) | 6500/11500 | Top vehicle speed (Km/h) | 89 |
| remarks | |||
| [Chassis technical parameters] | |||
| Chassis model | QL1180JQFRY | Chassis name | truck chassis |
| brand name | Isuzu card | manufacturing enterprise | |
| number of axles | 2 | Number of tires | 6 |
| wheel base (mm) | 5550 | ||
| tyre size | 295/80R22.5 16PR | ||
| Number of steel plate spring sheets | 7/7+7 | front gauge (mm) | |
| Fuel types | diesel oil | rear track (mm) | 1855 |
| Emission basis standard | The GB17691-2018 countries | ||
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| 4HK1-TCG60 4HK1-TCG62 |
Isuzu (China) Engine Co., Ltd Isuzu (China) Engine Co., Ltd |
5193 5193 |
151 165 |
6X4 Isuzu 12T straight arm crane truck
The on-board crane can be equipped with a hydraulic rotary drilling rig and hydraulic grab bucket
ISUZU-G type 8-ton -5-section arm (wheelbase 5100mm)(National VI 205HP horsepower)
4X2 single bridge
Model: XCL5166JSQL6
Engine: YCS04200-68
Wheelbase: 5100
Transmission: SC8JS85E-C original power take-off
Front and rear axles: 5T/10T
Frame: 280mm straight frame
Tire: 10.00R20 steel wire tire
Number of leaf springs: 9/11+8
Number of passengers allowed: 3 people
Container size: 6100 * 2400 * 550
Vehicle dimensions: 9000 * 2550 * 3750
10t on-board crane with operating cab
