0805-152 Transparent Carrier Tape For SMT Component Packaging With PC Material, 8mm x 1500m Reel And Precise Cavity Fit
Product Description
This 0805-152 Transparent Carrier Tape is used for 0805 SMD component packaging, warehouse storage, transportation protection, SMT automatic feeding, and component sorting. It is manufactured from PC material and designed as a transparent non anti static carrier tape for customers who require visible pocket checking and stable reel packaging before component assembly.

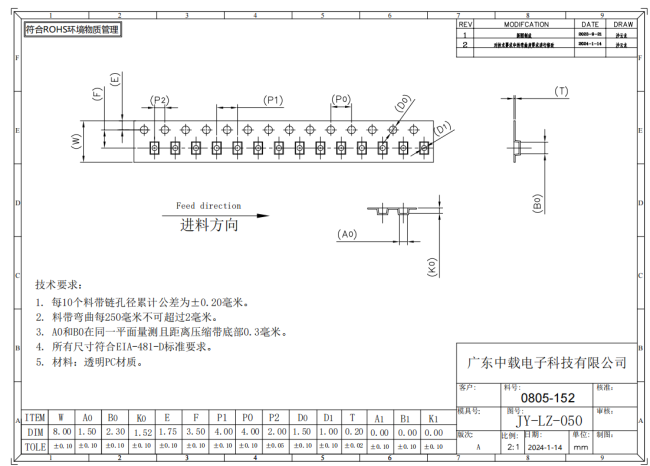

The tape specification is 8mm*1500m per reel, with pocket dimensions of A0 1.50mm, B0 2.30mm, and K0 1.52mm. The precise cavity fit helps keep 0805-152 components arranged in an orderly position during taping, winding, storage, and feeder use. The transparent appearance makes it easier for operators to check whether components are seated correctly inside the pocket, improving inspection convenience during packaging operations.
Features & Benefits
The PC material offers stable pocket forming performance and good transparency for production checking. The clear tape body supports direct observation of pocket shape, component position, and packaging cleanliness. This is especially useful for packaging lines that need quick visual confirmation without removing components from the reel.
The 8mm tape width is suitable for compact SMD component packaging, and the 1500m reel specification provides practical capacity for batch production. The K0 1.52mm depth offers stable vertical support for components, helping reduce shaking during reel movement and transportation. The embossed pocket structure also supports smooth supply into SMT feeder systems and helps improve packaging consistency.
Applications
This 0805-152 Transparent Carrier Tape is suitable for 0805 SMD component reel packaging, SMT automatic placement feeding, component warehouse storage, long distance transportation protection, and component sorting. It can be applied in electronic component distribution, SMT processing, semiconductor packaging, and electronics manufacturing.
Service & Support
GuangDong Zhongzai Electronic Technology Co., Ltd. provides carrier tape products according to different component models, pocket dimensions, tape widths, material choices, and production requirements. Customers can select suitable carrier tape based on component outline and packaging equipment needs. Keep the product indoors at room temperature and protect it from direct sunlight. Recommended storage condition is 23℃±5℃ and 65%±5% humidity. Avoid acid, alkali, and corrosive gas. Shelf life is 2 years when properly stored.
Specifications
| Specification | Details |
| Product Name | 0805-152 Transparent Carrier Tape |
| Product Model | 0805-152 |
| Carrier Tape Type | Transparent Carrier Tape |
| Material | PC |
| Material Property | Non Anti Static Material |
| Color | Transparent |
| Reel Specification | 8mm*1500m Per Reel |
| A0 Dimension | 1.50mm |
| B0 Dimension | 2.30mm |
| K0 Dimension | 1.52mm |
| Structure Feature | Precise cavity fit for 0805-152 SMD components |
| Working Principle | Components are placed into clear embossed pockets and supplied by reel to SMT feeder systems |
| Application | 0805 component packaging, storage, transportation, SMT feeding, sorting |
| Storage Condition | 23℃±5℃, 65%±5% humidity, avoid sunlight and corrosive gas |
| Shelf Life | 2 Years |
| Supplier | GuangDong Zhongzai Electronic Technology Co., Ltd. |
