The SCB-10 series three-phase epoxy resin cast dry-type transformer is a new generation of energy-saving distribution equipment that complies with IEC60076 and GB/T10228-2008 standards. It covers rated voltage levels of 10kV/20kV/35kV, and is mainly used for efficient conversion from 10kV high voltage to 400V low voltage distribution.

It can be directly installed at the load center, greatly reducing power loss and operation & maintenance costs in power transmission and distribution links. It is an ideal replacement for oil-immersed transformers, widely applicable to urban network renovation, high-rise buildings, airports, stations, ports, power plants, substations and other scenarios, especially suitable for special environments with strict fire prevention requirements for flammable and explosive materials.

Made of imported high-quality cold-rolled oriented silicon steel sheets with 45° full-oblique joint step lamination process, and the surface is sealed with epoxy resin encapsulation. This not only reduces the influence of magnetic leakage and optimizes magnetic circuit distribution, but also effectively reduces no-load loss and no-load current, realizing low-noise operation.

The core column is bound with Class F non-woven tape and fixed with yoke pull plate, which has strong mechanical stability and further controls operating noise.

• High-Voltage Winding: Adopts segmented layered structure to reduce interlayer voltage. It is vacuum cast with filled epoxy resin, embedded with DMD epoxy prepreg between layers, and reinforced with glass fiber grid cloth, which greatly reduces partial discharge, improves electrical performance and short-circuit resistance, and ensures no cracking of the coil during long-term operation.
• Low-Voltage Winding: Foil-wound structure with reserved axial cooling ducts to enhance heat dissipation efficiency. DMD epoxy prepreg is also used between layers, and the end is sealed with epoxy resin, integrally cured and molded, taking into account both conductivity efficiency and structural strength.

• The enclosure protection level can be selected as IP20/IP23, and the material supports customization of cold-rolled steel plate and stainless steel plate to meet the protection requirements of different installation environments.
• The enclosure is built-in with temperature control display and load recorder for intuitive monitoring of operating status.
• The cooling system adopts cross-flow side-blown fan, featuring low noise and high wind pressure, which enhances the overload capacity of the transformer.
• It supports dual modes of natural air cooling and forced air cooling, and can operate at 120% rated load under forced air cooling condition with excellent expansion performance.

The winding adopts high-power high-quality thickened copper busbar, with strong conductivity and high temperature resistance, suitable for long-term high-load operation. The insulating material selects Class F heat-resistant epoxy resin, combined with glass fiber reinforced structure, achieving multiple protections of flame retardant, moisture-proof and anti-pollution.

1. Energy-Saving and High-Efficiency: No-load loss is reduced by more than 30% compared with traditional products, with remarkable energy-saving effect, which can greatly reduce electricity costs during long-term operation, complying with national standards for energy-saving distribution equipment.
2. Safe and Flame-Retardant: Oil-free design eliminates the risk of oil leakage and explosion; epoxy resin insulating material is non-combustible and self-extinguishing, meeting fire protection standards, suitable for installation in high-risk environments.
3. Durable and Sturdy: High mechanical strength, strong resistance to short circuit and lightning impulse, no bubbles or voids in epoxy resin casting of winding, ensuring excellent stability during long-term operation.
4. Low-Noise and Environment-Friendly: Low operating noise, no oil pollution and no harmful gas emission, suitable for indoor, residential areas and other scenarios with strict environmental requirements.
5. Maintenance-Free and Convenient: Excellent moisture resistance, can be quickly dried and restored to operation after long-term shutdown without frequent maintenance, reducing operation and maintenance costs.
6. Wide Adaptability: Can operate stably in the range of altitude ≤1000m and ambient temperature -40℃~+40℃, with customizable protection level and enclosure material to meet the needs of multiple scenarios.

• Urban Infrastructure: High-rise residential buildings, commercial complexes, subways, airports, stations, meeting the requirements of low noise and fire prevention in densely populated areas
• Industrial Fields: Power plants, metallurgy, chemical industry, petrochemical plants, meeting the requirements of safe operation in flammable and explosive environments
• Power System: Urban network renovation, substation load center, realizing efficient power distribution and energy saving and loss reduction
• Special Scenarios: Nuclear power plants, ships, oil fields, becoming the core power supply equipment for key scenarios by virtue of flame retardant and corrosion resistance

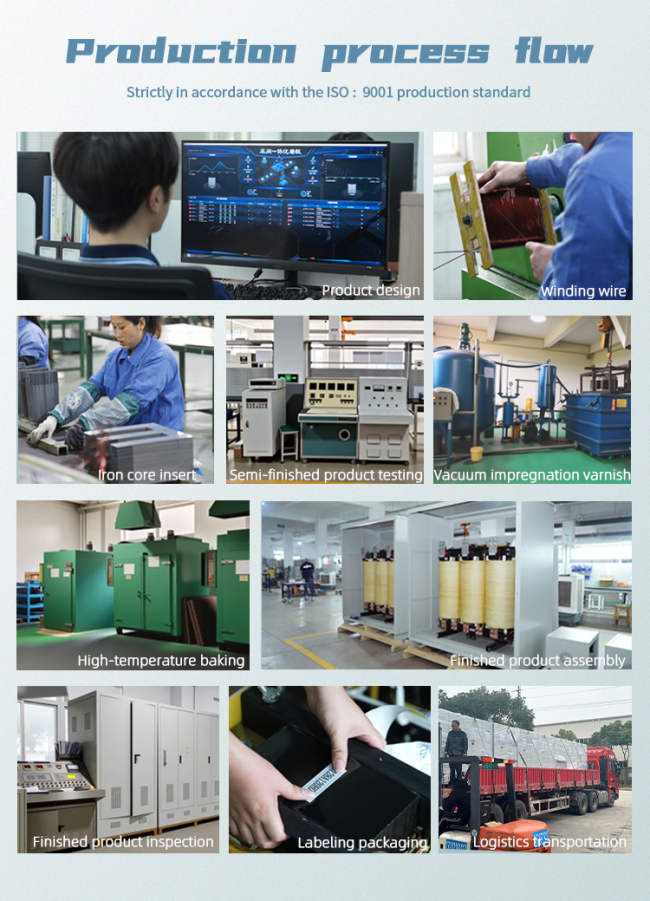

This series of SCB-10 dry-type transformers strictly follows the ISO9001 quality management system, and has passed the type test of the National Transformer Quality Supervision and Inspection Center. All core components are supplied by high-quality brand suppliers, and all performance tests are completed before delivery.

We provide one-stop services from selection design, manufacturing to installation and commissioning, support customized specifications (capacity, voltage, protection level, enclosure material) to ensure the product accurately matches project requirements. After-sales service provides lifelong technical support and spare parts supply to ensure long-term stable operation of the equipment.

A: Yes, we welcome sample order to test and check quality.

A: Mass production time 15-25 days.

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements. Customized services: a. Customized color and special function. b. Customized box. c. Print customer's logo. d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
