H01N2-D H01N2-E Rubber Cable AWG 16mm 25mm 35mm 35mm2 50mm2 70mm Copper Aluminium Rubber Welding Cable

Name: H01N2-D H01N2-E Rubber Cable AWG 16mm 25mm 35mm 35mm2 50mm2 70mm Copper Aluminium Rubber Welding Cable
Brand: Minfeng Cable Group Co., Ltd

Price Negotiable

Price: 0.1-5

MOQ: 100

Delivery Time: 10 Days

Brand: Minfeng

Product Description

Key attributes

Rated Voltage

Size

16mm 25mm2 35mm 35mm2 50mm2 70mm

Conductor Material

Copper

Insulation Material

Rubber

Working Temperature

90°C, 70°C

Jacket

Rubber

Application

Industrial

Rated Current

Type

Low Voltage

Place of Origin

Hebei, China

Model Number

Welding Cable

Brand Name

Minfeng

Product name

Welding Cable Wire

Voltage

450/750V

Standard

ASTM/IEC60245

Conductor

Copper/Tinned Copper

Sheath

PVC/Rubber

MOQ

1000M

Sample

Availabe

Warranty

1 Year

Type

Welding Cable Wire

Keywords

Rubber Cable welding cable

Rubber Cable Fire Retardant Welding Cable

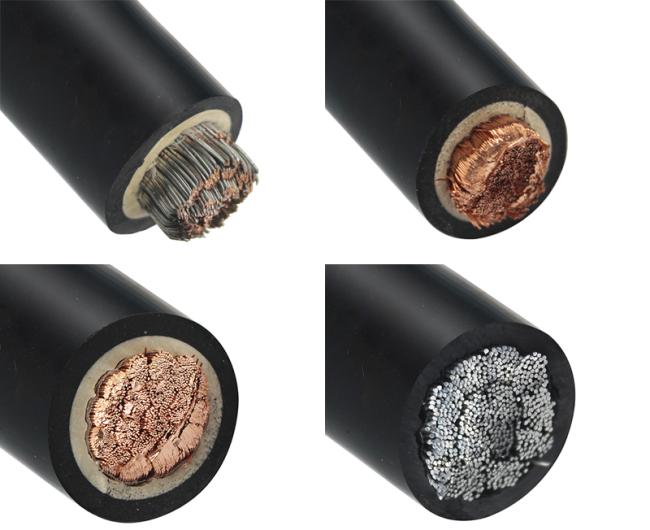

Welding cable is designed to transmit large currents from welding machines to welding tools. We can apply the flexible cable todifferent situation.Such as on assembly lines and conveyor systems, in machine tool and motor car manufacturing,ship building,for manually and automatically operated line and spot welding machines
Flexible welding cable are suitable for the connection between welding equipment and welding tools used in manual and automatic application. As well as welding robots on assembly lines used by the ship building and automobile industries. Welding flex cable is strong and durable. 600 volt welding cable is designed to carry high current under harsh operating conditions and to withstand the high temperature implied by their purpose.

Specification

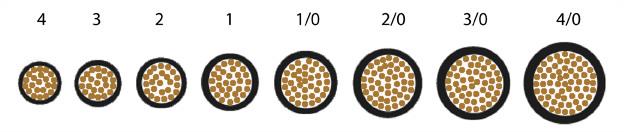

ASTM Standard Welding Cable Parameters
AWG	Nominal stranding		Nominal overall diameter		Approx. net weight (lbs/1000ft)	Max. conductor resistance at 20℃(Ω/km)
AWG	awg	mm	inch	mm	Approx. net weight (lbs/1000ft)	Max. conductor resistance at 20℃(Ω/km)
6	259/30	259/0.254	0.43	10.92	152	1.33
4	418/30	418/0.254	0.475	12.07	215	0.84
2	646/30	646/0.254	0.54	13.72	296	0.53
1	836/30	836/0.254	0.58	14.73	360	0.42
1/0	1032/30	1032/0.254	0.615	15.62	424	0.33
2/0	1290/30	1290/0.254	0.655	16.64	513	0.26
3/0	1672/30	1672/0.254	0.72	18.29	644	0.21
4/0	2066/30	2066/0.254	0.78	19.81	824	0.17

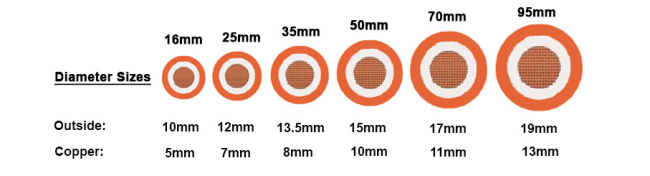

IEC Standard Welding Cable Parameters
Nom cross sectional area mm2	Conductor structure No./mm	Nom.thickness of sheath mm	Max.O.D mm	Cable approx, Weight Kg/km	Max D.C Resistance (20℃)Ω/km	Permissible current rating (A)
10	322/0.20	1.8	9.7	133	1.91	75
16	513/0.20	2	11.5	216	1.16	105
25	798/0.20	2	13	300	0.758	135
35	1121/0.20	2	14.5	406	0.536	170
50	1596/0.20	2.2	17	568	0.379	215
70	2220/0.20	2.4	19.5	780	0.268	265
95	2997/0.20	2.6	22	1037	0.198	325
120	1702/0.30	2.8	24	1314	0.161	380
150	2146/0.30	3	27	1644	0.129	435
185	1443/0.40	3.2	29	1957	0.106	496
