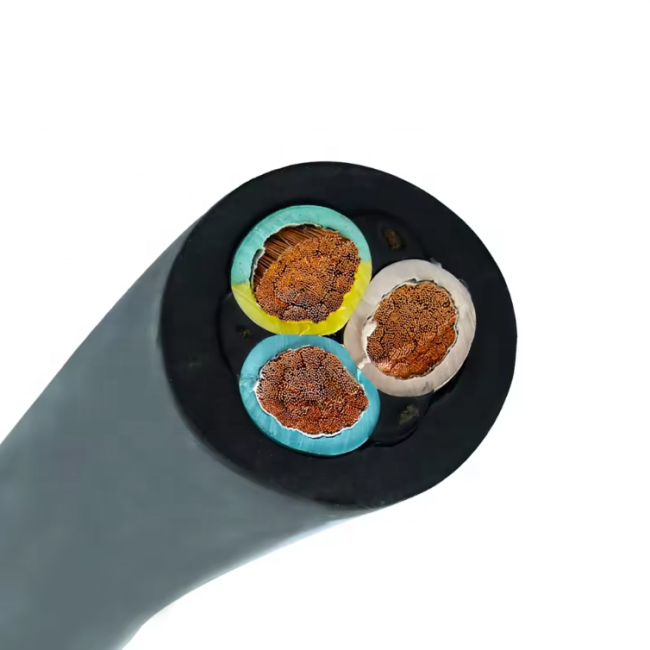

NTSCGEWOW 6KV 3.6/6KV Single 3 Core 3X240MM 3X300MM Medium Voltage EPR Insulation CM/CR Sheath Rubber Torsion Power Cable

Price Negotiable
Price: 0.1-5
MOQ: 100
Delivery Time: 10 Days
Brand: Minfeng
Product Description

Key attributes


Rated Voltage
/
Size
/
Conductor Material
Copper
Insulation Material
EPR
Working Temperature
90°C
Jacket
Rubber
Application
Industrial
Type
/
Place of Origin
Hebei, China
Model Number
NTSCGEWOW Rubber Cable
Brand Name
Minfeng
Product name
NTSCGEWOW Rubber Cable
Conductor
Copper
Insulation
EPR
Jacket
EPR
Rated voltage
3.6/6kv
MOQ
100 Meters
Type
Rubber Cable
Core
1 3 Cores
Product Description
Application:
Medium voltage cable available in single and multicores suitable for applications under torsional stresses, for energy
transmission and loop applications. Oil, ozone and UV resistant.

CONSTRUCTION
Conductor

Stranded Tinned Copper Wires
Insulation
Special EPR (Ethylene Propylene Rubber)
Outer Sheath
CM/CR (ChloroPolyethylene / Polychloroprene)
Sheath Colour
Black

CHARACTERISTICS
Rated Voltage Uo/U

3.6/6kV
Temperature Rating
-40C +90C
Minimum Bending Radius
10x Overall Diameter
Torsion Application
±100°/m

Product Paramenters
NUMBER OF CORES
NOMINAL CROSS
SECTIONAL AREA SIZE
mm²
NOMINAL OVERALL
DIAMETER
mm
NOMINAL WEIGHT
kg/km
1
240
42.8
3100
1
300
44.9
3800
3
35/35
61
5723
3
50/50
69
6596
3
70/70
73
7881
3
35/95
80
10612
