Braided 50 X 50mm Stainless Steel Wire Rope Mesh 3.0mm For Versatile Safety Solution
Price:
USD5-20/m2
MOQ:
10 square meters
Delivery Time:
within 2 weeks
Product Description
3.0MM Braided 50 X 50 Mm Stainless Steel Wire Rope Mesh For Versatile Safety Solution
Stainless Steel Braided Rope Mesh 50 X 50 Mm For Versatile Safety Solution
Introduction of Braided Rope Mesh
Stainless steel braided rope mesh is a durable and versatile safety solution used in various industries for fall protection, debris containment, crowd control, and more.
- Name: Zoo rope mesh, rope zoo mesh, Animal rope mesh
- Material: Inox304 /316
- Rope diameter: 2.0mm, 2.4mm, 3.2mm in common
- Opening size: According to the animals for protection (from 20mm-200mm)
- Accessories: Securely using carabiners, hooks, or tension cables
- Rope construction: 7X7, 7X19
Data Sheet of the Braided Rope Mesh
| Rope/Cable diameter | Mesh opening size | Nominal break |
|---|---|---|
| 1/8 inch (3.2 mm) | 4x4 inch (102x102 mm) | 1600 lbs. |
| 1/8 inch (3.2 mm) | 3x3 inch (76x76 mm) | 1600 lbs. |
| 1/8 inch (3.2 mm) | 2x2 inch (51x51 mm) | 1600 lbs. |
| 3/32 inch (2.4 mm) | 4x4 inch (102x102 mm) | 920 lbs. |
| 3/32 inch (2.4 mm) | 3x3 inch (76x76 mm) | 920 lbs. |
| 3/32 inch (2.4 mm) | 2x2 inch (51x51 mm) | 920 lbs. |
| 5/64 inch (2.0 mm) | 3x3 inch (76x76 mm) | 676 lbs. |
| 5/64 inch (2.0 mm) | 2x2 inch (51x51 mm) | 676 lbs. |
| 5/64 inch (2.0 mm) | 1-1/2x1-1/2 inch (38x38 mm) | 676 lbs. |
| 1/16 inch (1.6 mm) | 3x3 inch (76x76 mm) | 480 lbs. |
| 1/16 inch (1.6 mm) | 2x2 inch (51x51 mm) | 480 lbs. |
| 1/16 inch (1.6 mm) | 1-1/2x1-1/2 inch (38x38 mm) | 480 lbs. |
| 1/16 inch (1.6 mm) | 1x1 inch (25.4x25.4 mm) | 480 lbs. |
| 3/64 inch (1.2 mm) | 1-1/2x1-1/2 inch (38x38 mm) | 270 lbs. |
| 3/64 inch (1.2 mm) | 1x1 inch (25.4x25.4 mm) | 270 lbs. |
| 3/64 inch (1.2 mm) | 4/5x4/5 inch (20x20 mm) | 270 lbs. |
Features of the Braided Rope Mesh
- Material: Made from high-quality stainless steel (typically 304 or 316 grade) for corrosion resistance and strength.
- Construction: Braided or woven into a flexible yet sturdy mesh structure.
- High Tensile Strength: Capable of withstanding heavy loads and impacts.
- Flexibility: Allows for easy installation on curved or irregular surfaces.
- Weather Resistance: Suitable for indoor and outdoor use, resistant to UV rays, moisture, and extreme temperatures.
- Fire Resistance: Non-combustible, making it ideal for fire-prone environments.
- Long Lifespan: Low maintenance and highly durable.
Packing of the Braided Rope Mesh

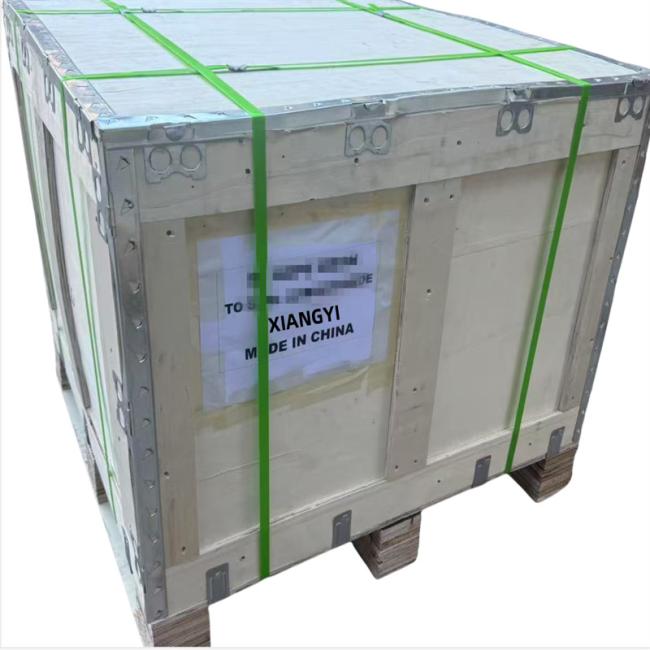

- The zoo rope mesh without frame would be packed in rolls with plastic film, then put into wooden cases.
- The zoo rope mesh with frame would be fastened on pallets.
Application of the Braided Rope Mesh
- Fall Protection:
- Safety netting for construction sites, bridges, and elevated platforms.
- Balcony and stairway barriers.
- Debris Containment:
- Prevents falling objects in demolition or construction zones.
- Used in scaffolding and high-rise buildings.
- Industrial Safety:
- Machine guarding in factories.
- Protective barriers around hazardous equipment.
- Marine & Offshore:
- Safety nets for ships, oil rigs, and docks.
- Crowd Control & Security:
- Barrier mesh for stadiums, events, and public spaces.

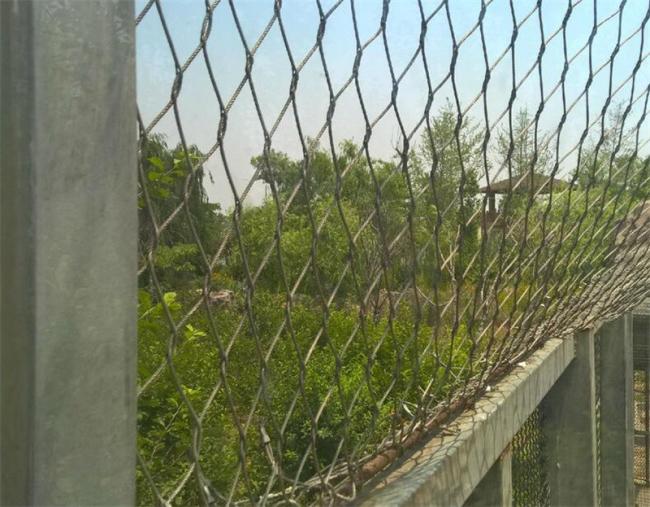

- Architectural & Decorative Use:
- Combines safety with aesthetics in modern designs (e.g., railings, façades).
