7 × 7 Knotted Type Stainless Steel Cable Mesh Fence For Balustrade Infill System
Price:
USD8-26/M2
MOQ:
10 square meters
Delivery Time:
within 7 work days
Brand:
HUIHAO CUSTOM
Product Description
7 × 7 Knotted Type Stainless Steel Cable Mesh Fence For Balustrade Infill System
Knotted Type Stainless Steel Cable Mesh Fence Used For Balustrade Infill System
Description Of Stainless Steel Cable Mesh Fence:
Flexible stainless steel cable mesh is a hand-woven mesh made of high-quality stainless steel cables. There are two connection methods for adjacent ropes to form diamond mesh patterns: knotted rope mesh and ferrule rope mesh.

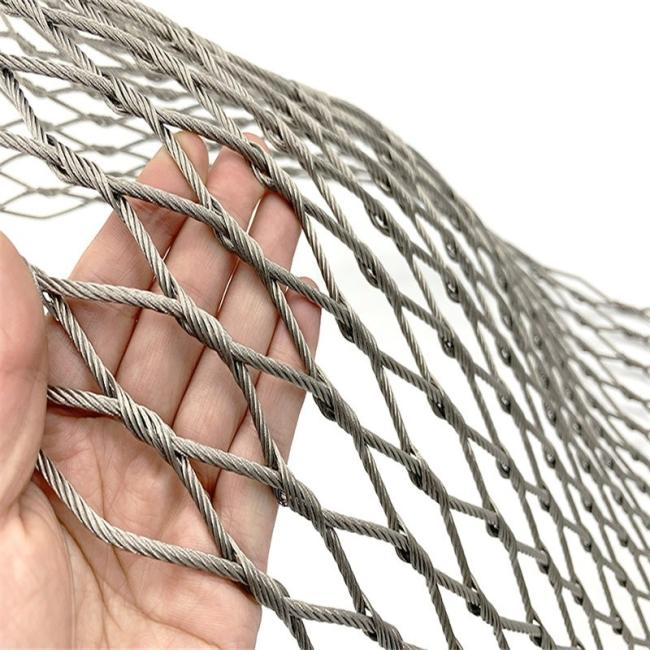

Knotted cable mesh: Features interwoven parallel ropes with knots that maintain consistent rhombus mesh openings.

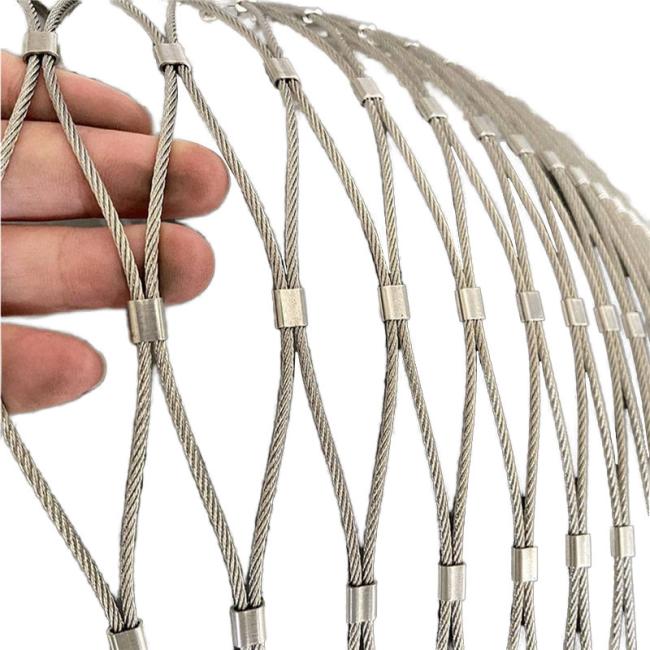

Ferrule cable mesh: Uses metal ferrules to fix parallel cable pairs without knots, maintaining stable aperture sizes.
Products name: Stainless Steel Cable Mesh Fence
Material: SS 304, 304L, 316, 316L
Features: Light weight, flexibility, high strength, transparency, durability (30+ year lifespan)
Applications: Zoo enclosures, animal habitats, balcony infills, safety nets, garden fencing
Design and installation: Customizable designs with professional installation solutions
Specification Of Stainless Steel Cable Mesh Fence:
| Stainless Steel Cable Mesh Fence Type | Knotted cable mesh | Ferrule cable mesh |
|---|---|---|
| IMAGE |  |
 |
| Feature | Quality material, High flexibility, Anti-corrosion, Longevity, Cost effective, Easy installation | |
| Advantages |
|
|
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L | |
| Diamond size | 20 ~ 200 mm | |
| Cable diameter | 1 ~ 4 mm | |

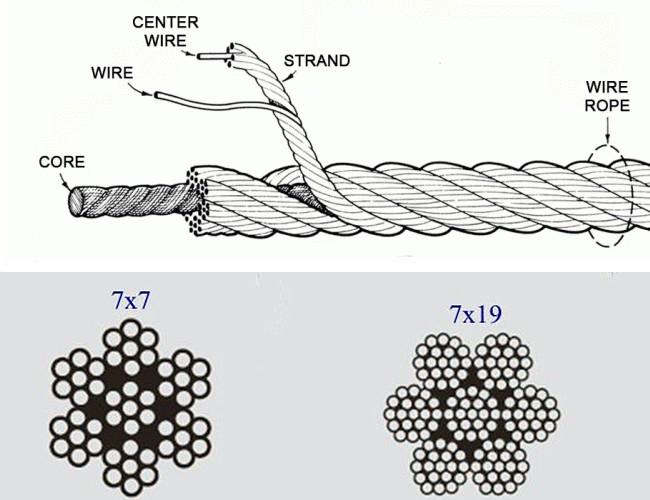

| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Cable structure image |  |
|
Stainless Steel Cable Mesh (Ferrule Type), 7 × 7 Construction Wire Rope
| Mesh Aperture Width × Height (mm) | Wire Rope Diameter (mm) | Minimum Breaking Load (kN) |
|---|---|---|
| 25x40 | 1.0 | 0.6 |
| 25x40 | 1.6 | 1.5 |
| 30x50 | 1.0 | 0.6 |
| 30x50 | 1.6 | 1.5 |
| 35x60 | 1.0 | 0.6 |
| 35x60 | 1.6 | 1.5 |
| 35x60 | 2.0 | 2.5 |
| 40x70 | 1.0 | 0.6 |
| 40x70 | 1.6 | 1.5 |
| 40x70 | 2.0 | 2.5 |
| 50x88 | 1.0 | 0.6 |
| 50x88 | 1.6 | 1.5 |
| 50x88 | 2.0 | 2.5 |
| 50x88 | 3.0 | 5.7 |
| 50x88 | 4.0 | 10.1 |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
1.0 | 0.6 |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
1.6 | 1.5 |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
2.0 | 2.5 |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
3.0 | 5.7 |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
4.0 | 10.1 |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 |
5.0 | 15.9 |
Stainless Steel Cable Mesh (Knotted), 7 × 7 Construction Wire Rope
| Mesh Aperture Width × Height (mm) | Wire Rope Diameter (mm) | Minimum Breaking Load (kN) |
|---|---|---|
| 25x25 | 1.2 | 0.8 |
| 25x25 | 1.6 | 1.5 |
| 30x30 | 1.2 | 0.8 |
| 30x30 | 1.6 | 1.5 |
| 40x40 | 1.2 | 0.8 |
| 40x40 | 1.6 | 1.5 |
| 40x40 | 2 | 2.5 |
| 50x50 | 1.2 | 0.8 |
| 50x50 | 1.6 | 1.5 |
| 50x50 | 2 | 2.5 |
| 60x60 | 1.2 | 0.8 |
| 60x60 | 1.6 | 1.5 |
| 60x60 | 2 | 2.5 |
| 60x60 | 2.4 | 3.4 |
| 60x60 | 3 | 5.7 |
| 75x75; 90x90 100x100;120x120 |
1.2 | 0.8 |
| 75x75; 90x90 100x100;120x120 |
1.6 | 1.5 |
| 75x75; 90x90 100x100;120x120 |
2 | 2.5 |
| 75x75; 90x90 100x100;120x120 |
2.4 | 3.4 |
| 75x75; 90x90 100x100;120x120 |
3 | 极5.7 |
| 75x75; 90x90 100x100;120x120 |
4 | 10.1 |
Stainless Steel Cable Mesh, 7 × 19 Construction Wire Rope
| Mesh Aperture Width × Height (mm) | Wire Rope Diameter (mm) | Minimum Breaking Load (kN) |
|---|---|---|
| 150x260 | 3.2 | 7.38 |
| 120x208 | 3.2 | 7.38 |
| 100x173 | 3.2 | 7.38 |
| 90x156 | 3.2 | 7.38 |
Package & Delivery Of Stainless Steel Wire Rope Mesh:
- Rolls wrapped in plastic film, packed in wooden cases
- Framed mesh panels packed in wooden cases
- Custom packaging solutions available
