High Strength Corrosion Resistant Stainless Steel Wire Rope Mesh with 50MM Aperture for Stadium Perimeter Netting
Price:
USD10-USD28/M2
MOQ:
1 sqaure meter
Delivery Time:
within 7 days
Brand:
HUIHAO KASITE
Product Description
Stainless Steel Wire Rope Stadium Perimeter Netting & Fixing System Sports Venue Safety Barrier Mesh
Product Overview
Stainless Steel Wire Rope Stadium Perimeter Net Fixations And Detail Solutions
A stainless steel wire rope stadium perimeter net is a new type of protective barrier system woven from high-strength stainless steel cables. It is increasingly used in various modern sports venues as a replacement for traditional welded wire mesh, expanded metal sheets, or chain-link fences, thanks to its exceptional transparency, superior safety performance, aesthetically pleasing appearance, and long-term durability.
Applicable Stadium Scenarios
- Spectator Barrier Nets: Isolate the stands from the playing area to prevent spectator intrusion or objects falling onto the field.
- Field Boundary Nets: Used for football/soccer fields, basketball courts, tennis courts, baseball fields, etc., to contain balls within the playing area.
- High-Altitude Safety Nets: Installed beneath canopies or elevated stands to prevent objects from falling from height.
- Passageway Isolation Nets: Used for isolating and securing areas such as player tunnels and VIP access routes.
- Training Ground Divider Nets: Segment large training grounds into multiple independent zones.
Key Technical Parameters & Selection Guidelines
| Parameter Item | Description & Options | Recommendation |
|---|---|---|
| Material | Grade 304 Stainless Steel: General purpose, good corrosion resistance, suitable for most inland environments. Grade 316 Stainless Steel: Enhanced corrosion resistance, especially suitable for coastal areas, high humidity, or sites near industrial zones. | Select based on the stadium's location. Grade 304 is sufficient for inland cities; Grade 316 is recommended for coastal regions. |
| Cable Diameter | Typically 2mm - 5mm. Larger diameters increase strength and safety but also cost. | 3-4mm is common for spectator barriers; 4-5mm is typical for field boundaries (containing high-speed balls). |
| Mesh Shape & Size | Diamond mesh is most common. Sizes typically range from 50x50mm to 100x100mm. | Smaller meshes (e.g., 50mm) offer denser protection against small objects; larger meshes (e.g., 80mm) provide better light transmission and ventilation. Balance safety with visibility. |

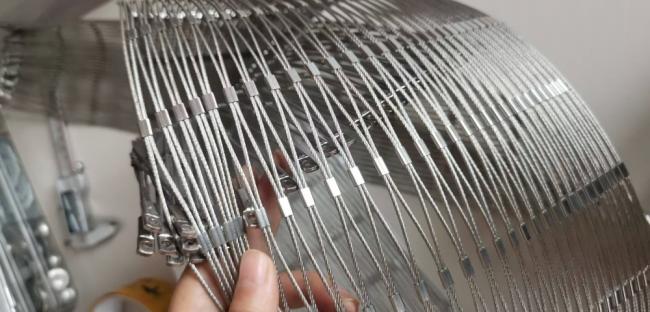

| Construction Type | Swaged/Braided: Common, stable structure. Pressed Sleeve (Cable-Operated): Stronger nodal points, enhanced integrity and safety, slightly higher cost. | For areas requiring high protection levels (e.g., high-altitude nets), the pressed sleeve construction is recommended. |
| Frame & Fixing | Requires a border fixing system, typically a stainless steel frame (square or round tube). The net edges are secured to the frame using clamping strips and bolts. | The frame material and specification (e.g., 38x38mm square tube) must be structurally calculated based on net tension and height to ensure overall stability. |
| Surface Finish | Stainless steel natural (bright), Brushed. | A brushed finish offers a more upscale appearance and helps reduce light glare. |
Installation Process Overview
- Site Survey & Design: Precisely measure installation dimensions; design the Stainless Steel Wire Rope Stadium Perimeter Net layout, support structure placement, and tensioning plan.
- Embedded Parts/Foundation Work: Install anchor plates into concrete structures (like floors, walls) or prepare foundations according to the design.
- Support Structure Installation: Weld or bolt the pre-fabricated stainless steel posts and border frame onto the embedded parts.
- Stainless Steel Wire Rope Stadium Perimeter Net Installation & Tensioning:
- Unroll the custom-made stainless steel wire rope net.
- Use specialized tensioning tools (e.g., tensioning jacks) to stretch the net to the predetermined tension.
- Securely fasten the net edges to the border frame using stainless steel clamping strips and bolts.
Specification Details of Wire Rope Mesh
| Rope Construction | Rope Diameter | Opening Size | Breaking Force |
|---|---|---|---|
| 7 * 19 | 1/8" (3.2mm) | 4.7" * 4.7" (120 * 120mm) | 7.38 KN |
| 7 * 19 | 1/8" (3.2mm) | 4" * 4" (102 * 102mm) | 7.38 KN |
| 7 * 19 | 1/8" (3.2mm) | 3.6" * 3.6" (90 * 90mm) | 7.38 KN |
| 7 * 19 | 1/8" (3.2mm) | 3" * 3" (76 * 76mm) | 7.38 KN |
| 7 * 19 | 1/8" (3.2mm) | 2" * 2" (51 * 51mm) | 7.38 KN |
| 7 * 7 | 3/32" (2.4mm) | 4" * 4" (102 * 102mm) | 4.18 KN |
| 7 * 7 | 3/32" (2.4mm) | 3.6" * 3.6" (90 * 90mm) | 4.18 KN |
| 7 * 7 | 3/32" (2.4mm) | 3" * 3" (76 * 76mm) | 4.18 KN |
| 7 * 7 | 3/32" (2.4mm) | 2.4" * 2.4" (60 * 60mm) | 4.18 KN |
| 7 * 7 | 3/32" (2.4mm) | 2" * 2" (51 * 51mm) | 4.18 KN |
| 7 * 7 | 5/64" (2mm) | 3" * 3" (76 * 76mm) | 3.17 KN |
| 7 * 7 | 5/64" (2mm) | 2.4" * 2.4" (60 * 60mm) | 3.17 KN |
| 7 * 7 | 5/64" (2mm) | 2" * 2" (51 * 51mm) | 3.17 KN |
| 7 * 7 | 5/64" (2mm) | 1.5" * 1.5" (38 * 38mm) | 3.17 KN |
| 7 * 7 | 1/16" (1.6mm) | 3" * 3" (76 * 76mm) | 2.17 KN |
| 7 * 7 | 1/16" (1.6mm) | 2" * 2" (51 * 51mm) | 2.17 KN |
| 7 * 7 | 1/16" (1.6mm) | 1.5" * 1.5" (38 * 38mm) | 2.17 KN |
| 7 * 7 | 1/16" (1.6mm) | 1.2" * 1.2" (30 * 30mm) | 2.17 KN |
| 7 * 7 | 1/16" (1.6mm) | 1" * 1" (25 * 25mm) | 2.17 KN |
| 7 * 7 | 3/64" (1.2mm) | 2" * 2" (51 * 51mm) | 1.22 KN |
| 7 * 7 | 3/64" (1.2mm) | 1.5" * 1.5" (38 * 38mm) | 1.22 KN |
| 7 * 7 | 3/64" (1.2mm) | 1.2" * 1.2" (30 * 30mm) | 1.22 KN |
| 7 * 7 | 3/64" (1.2mm) | 1" * 1" (25 * 25mm) | 1.22 KN |
| 7 * 7 | 3/64" (1.2mm) | 0.8" * 0.8" (20 * 20mm) | 1.22 KN |
