Copper Coated Steel 3x65mm Cd Welder Insulation Pins Attaching Insulation To Metals
Copper Coated Steel 3x65mm CD Welder Insulation Pins Attaching Insulation To Metals
Quick Details Of The 3x65mm CD Welder Insulation Pins
CD Welder Insulation Pins are made of annealed mild steel wire for easy bending.
CD Welder Insulation Pins are with copper coated or zinc coated for anti-corrosion, and copper
coating is more common.
CD Welder Insulation Pins are widely used for attaching insulation to various metals, with the
use of a CD welder.
|
Factory Hebei HUIHAO Metal Product Co.,Ltd Name Copper Coated Steel 3x65mm CD Welder Insulation Pins Attaching Insulation To Metals Material 3mm 65mm Samples supported |
Specifications Of The CD Welder Insulation Pins
|
Length |
25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 100mm, 110mm, 125mm 150mm etc. |
|
Diameter |
10GA(3.4mm), 3mm, 12GA(2.7mm) 14GA(2.0mm) |
|
Material |
Stainless steel, mild steel, aluminum |
|
Surface |
Stainless steel: polishing, passivation |
|
Features |
Standard weld points, easy welding |
| Application |
CD Welder Insulation Pins could be applied for the insulation of HVAC ducts, pipes, buildings, incinerators, equipment exposed to fire, plane cabins, spacecrafts, water towers, warehouses, and much more. Steel structures insulated can against corrosion and high temperatures. |
|
Supply Capability |
10000 pcs/hour |
|
Remark |
Technical parameters are available upon request |
Self-Locking Washers Of The CD Welder Insulation Pins
 |
 |
|

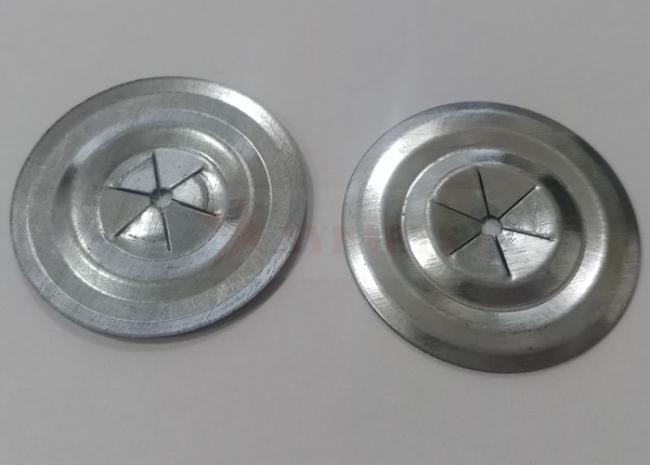

Name:Self-locking Washers Material: galvanized steel Size: 30mm 32mm 38mm etc. To Fix: 2.7mm 3mm 3.4mm etc. pins |

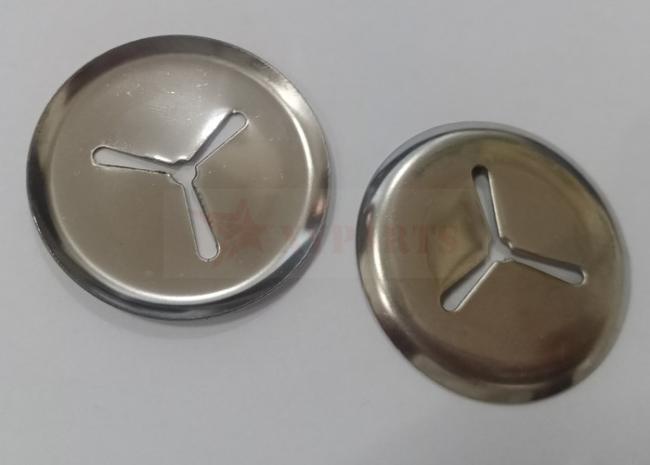

Name:Self-locking Washers Material: stainless steel Size: 30mm 32mm 38mm etc. To Fix: 2.7mm 3mm 3.4mm etc. pins |
 |
 |
|
Name:Self-locking Washers Material: stainless steel Size: 38mm etc. To Fix: 3mm & 5mm pins |

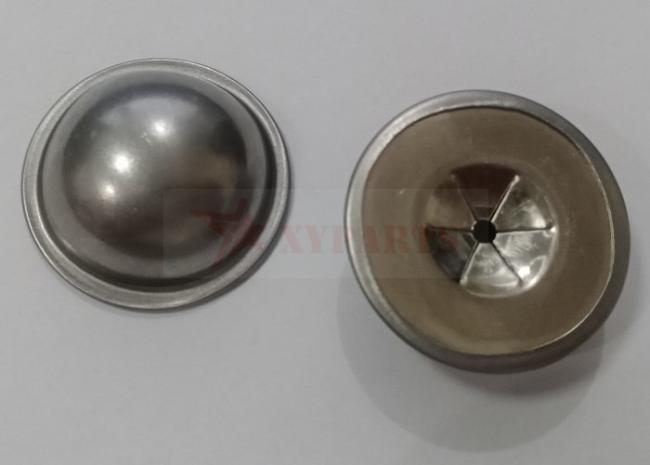

Name:Dome Cap Washers Material: stainless steel Size: 22mm 30mm 32mm 38mm etc. To Fix: 2.7mm 3mm 3.4mm etc. pins |
 |
 |
|
Name:Self-locking Washers Material: galvanized steel Size: 32mm 38mm etc. To Fix: 2.7mm 3mm 3.4mm etc. pins |
Name:Self-locking Washers Material: stainless steel Size: 50mm 63.5mm 65mm etc. To Fix: 2.7mm 3mm 3.4mm etc. pins |
Package Of The CD Welder Insulation Pins
|
1. 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ), 2. 10 bags in one carton box, 3. then in one pallet 4. the package can be can according your request |
Advantage Of HUIHAO Product Co.Ltd.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience for the cd weld pins, our products are in line with
international standard.
4) Good after-sale service: we offer good after-sale service for each order.
