Online CEMS Continuous Emission Monitoring System For Vocs Gas Chromatography Fid Hydrocarbon Analyzer
Price:
USD10000-20000
MOQ:
1 Unit
Delivery Time:
10-15 working days
Brand:
JUGE
Product Description
Online Vocs Gas Chromatography Fid Non-Methane Total Hydrocarbon Continuous Emission Monitoring System Gas Analyzer
>>Overview
Used for real-time concentration online monitoring of volatile organic compounds (VOCs) emitted from industries such as petrochemical industry, spray painting, injection molding, coatings, printing and dyeing, electronics, and automotive manufacturing.
The system uses advanced GC-FID+high-temperature complete extraction technology, capable of measuring multiple parameters including methane, total hydrocarbons, non-methane total hydrocarbons, temperature, pressure, flow rate (flow), O2, humidity, and can be expanded to measure benzene series or other characteristic factors.
The sample gas passes through a dust-removal probe and is heated by a trace-heating tube before entering the high-temperature chromatograph for analysis, effectively preventing sample loss during collection and analysis. It offers excellent stability for data upload and maintenance.
>>Feature
1) The core instrument uses imported multi-port valve design with no dead volume, ensuring measurement precision and accuracy.
2) Equipped with a high-sensitivity detector and low detection limit.
3) Automatic fault recording for easy maintenance.
4) Automatic hydrogen gas source cutoff in case of flameout or hydrogen leak.
5) Expandable for additional monitoring factors.
>>Main technical parameters
The system uses advanced GC-FID+high-temperature complete extraction technology, capable of measuring multiple parameters including methane, total hydrocarbons, non-methane total hydrocarbons, temperature, pressure, flow rate (flow), O2, humidity, and can be expanded to measure benzene series or other characteristic factors.
The sample gas passes through a dust-removal probe and is heated by a trace-heating tube before entering the high-temperature chromatograph for analysis, effectively preventing sample loss during collection and analysis. It offers excellent stability for data upload and maintenance.
>>Feature
1) The core instrument uses imported multi-port valve design with no dead volume, ensuring measurement precision and accuracy.
2) Equipped with a high-sensitivity detector and low detection limit.
3) Automatic fault recording for easy maintenance.
4) Automatic hydrogen gas source cutoff in case of flameout or hydrogen leak.
5) Expandable for additional monitoring factors.
>>Main technical parameters
| Items | Parameter | ||
| NMTHC Monitoring Unit | NMTHC | (0-100)Mgc/m3,OEM | |
| O2 | (0-25)% | ||
| Repeatability | ≤2% | ||
| 24-Hour Zero Drift And Range Drift | ≤±2%F.S. | ||
| One Week Zero Drift And Range Drift | ≤±3%F.S. | ||
| Linearity Error | ≤±2%F.S. | ||
| Analysis Cycle | ≤120s | ||
| Flue Gas Parameter | Temperature | Range | (0-300)ºC,OEM |
| Accuracy | ≤±3ºC | ||
| Pressure | Range | (-2.5-2.5)Kpa | |
| Accuracy | ≤0.5% | ||
| Velocity Of Flow | Range | (0-40)m/s,(0-2)Kpa,Optional | |
| Accuracy | ≤±5% | ||
| Humidity | Range | (0~40)Vol% | |
| Accuracy | ±2% | ||
| Data Acquisition And Processing Unit | Data Transmission Module | 8 Way Analog Input | |
| 1 Way Rs485 | |||
| Ipc | 6 Way Rs232 | ||
| Windows7 | |||
| Software | Vocs Monitoring Software V3.0 | ||
| Power Supply | Ac 220V,50Hz,≤7Kw | ||

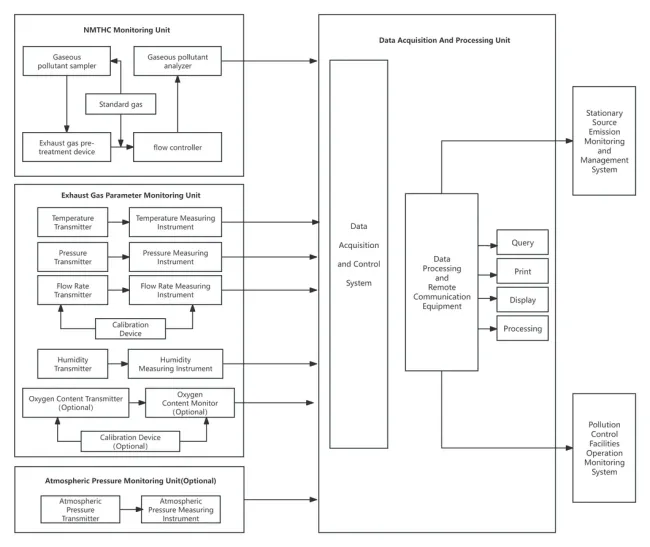

>>System composition
