NEMA 23 ISS57-2.8N·m 57x57x106mm integrated stepper servo motor with pulse/RS485/CANOpen control, 1.8Degree, 2.8N.m with 17bit encoder and integrated driver.

Please contact us for more different integrated servo motor requirements!!!

Physical Specifications:

• Frame Size: Nema23 (57x57mm)

• Body Length: 124mm

• Shaft Diameter: 8mm

• Shaft Length: 21mm

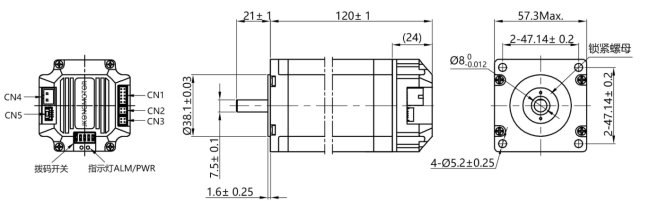

Integrated Stepper Motor Dimension:

Integrated Stepper Servo Motors Features:

• Cortex-M4 core high-performance 32-bit micro controller

• The highest pulse response frequency can reach 200KHz

• Built in protection function, effectively ensuring the safe use of the device

• Intelligent current regulation to reduce vibration, noise, and heat generation

• Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products

• Voltage range: DC12V-36V

• Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring

• Equipped with anti reverse connection function

Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type

      Waterproof type: IP30, IP54, IP65, optional

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
