Nema17 ISS42 Series 0.22~0.73N·m 42x42mm integrated stepper servo motor with pulse/RS485/CANOpen control, 1.8Degree, 0.22~0.73N.m with 17bit encoder and integrated driver.

Please contact us for more different integrated servo motor requirements!!!

Physical Specifications:

• Frame Size: Nema 17 (42x42mm)

• Body Length: 54~80mm

• Shaft Diameter: 5mm

• Shaft Length: 24mm

Communication method:

• Pulse type: ISS42-P

• RS485 MOdbus RTU network type: ISS42-R

• CANopen network type: ISS42-C

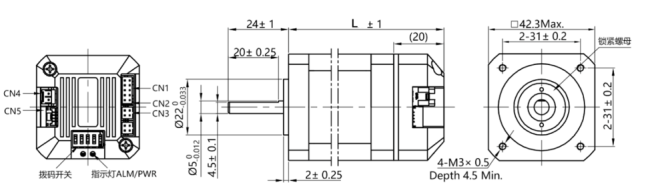

Integrated Stepper Motor Dimension:

Integrated Stepper Servo Motors Features:

• Cortex-M4 core high-performance 32-bit micro controller

• The highest pulse response frequency can reach 200KHz

• Built in protection function, effectively ensuring the safe use of the device

• Intelligent current regulation to reduce vibration, noise, and heat generation

• Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products

• Voltage range: DC12V-36V

• Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring

• Equipped with anti reverse connection function

      Waterproof type: IP30, IP54, IP65, optional

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
