Nema17 ISS57-0.45N·m 57x57x121mm integrated stepper servo motor with pulse/RS485/CANOpen control, 145W,  3000RPM, 0.45N·m with 17bit encoder and integrated driver.

Please contact us for more different integrated servo motor requirements!!!

Physical Specifications:

• Frame Size: Nema 23 (57x57mm)

• Body Length: 121mm

• Shaft Diameter: 8mm

• Shaft Length: 25mm

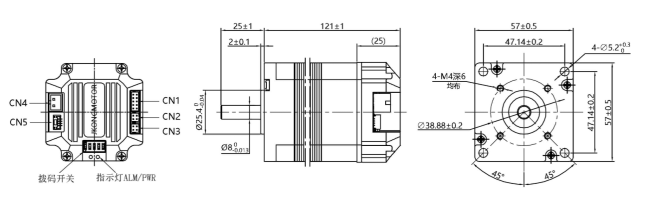

Integrated Stepper Motor Dimension:

Integrated Servo Motors Features:

• Adopting a new 32-bit M4+core with 120M or 240M main frequency

• Stable torque characteristics from low to high speeds, with high speed and precision

• Equipped with brake resistor interface to prevent damage to the electromechanical braking system

• Wide speed range, low temperature rise, and high efficiency

• Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

• Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

• Configure a 17 bit single turn absolute encoder

Communication method:

• Pulse type: IDS57-02P

• RS485 MOdbus RTU network type: IDS57-02R

• CANopen network type: IDS57-02C

      Waterproof type: IP30, IP54, IP65, optional

57mm Integrated Dc Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
