NEMA 24 Gear Reduction BLDC Motor With 60mm Square Flange And 2GN Geared Box
Price:
USD / pcs
MOQ:
5~10 pcs
Delivery Time:
3~4 weeks
Brand:
CKun Motor
Product Description
NEMA 24 Gear reduction BLDC motor with 60mm Square Flange And 2GN Geared Box
Our geared brushless dc motors with their matched controllers has feature of low-temperature rise, high efficiency, long life, low power consumption, low noise and low vibration.
Please contact us for more different integrated servo motor requirements!!!
Features:
- Rated power: 30 / 60 W
- Rated Voltage: 24VDC / 220 VAC
- Rated speed: 3000 rpm
- Gear Ratio: 3-200
- Flange size: 60 mm
- Other parameters can also be customized.
| Model | Flange Size(MM) | Motor Voltage
(V) |
Motor
Power (W) |
Rated Speed ( RPM) | Rated
torque (NM) |
Gear Ratio | Matched Driver |
| 2GNXK-60BLK0330-220-21AC | 60*60 | AC220V | 30W | 3000 | 0.1 | 3,4,5,6,7,9,10,12.5,15,18,20,25,30,36 | EHD200 |
| 2GNXK-60BLK0630-220-21AC | 60*60 | AC220V | 60W | 3000 | 0.2 | 3,4,5,6,7,9,10,12.5,15,18,20 | EHD200 |
| 2GNXK-60BLK0630-024-00DC | 60*60 | DC24V | 60W | 3000 | 0.2 | 3 ~ 200 | BLD-120 |

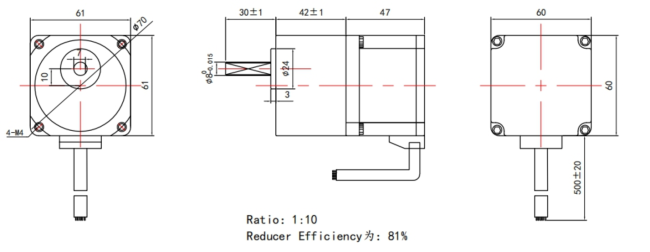

Integrated Stepper Motor Dimension:
Matched Driver:
