24VDC 3000rpm Gear Reduction DC Motor With 80mm Square Flange / 4GN Geared Box
Price:
USD / pcs
MOQ:
5~10 pcs
Delivery Time:
3~4 weeks
Brand:
CKun Motor
Product Description

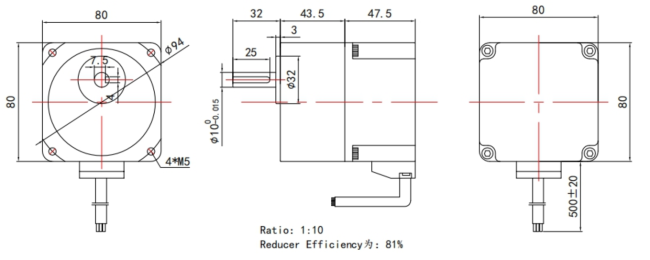

80 Gear reduction BLDC motor with 80mm Square Flange And 4GN Geared Box
Our geared brushless dc motors with their matched controllers has feature of low-temperature rise, high efficiency, long life, low power consumption, low noise and low vibration.
Please contact us for more different integrated servo motor requirements!!!
Features:
- Rated power: 60 / 120 W
- Rated Voltage: 24VDC / 220 VAC
- Rated speed: 3000 rpm
- Gear Ratio: 3-200
- Flange size: 80 mm
- Other parameters can also be customized.
| Model | Flange Size(MM) | Motor Voltage
(V) |
Motor
Power (W) |
Rated Speed ( RPM) | Rated
torque (NM) |
Gear Ratio | Matched driver |
| 4GNXK-80BLK0630-220-21AC | 80*80 | AC220V | 60W | 3000 | 0.2 | 3,4,5,6,7,9,10,12.5,15,18,20,25,30,36,50,60 | EHD200 |
| 4GNXK-80BLK1230-220-21AC | 80*80 | AC220V | 120W | 3000 | 0.4 | 3,4,5,6,7,9,10,12.5,15,18,20 | EHD200 |
| 4GNXK-80BLK1230-024-00DC | 80*80 | DC24V | 120W | 3000 | 0.4 | 3-200 | BLD-300 |
Matched Driver:
