Nema17 42x42mm 3 Phase 24V Brushless DC Gearmotor With Planetary Gearbox
Price:
USD / pcs
MOQ:
5~10 pcs
Delivery Time:
3~4 weeks
Brand:
CKun Motor
Product Description
Nema17 42x42mm 3 Phase 24V Geared Brushless Bldc Motor With Planetary Gearbox
Brushless DC motor, power: 26W ~ 105W, rated voltage: 24V, rated speed: 4000rpm, rated torque: 0.0625Nm ~ 0.25Nm
Optional parts: Gearbox, brake, encoder, integrated built-in drivers...
Please contact us for more different integrated servo motor requirements!!!
42BLF Series Brushless DC Motor:
| Model | Phase | Poles | Rated Voltage | Rated Speed | Rated Torque | Rated Current | Rated Power | Body Length | Rotor Inertia | Driver | Weight |
| Phase | Poles | Vdc | Rpm | N.m | A | W | mm | g.cm2 | / | Kg | |
| 42BLF40 | 3 | 8 | 24 | 4000 | 0.0625 | 1.8 | 26 | 40 | 24 | BLD-120 | 0.33 |
| 42BLF60 | 3 | 8 | 24 | 4000 | 0.125 | 3.3 | 53 | 60 | 48 | BLD-120 | 0.45 |
| 42BLF80 | 3 | 8 | 24 | 4000 | 0.185 | 4.8 | 78 | 80 | 72 | BLD-120 | 0.65 |
| 42BLF100 | 3 | 8 | 24 | 4000 | 0.25 | 6.3 | 105 | 100 | 96 | BLD-120 | 0.80 |
High Precision Planetary Gearbox:
| Model | / | JK-HPS42-L1 | JK-HPS42-L2 | JK-HPS42-L1SW | JK-HPS42-L2SW | |||||||||||||||||||||||
| Gear Ratio | / | 4 | 5 | 7 | 10 | 16 | 20 | 25 | 28 | 30 | 35 | 40 | 45 | 50 | 70 | 4 | 5 | 7 | 10 | 16 | 20 | 25 | 28 | 30 | 35 | 40 | 50 | 70 |
| Gear Trains | / | 1 | 2 | 1 | 2 | |||||||||||||||||||||||
| Gearbox Length | mm | 60 | 71 | 75 | 86 | |||||||||||||||||||||||
| Rated Torque | N.m | 9 | 9 | 5 | 5 | 12 | 12 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 9 | 9 | 5 | 5 | 12 | 12 | 10 | 10 | 12 | 10 | 10 | 10 | 10 |
| Sundden Stop Torque | N.m | 18 | 18 | 10 | 10 | 24 | 24 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 10 | 10 | 24 | 24 | 20 | 20 | 24 | 20 | 20 | 20 | 20 |
| Back Lash | arcmin | ≤15 arcmin | ≤20 arcmin | ≤15 arcmin | ≤20 arcmin | |||||||||||||||||||||||
| Efficiency | % | 96 | 94 | 96 | 94 | |||||||||||||||||||||||
| Suitable Motor Dimension | mm | Φ5-10 / Φ22-2 / F31-M3 | Φ5-24 / Φ22-2 / F31-M3 | |||||||||||||||||||||||||
| Rated Input Speed | rpm | 3000 | ||||||||||||||||||||||||||
| Max Input Speed | rpm | 6000 | ||||||||||||||||||||||||||
| Average Life Span | h | 20000 | ||||||||||||||||||||||||||
| Axial Force | N | 100 | ||||||||||||||||||||||||||
| Radial Force | N | 300 | ||||||||||||||||||||||||||
| Noise | dB | ≤55 | ||||||||||||||||||||||||||
| Protection Level | IP | IP54 | ||||||||||||||||||||||||||
| Work Temp. | ℃ | -20 to + 150 | ||||||||||||||||||||||||||
| Out Shaft Type | / | Key Shaft Type | ||||||||||||||||||||||||||

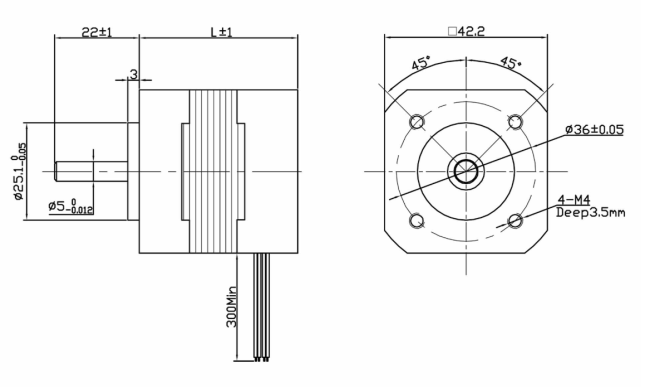

Integrated Stepper Motor Dimension:
Matched Driver:
