Nema 23 1.8 Degree Stepper Motor 2 Phase Hybrid Stepper Motor With Gearbox
Nema 23 1.8 Degree Stepper Motor With Gearbox
A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.
Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to convert direct current into time-sharing power supply, multi-phase sequential control current, use this current to power the stepper motor, the stepper motor can work normally. The driver is a time-sharing power supply for the stepper motor, a multi-phase sequential controller.

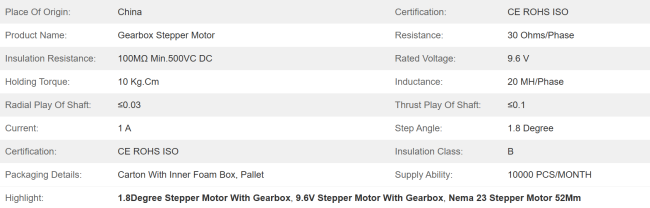

Electrical Specification:
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 9.6 |
| CURRENT | A/PHASE | 1 |
| RESISTANCE | Ω/PHASE | 9.6 |
| INDUCTANCE | mH/PHASE | 20 |
| HOLDING TORQUE | Kg.cm | 10 |
| INSULATION CLASS | B | |

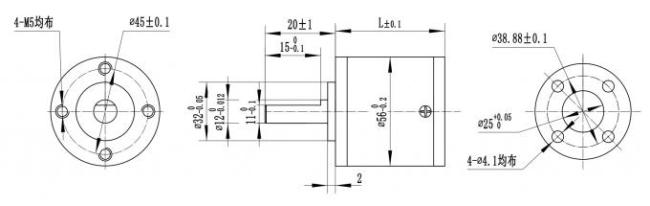

GEARBOX Electrical Specification
Out diameter 56mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤450 | ≤200 | ≤1000 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% |
Length L (mm) |
Weight(g) | Number of gear trains |
| 1/4 | 2.0 | 6.0 | 81% | 41.3 | 491 | 1 |
| 1/6 | ||||||
| 1/15 | 8.0 | 25 | 72% | 59.6 | 700 | 2 |
| 1/18 | ||||||
| 1/26 | ||||||
| 1/47 | 16 |
50
|
72% | 59.6 | 700 | 2 |
| 1/66 |

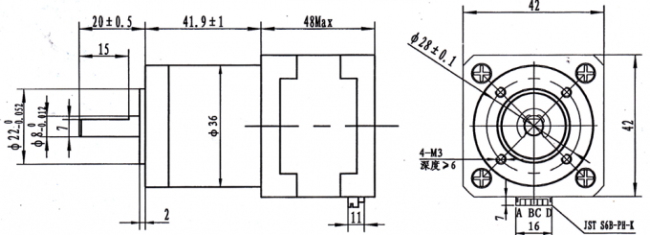

Mechanical Dimension
