Replace traditional AC gear motors with a compact NEMA24 brushless DC gear motor. High efficiency, low heat, constant torque, precise speed control and maintenance-free operation. Custom gear ratios and voltages available.
Our NEMA24 Brushless DC Gear Motor is designed as a modern replacement for traditional AC gear motors and AC speed control motors.
Compared with conventional AC induction geared motors, the brushless gear motor offers:
- Higher efficiency
- Lower operating temperature
- Constant torque over a wide speed range
- More accurate speed regulation
- Longer service life
- Smaller installation size
- Maintenance-free operation
The motor adopts an 8-pole three-phase brushless design with a precision gear reducer, making it suitable for conveyor systems, packaging machines, food equipment, textile machinery, medical equipment, automatic doors, AGV systems and industrial automation.
Available gearboxes include 2GN, 3GN, 4GN and customized reduction ratios.

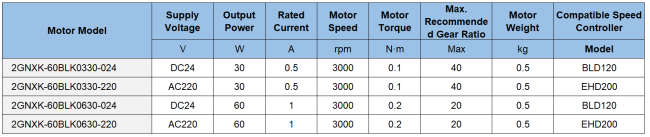

NEMA24 60mm Motor Model and Parameter
Table torque values are motor raw torque, not actual output torque. Weight is motor-only mass; total mass with reducer: 1.0 kg.
Reduced output torque = Motor Torque × Gear Ratio × Efficiency
Rated Output RPM = 3000 / Gear Ratio
Min Output RPM = 1500 / Gear Ratio

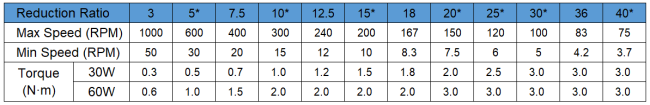

NEMA24 60mm Gearbox Reducer - 2GN Series
Table speeds = average motor speed ÷ reduction ratio. Actual speed changes under different loads.
* Marked integer ratio models are standard; other ratios are custom types. Unlisted ratios can be customized.
Why Replace Traditional AC Gear Motors?
| AC Gear Motor | Brushless DC Gear Motor |
|---|---|
| Large size | Compact size (up to 40% smaller) |
| Lower efficiency | High efficiency |
| High heat generation | Low temperature rise |
| Speed drops under load | Constant speed with closed-loop control |
| Poor low-speed torque | High torque even at low speed |
| Mechanical speed adjustment | Electronic precision speed control |
| Limited control functions | PLC, PWM, Analog, RS485 available |
| Frequent maintenance | Maintenance-free |
| Brush wear (if applicable) | Brushless long lifetime |
| Difficult synchronization | Easy multi-motor synchronization |
Applications
- Conveyor Systems
- Packaging Machines
- Textile Machinery
- Printing Equipment
- Food Processing Machines
- Medical Equipment
- Laboratory Automation
- Pharmaceutical Equipment
- Vending Machines
- AGV Robots
- Smart Warehouses
- Solar Tracking Systems
- Automatic Doors
- Industrial Automation
- Agricultural Machinery
FAQ
Can this motor replace an AC gear motor?
Yes. The NEMA24 BLDC gear motor is designed to replace traditional AC speed control motors while providing higher efficiency, lower noise and more accurate speed regulation.
Does the motor maintain torque at low speed?
Yes. Unlike conventional AC induction motors, the brushless motor maintains stable torque throughout the speed range when paired with the appropriate controller.
What gear ratios are available?
2GN and customized gear ratios are available.
Can it be customized?
Yes.
We provide customization for:
- Voltage
- Shaft
- Gearbox
- Speed
- Torque
- Cable Length
- Connector
- Mounting
