Customized High Gain GNSS Antenna Magnetic Mount For GPS And GLONASS Systems
Hing can customize GNSS dual-mode high-gain FAKRA vehicle SMA universal external GPS antenna BN-143AJ
Shenzhen Hing Technology Co., Ltd was established in 2016. The company is an original manufacturer of Beidou positioning GPS modules and GPS antennas, integrating research and development, production, and sales. The company is located in Shenzhen, Guangdong, covering an area of approximately 6000 square meters. Products include: GPS antenna, GNSS antenna, RTK antenna, Beisan RDSS antenna, GPS module, GNSS module, board, GNSS receiver, Beidou module.
Table of parameters:
1．Characteristics of Ceramic Antenna
|
Item |
Specification |
|
Range Of Receiving Frequency |
GPS L1:1575.42MHz GLONASS L1:1602MHZ |
|
Gain |
2dBi |
|
Output VSWR |
<1.5 |
|
Impendance |
50Ω |
|
Polarization |
RHCP |
|
Axis ratio |
<3dB |
|
Horizontal coverage angle |
360° |
|
Frequency Temperature Coefficient |
0±10 |
2．LNA Specification
|
Item |
Specification |
|
LNA Gain |
28±2dB |
|
Noise figure |
<2dB(Only LNA) |
|
Output VSWR |
<1.5 |
|
Output impedence |
50Ω |
|
Passband Ripple |
±2.0dB(Only LNA) |
|
Supply Voltage |
2.8V-5.0V |
|
Supply Current |
≤20mA |
3．Work environment
|
Item |
Specification |
|
Operational Temperature |
-40℃ - +85℃ |
|
Storage Temperature |
-40℃ - +85℃ |
|
Wet degree |
40% - 95% |

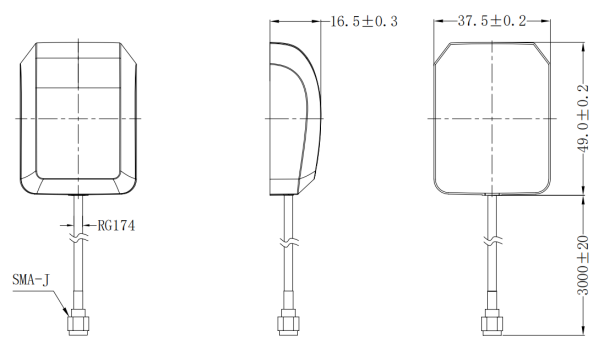

4．Structural characteristics
|
Item |
Specification |
|
Size |
49*37.5*16.5mm |
|
Weight |
＜105g |
|
Mounting |
Magnetic Bottom |
|
Connector |
SMA-J |
|
Cable |
RG174 |
|
Length |
3m |
