Industrial Secondary Cable For Resistance Spot Point Welding Machine
Price:
$50-80 / set
MOQ:
5 sets
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
Dedicated, so professional; Winning by quality, precision to thrive
Product Description
Secondary cable has a small bending radius, low disturbance resistance, and is installed at the tail of the welding clamp, increasing the operability of the welding clamp and reducing labor intensity. It is generally shorter in length and has low maintenance costs.
Technical Parameters
|
Item/Cross Section
|
150 mm²
|
200mm²
|
|
|
Length
|
0.6m-1.2m
|
|
|
|
Materials
|
Red Copper+Rubber
|
|
|
|
Customization
|
Yes
|
|
|
Main Features
1. Terminal performance: Made of high-purity copper material with a one-time forging process to improve its high conductivity. 2. Conductive structure: The wire core is made of high-purity red copper rods, which are drawn into single wires and tinned before being twisted together. Overcoming the drawbacks of traditional cable conductors such as fuzzing, breakage, and breakage, low impedance and high power have been achieved. 3. Joint welding technology: New high-temperature welding technology has been introduced, which is resistant to high temperature, low resistance value, and high conductivity, avoiding the phenomenon of breakage and detachment caused by high current impact in general brazing. Non welding cables have been developed, which are connected to wires through pressure to improve their service life. 4. Rubber sleeve: Special pipes with high rubber content, softness, wear resistance, and heat resistance are used, which have good elasticity, flexibility, and rich color. 5. Pipe clamp: Made of stainless steel sleeve and pressed by hydraulic locking machine, it has a longer service life and is more beautiful than traditional stainless steel belt locking.

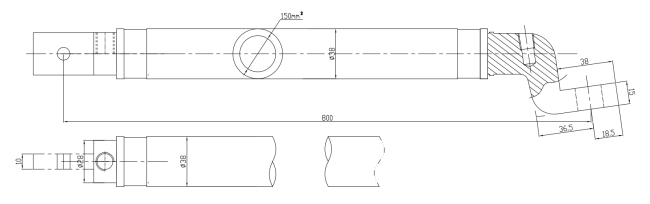

Standard Drawing
Cross Section 150mm²
Besides standard models, we can customized according to your requirements. More details, please contact!

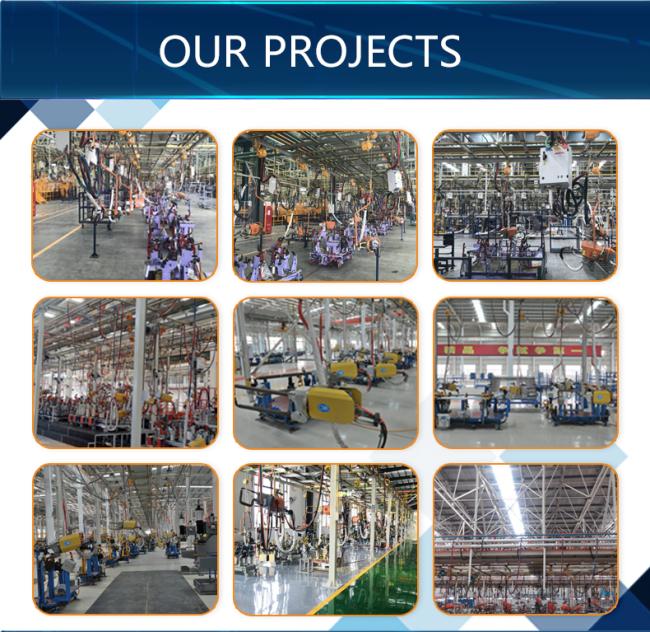

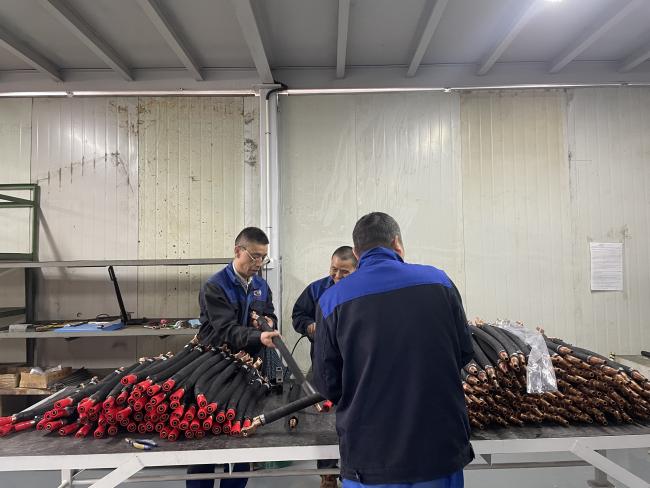

Scene images

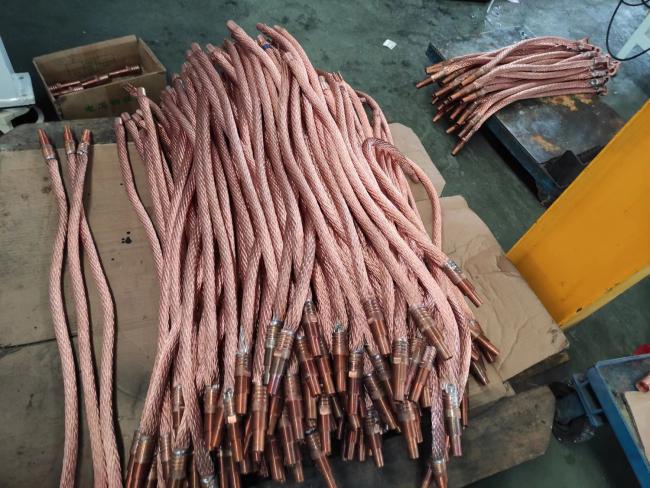

Raw Materials: Pure Red Copper

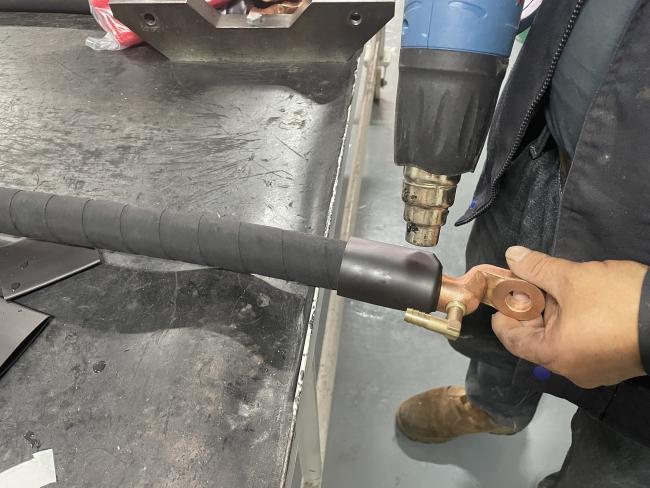

Careful Protection :Additional Rubber Sleeve

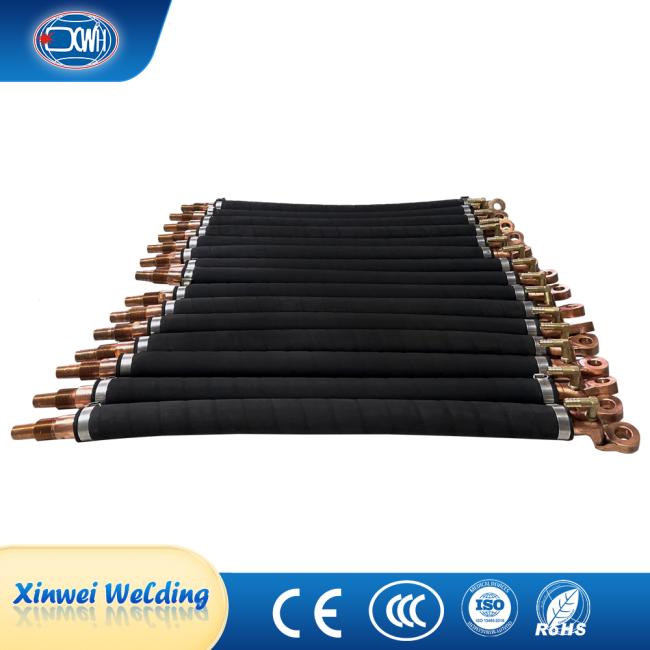

Finished Product
