Hand 200 Kva Industrial Mfdc High Frequency 100Kva Dc Spot Welder Welding Machine Spot Welders Copper
Price:
$14,000-24,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
XinWeiHan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

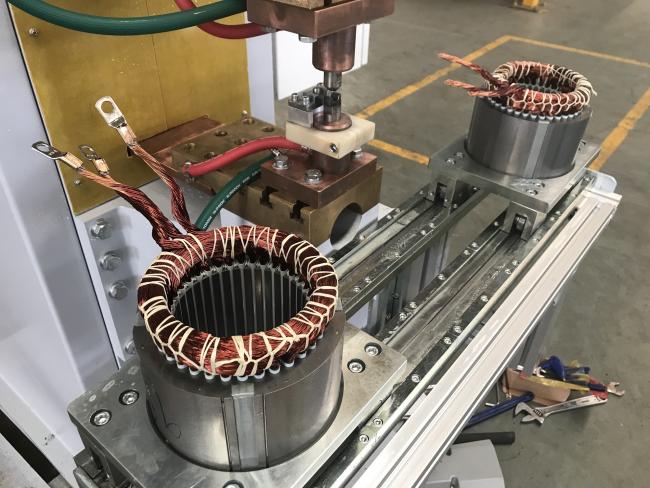

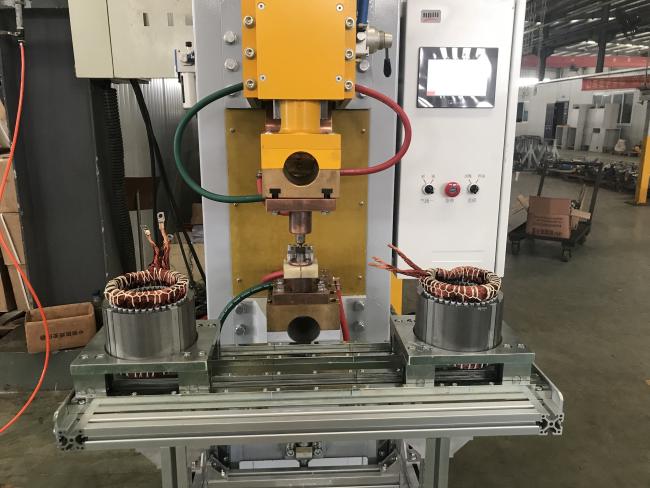

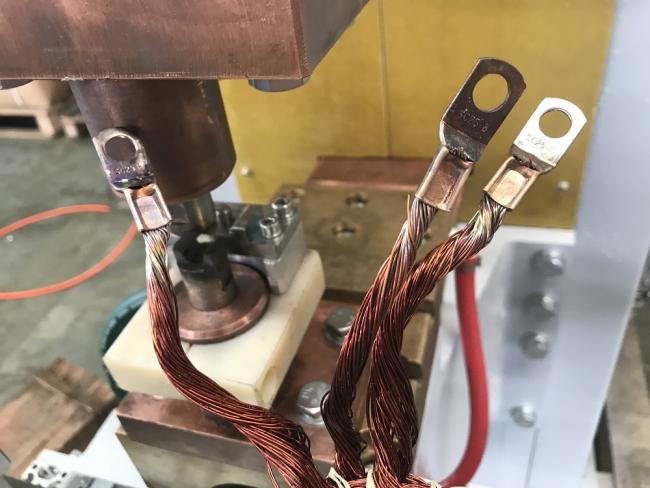

Standard fixed spot welding machines is mainly used for welding low-carbon steel, coated steel plates, stainless steel, and aluminum plates, and can also weld standard parts and components. And the welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
Item/Model | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
Rated power At 50%(KVA) | 40 | 63 | 80 | 100 |
Rated primary power(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. Short Circuit Current （KA） | 30 | 35 | 40 | 45 |
Duty cycle（%） | 50 | 50 | 50 | 50 |
Max. Force（N） | 6000 | 6000 | 10000 | 15000 |
Electrode Length（ mm） | 450 | 450 | 450 | 500 |
Working Stroke（ mm） | 80 | 80 | 80 | 80 |
Cooling consumption（L/min） | 20 | 20 | 20 | 20 |
Max. Welding Capacity（mm) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Main Features
1.The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.

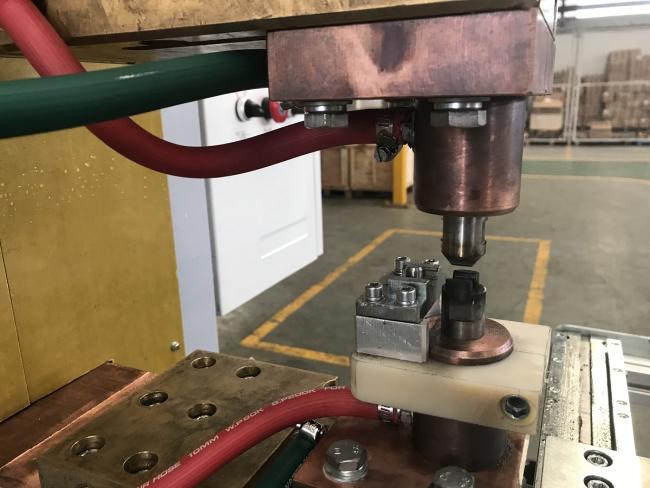

2.The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.
3.Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.
4.The fixed spot welder can weld plate, nut, steel bar, metal wire, etc.
Detail Images

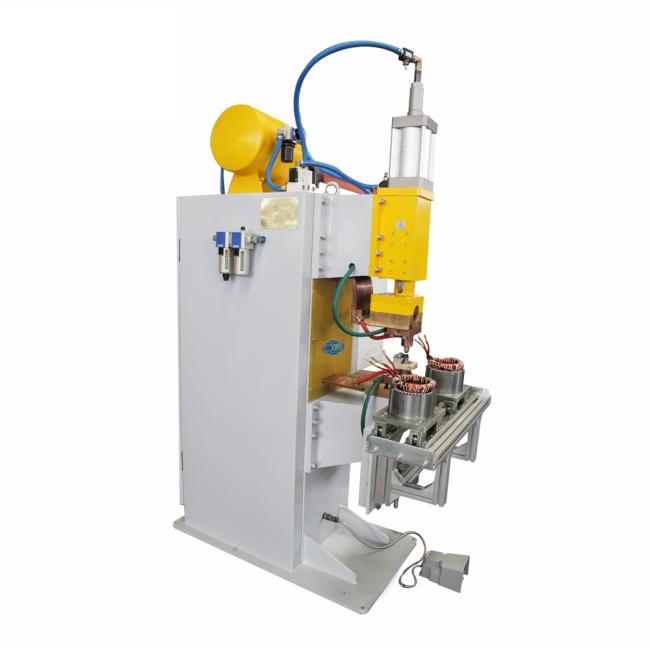

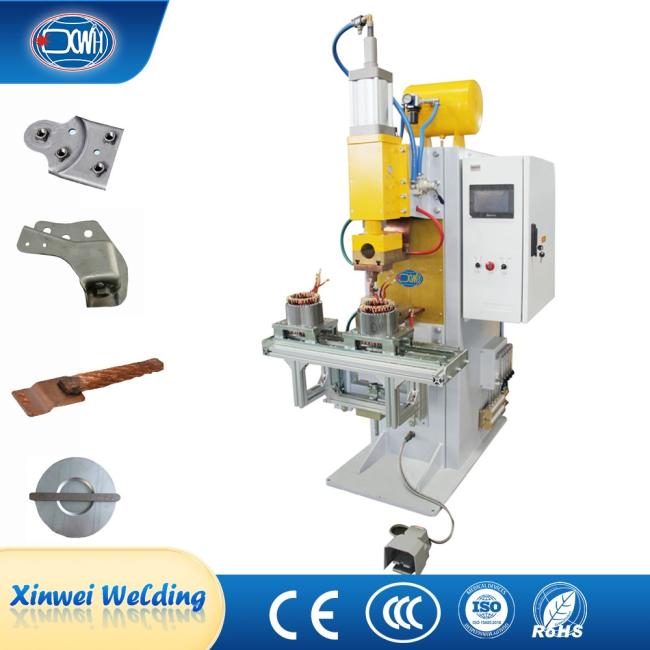

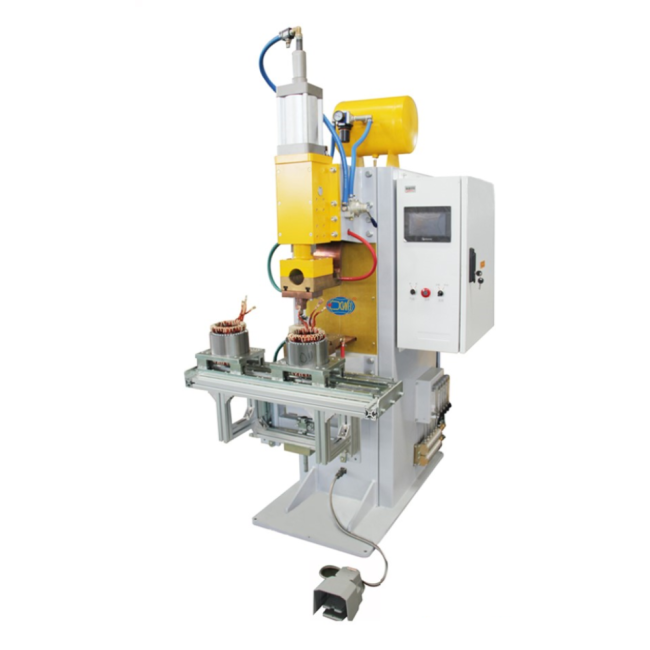

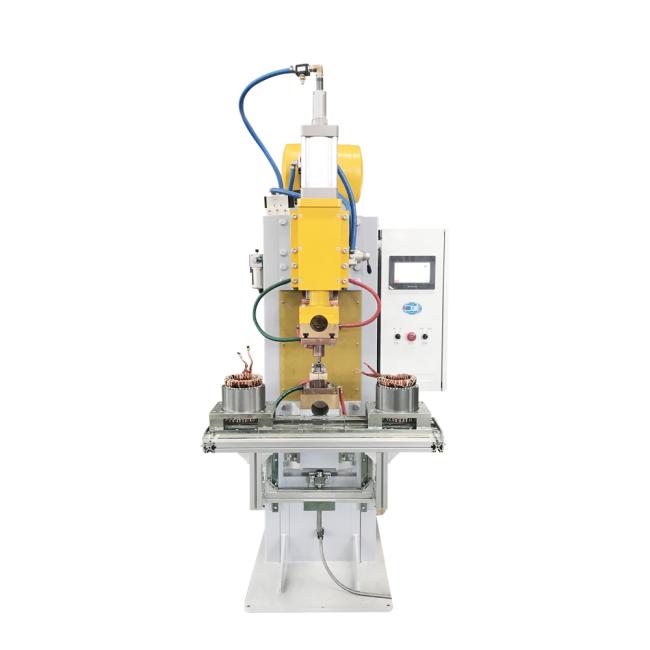

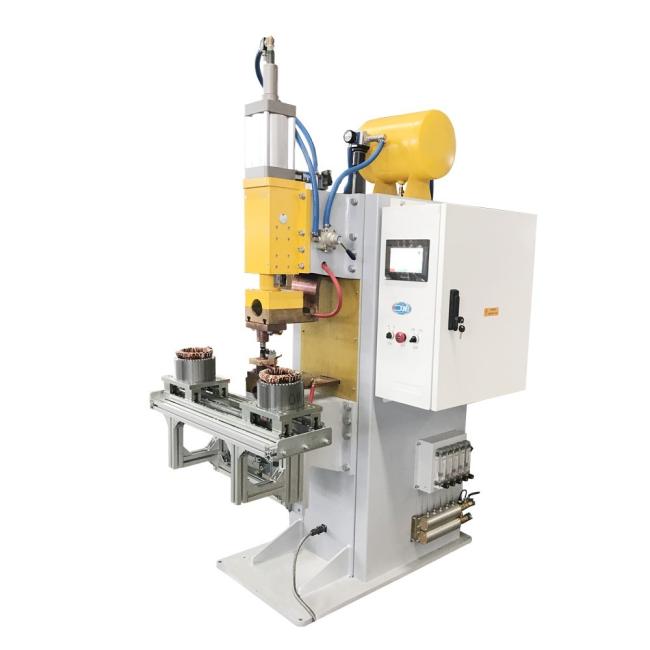

Different Angles of Product
More details, please contact!
