Top 10 Quality Welding Equipment Dc Welders Industrial Copper Wire Spot Welding Welder Machine for Sale
Price:
$14,000-24,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
XinWeiHan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

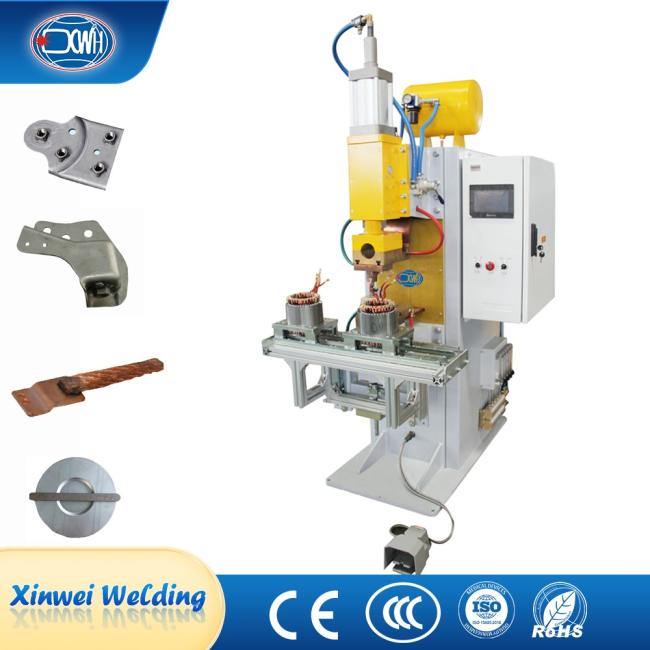

Copper wire welding machine is a projection spot welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment where the machine is stationary and the workpiece moves. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
Item/Model | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
Rated power At 50%(KVA) | 40 | 63 | 80 | 100 |
Rated primary power(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. Short Circuit Current （KA） | 30 | 35 | 40 | 45 |
Duty cycle（%） | 50 | 50 | 50 | 50 |
Max. Force（N） | 6000 | 6000 | 10000 | 15000 |
Electrode Length（ mm） | 450 | 450 | 450 | 500 |
Working Stroke（ mm） | 80 | 80 | 80 | 80 |
Cooling consumption（L/min） | 20 | 20 | 20 | 20 |
Max. Welding Capacity（mm) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Main Features
(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;
(2) The upper electrode moves vertically up and down, and has a smooth adjusting working stroke and auxiliary stroke. The lower electrode can be adjusted in a vertical direction;
(3) The straight solenoid valve is adopted to accelerate the reaction speed, greatly improve the operating speed of the upper head, and reduce the air flow loss;
(4) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;
(5) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;
(6) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;
(7) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;
(8) The operation is controlled by foot switch, with high production efficiency and low labor intensity.

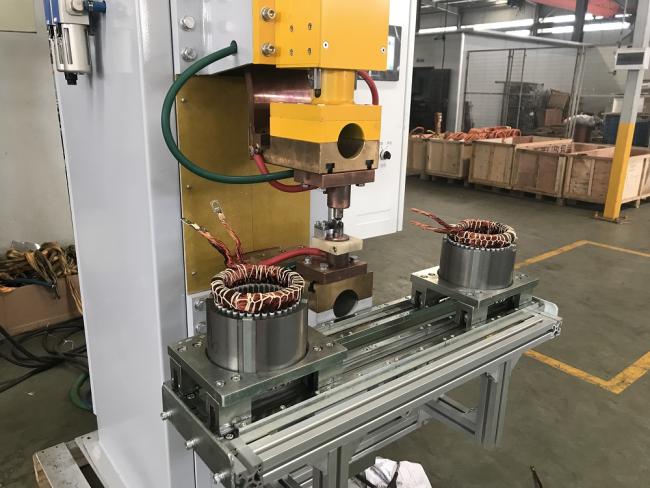

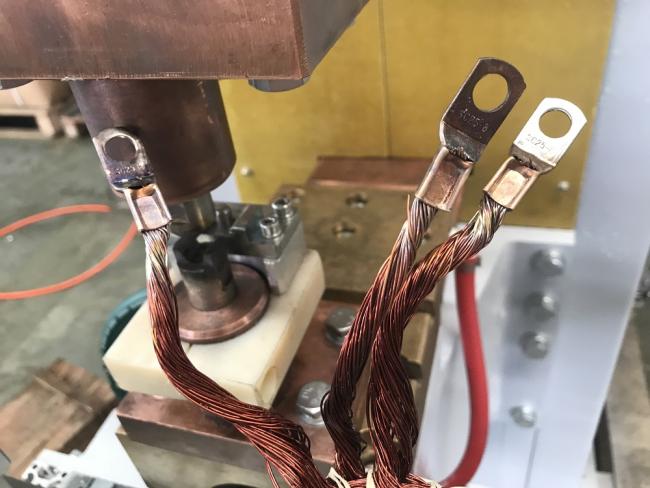

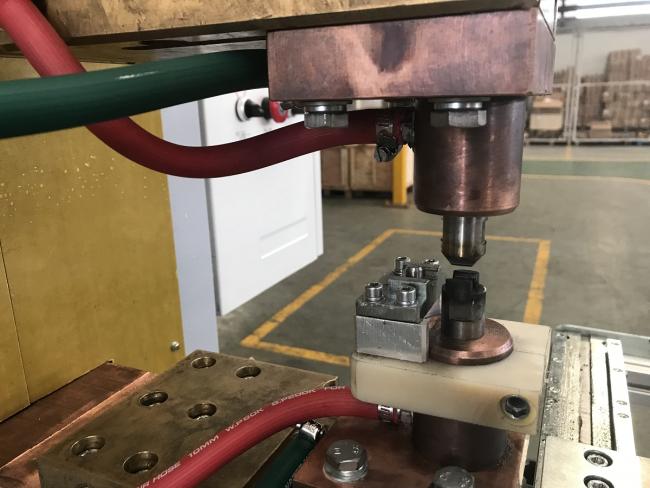

Detail Images

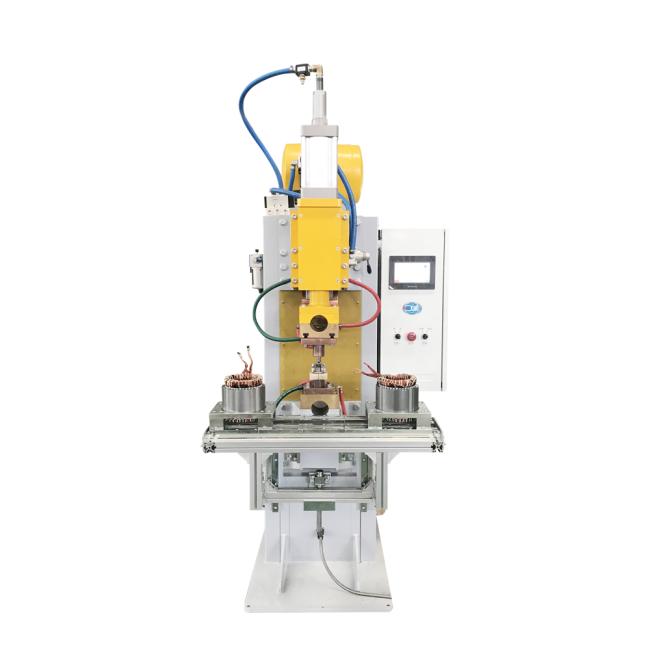

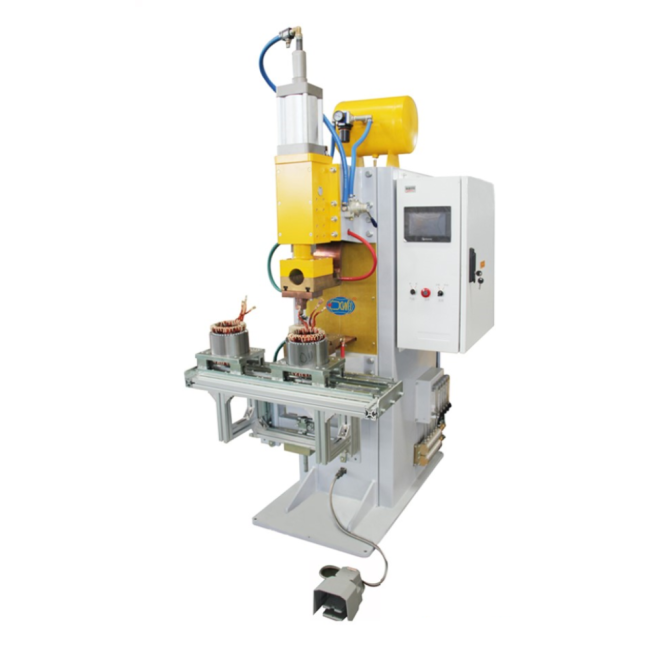

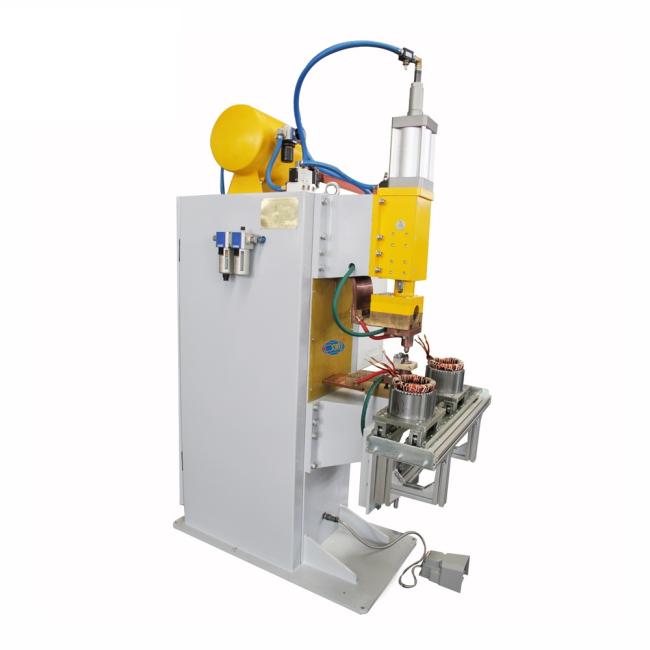

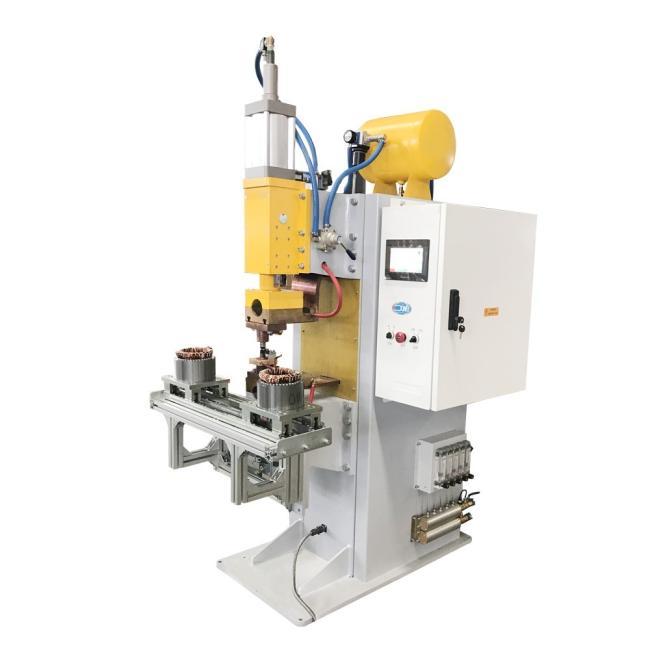

Different Angles of Product
More details, please contact!
