Sheet Metal Pneumatic Stationary Spot Welding Machine for Nuts and Bolts
5500

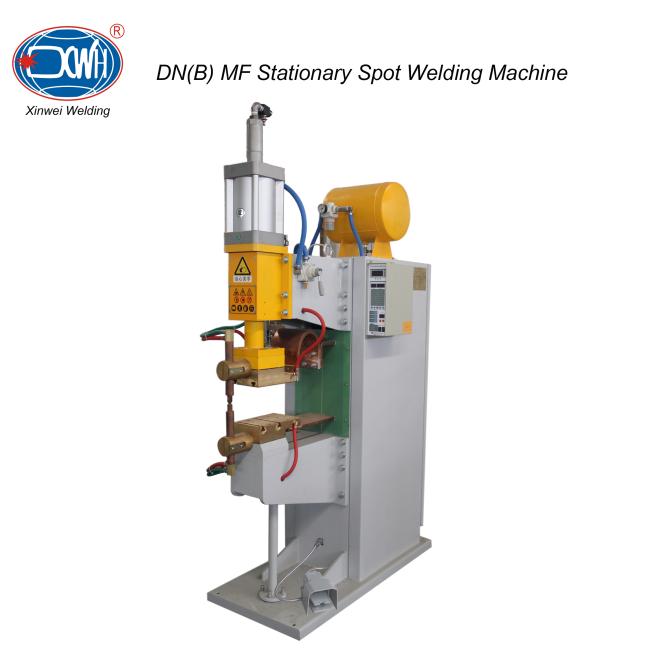

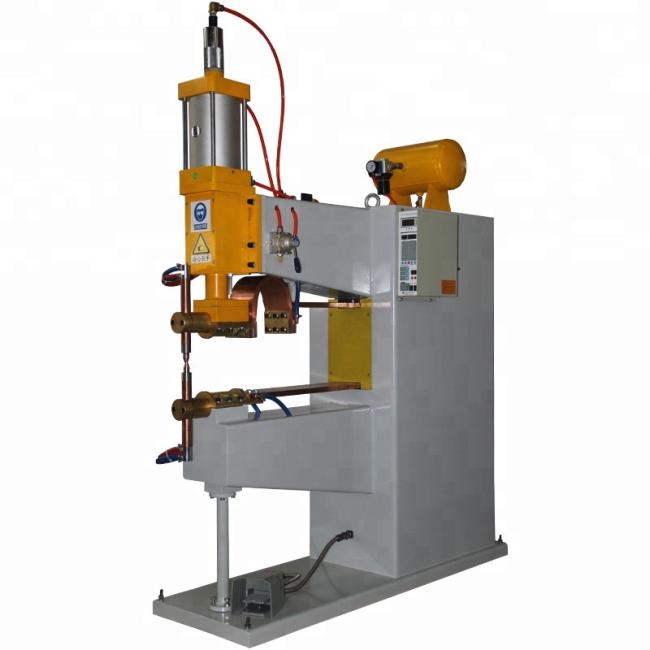

D(T)N Series Stationary Spot Welding Machine

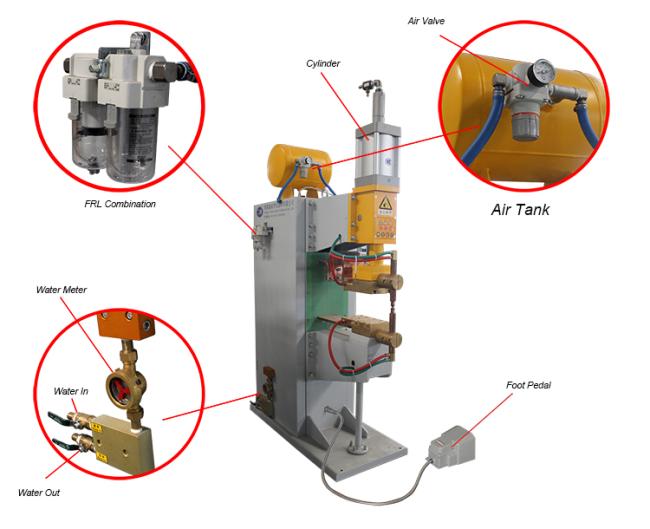

Main Features
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic; the inner water-cooled by force; stronger power and high duty ratio.

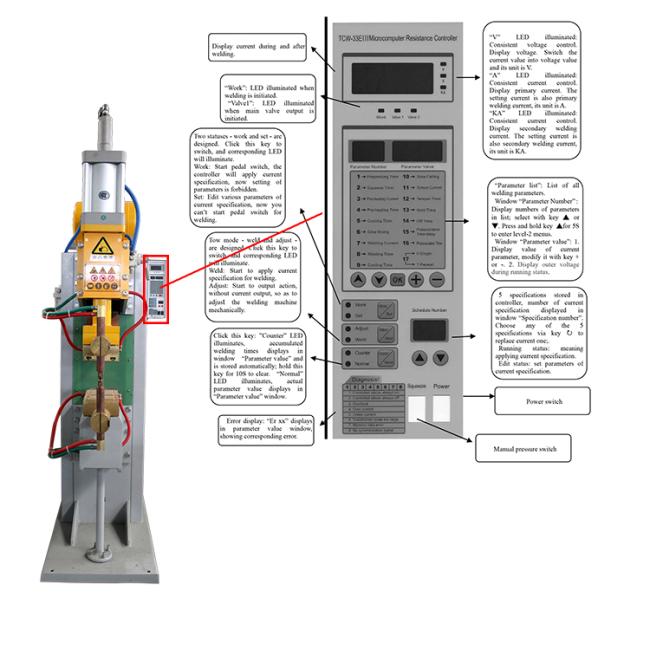

3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely applicable to automobile manufacturing, production of house applications,, hardware fittings and so on.
Specifications
|
MODEL Item |
Unit |
DN-40 |
DN-63 |
D(T)N-80 |
D(T)N-100 |
D(T)N-125 |
D(T)N-160 |
D(T)N-200 |
|
Rated power At 50% |
KVA |
40 |
63 |
80 |
100 |
125 |
160 |
200 |
|
Rated primary power |
V |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
|
Secondary Voltage |
V |
5.2 |
6.7 |
7.9 |
8.3 |
8.6 |
9.1 |
10.6 |
|
Rated frequency |
HZ |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
Max.Short Circuit Current |
KA |
14 |
15 |
16 |
18 |
20 |
28 |
34 |
|
Max. weld power |
KVA |
62 |
86 |
170 |
280 |
300 |
330 |
410 |
|
Throat |
MM |
500 |
500 |
630 |
630 |
630 |
630 |
630 |
|
Max.Froce at electrodes |
N |
6000 |
6000 |
10000 |
10000 |
10000 |
12000 |
12000 |
|
Electrodes tlp |
MM |
Φ13*45 |
Φ13*45 |
Φ16*45 |
Φ16*45 |
Φ16*45 |
Φ20*45 |
Φ20*45 |
|
Arms |
MM |
Φ50*150 |
Φ50*150 |
Φ80*220 |
Φ80*220 |
Φ80*220 |
Φ80*220 |
Φ80*220 |
|
Projection Clamping Plate |
MM |
125*125 |
125*125 |
200*200 |
200*200 |
200*200 |
200*200 |
200*200 |
|
Max.Welding |
MM |
2.5+2.5 |
3+3 |
4+4 |
4.5+4.5 |
5+5 |
5+5 |
6+6 |

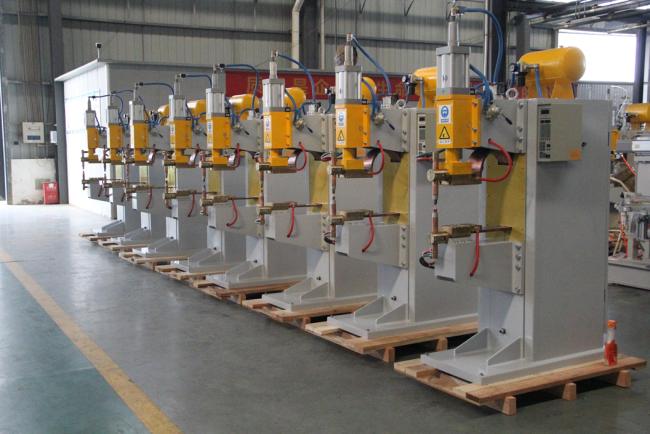

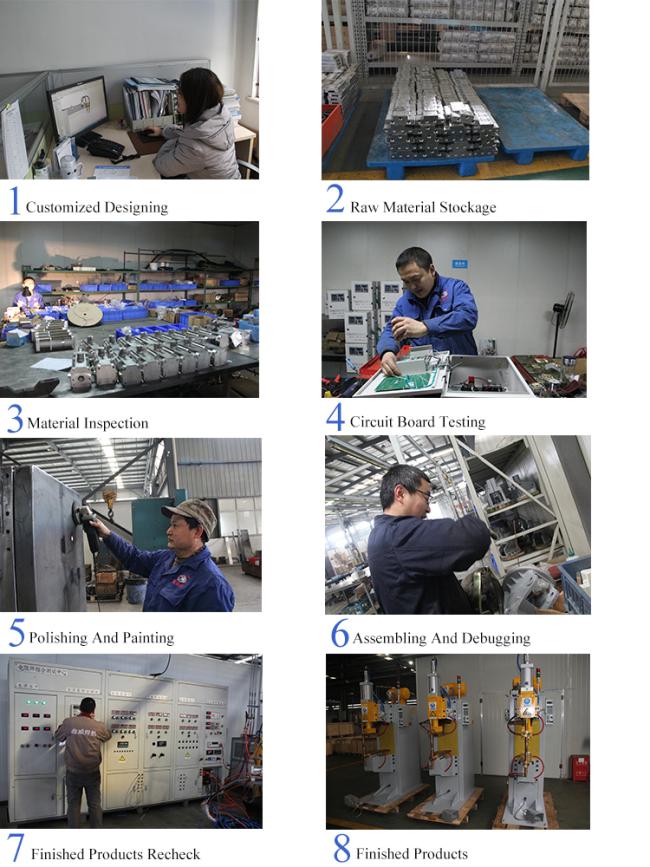

Production Process
Related Products

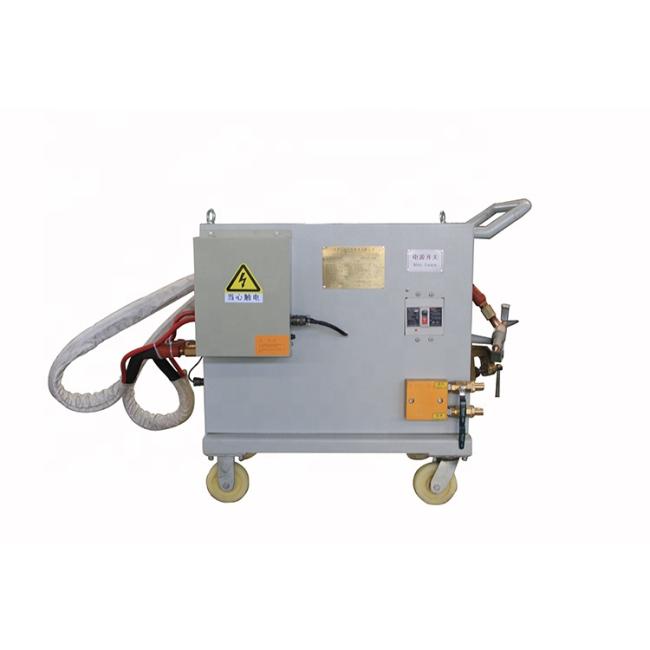

Stationary Welding Machine MF Portable Spot Welding Machine Single Spot Welding Machine
