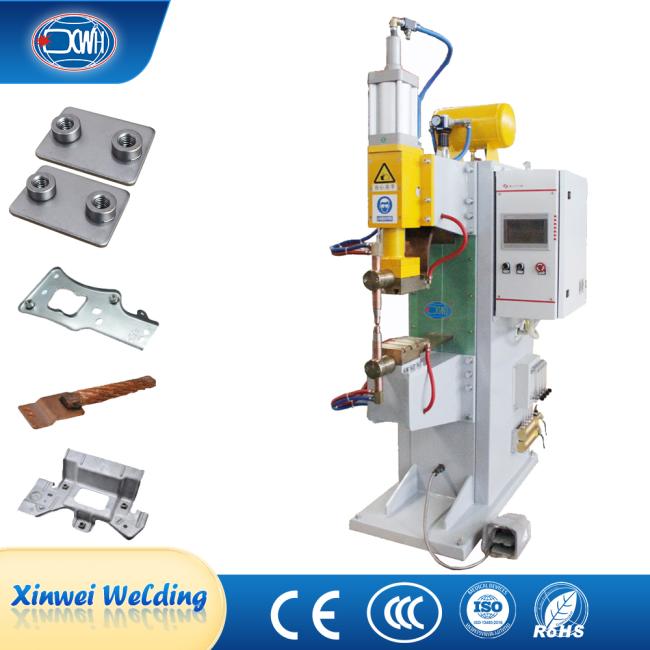

Customized Mf Stationary Aluminum Steel Spot Welding Machine for Sale
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V |
3φAC 380V |
3φAC 380V |
3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( mm) | 450 | 450 | 450 | 500 |
| Working stroke( mm) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(mm) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
-
When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
-
Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
-
Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
-
What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
-
What your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
-
How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
