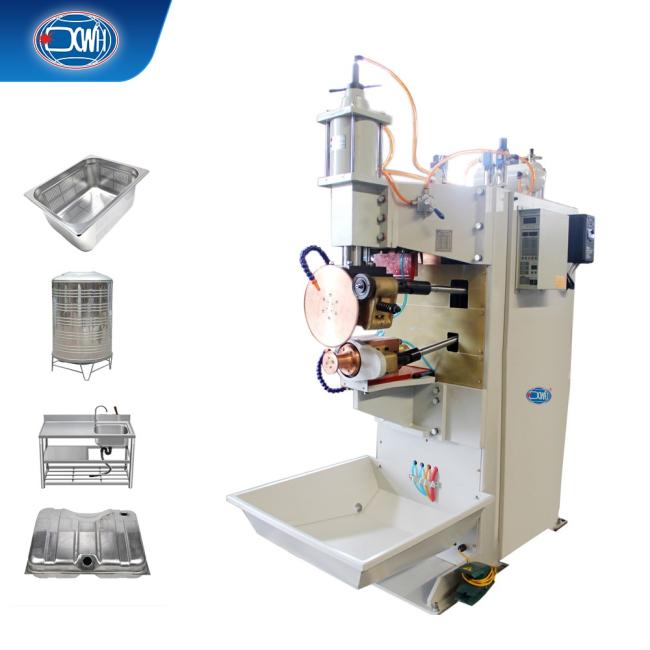

The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.
Horizontal Longitudinal Resistance Welder Low Carbon Steel Filter Drums Rollers Cartridge Automatic Rolling Seam Welding Machine
Price:
$12,000-13,000 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Overview
Horizontal Longitudinal Resistance Welder Low Carbon Steel Filter Drums Rollers Cartridge Automatic Rolling Seam Welding Machine
In the field of filter equipment manufacturing, the automatic filter drum seam welding machine is a key production equipment, specifically designed for the round welding of low-carbon steel filter drums. This equipment ensures welding accuracy and stability through a "welding machine moving and workpiece stationary" approach. The operator only needs to insert the board and start it with both hands to automatically complete the entire process of material transfer, mold forming, pneumatic pressurization, controllable current welding, and unloading. The equipment has a compact structure, reliable performance, and welding thickness suitable for 0.5-1.5 mm plates, greatly simplifying the drum processing flow and improving production capacity and product consistency. It is a reliable partner for the filtration industry to achieve efficient and energy-saving production.
Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Main Features
1. Programmed automatic molding: By controlling the solenoid valve and molding cylinder through a preset program, the mold is driven to move precisely in sequence, and the flat plate is automatically rolled into a cylinder, achieving automation and standardization of the molding process.
2. Servo driven precision rolling welding: using servo motors to accurately control the walking speed and position of the electrode wheel, combined with adjustable welding current, to achieve precise control of the weld trajectory and penetration depth.
3. Full cycle automatic control: Integrated "forming pressure welding unloading" full process automatic control, each stage is executed by solenoid valves, cylinders, thyristors, and servo systems in coordination, reducing the influence of human factors.
4. Intelligent human-machine collaboration: Human labor is only responsible for feeding and manual start-up, while the equipment automatically executes all subsequent complex processes, fully utilizing automation efficiency while ensuring safety, and achieving efficient human-machine collaboration.
General Strctures
Fully automated process integration
From manual start, automatic displacement, pneumatic forming, pressure positioning, servo roll welding to automatic unloading, it achieves a continuous operation cycle of "manual loading and automatic completion", greatly reducing manual intervention.
Cylinder
The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
Gas Storage Tanks
The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

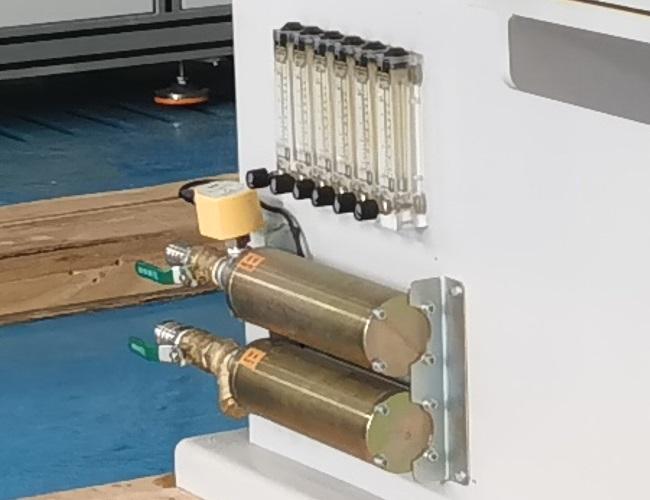

Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Application
Scene images
More details, please contact!

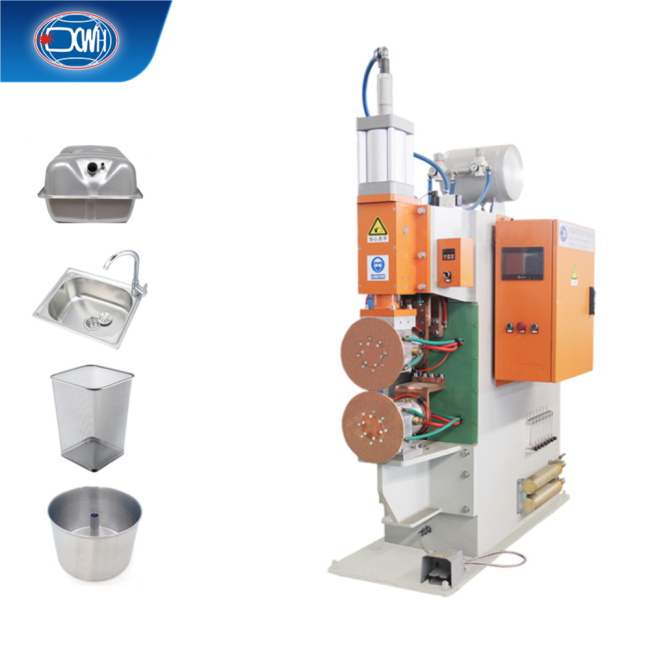

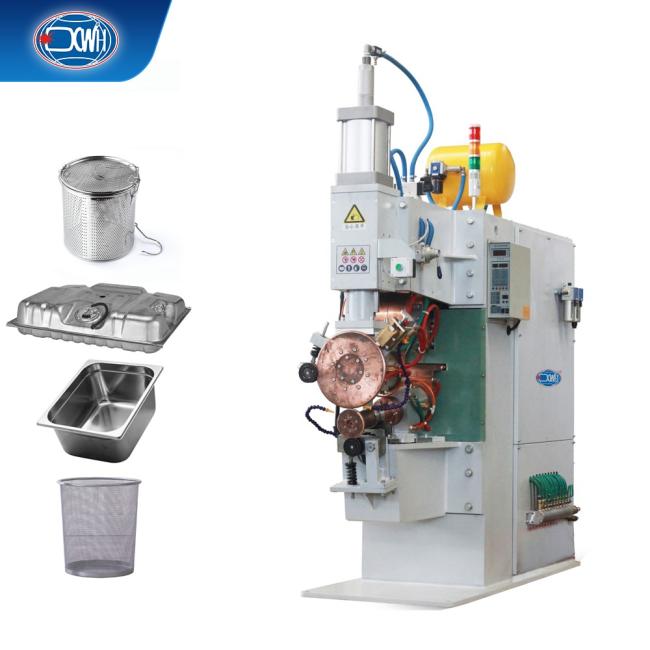

Multi Types Of Seam Welders
Similar Product

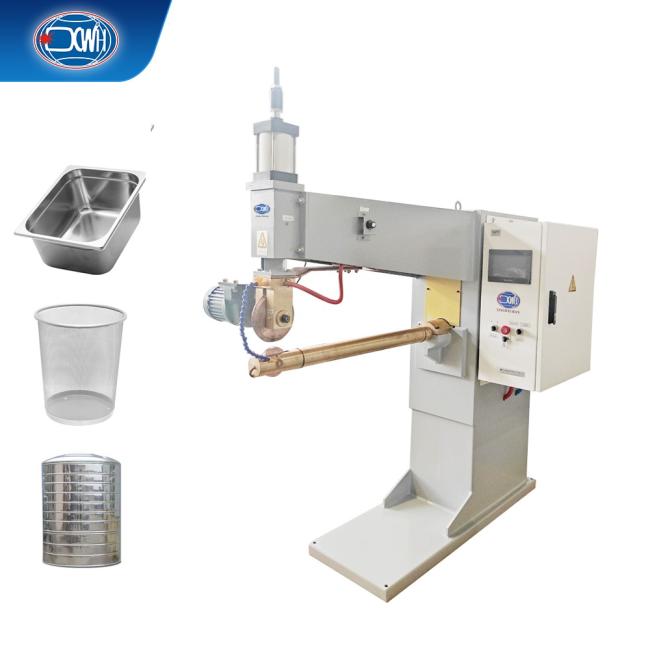

Horizontal Automatic Seam Welding Machine
